OnSite 2620 High Speed, T1/E1 Dual-Port WAN Router with Drop & Insert

The Patton Model 2620 Dual-Port E1 IPLink Router makes it easy to link up for less by combining two E1 and four 10/100 Ethernet ports to concurrently deliver DS0 drop and insert between WAN ports, and route or bridge IP traffic on one.

The Model 2620 Dual-Port E1 Router is designed to be a versatile access router supporting both drop and insert E1 applications as well as IP data applications for additional WAN bandwidth.

Combining ease-of-use with a full suite of LAN/WAN routing features, the Model 2620 provides selectable bridging or routing functionality along with advanced IP features such as NAT/NAPT, DNS relay, and DHCP server and relay. Numerous firewall features including the ability to filter by IP address and by IP port, support for Intrusion Detection (IDS), and the capability of “blacklisting” offending traffic flows likewise come standard with the unit.

A complete set of configurable FR/PPP/IP WAN protocols allow a wide range of choices when connecting equipment via common WAN services. By supporting the latest version of PPP/BCP, the IPLink transparently negotiates the passing of VLAN traffic. Deployments can also, take advantage of the Model 2620’s full implementation of Frame Relay to support Frame Relay Virtual Private Network deployments over switched carrier networks.

The Model 2620 boasts easy installation offering Console/VT-100, Telnet, and HTTP/SNMP management options. All IPLink Routers come with a four port auto-sensing full-duplex 10/100Base-T Ethernet switch, the choice of internal or external power supply and one or two E1 WAN ports with built-in CSU/DSU.

Patton’s series of high-speed access routers offer the versatility and reliability demanded for business-class applications at the most affordable price.

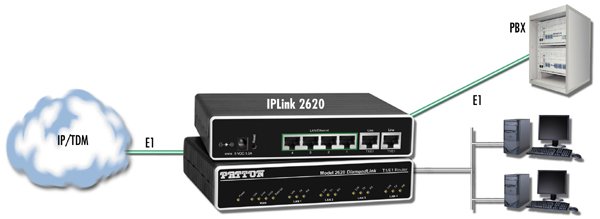

With Dual E1 ports, the IPLink Model 2620 maximizes the use of the up-link network and minimizes the cost of deploying the service by implementing Drop & Insert of DS0 channels between the E1 ports. The remaining bandwidth can then be used to provide other value added IP access services or even LAN extension over any of the four 10/100 Ethernet ports.

  • E1 Drop & Insert — Easily take any DS0 from one E1 port and switch it to the other.
  • Port one can be configured for T1 operation, routing or bridging over frame relay and PPP.
  • Dual WAN Ports — Terminate Frame Relay or PPP bridged or routed traffic on one interface and simultaneously switch TDM data.
  • Four 10/100 Ethernet — Easily bridge the gap between the LAN and WAN.
  • Enhanced IP Services — DNS relay, NAT/NAPT, DHCP server and relay, make it easy to offer any service.
  • Firewall with Standard DoS & Filtering — Built-in IP address and IP port filtering, intrusion detection and blacklisting capabilities make firewall services a snap.
  • SNMP/HTTP Management — Easily manage the IPLink 2620 via a simple web browser interface.
