Composite Video Fiber Products

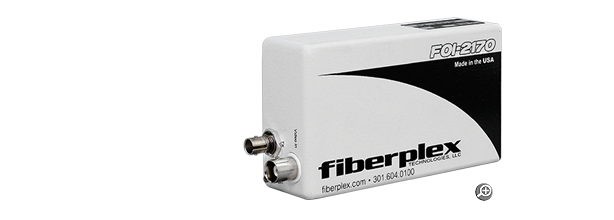

FiberPlex FOI-2170 Fiber Optic Isolator/Converter/Modem - RS170 video signals and audio; mission critical packaging



Packed in rugged military style metal enclosures, the FOI-2170 Series support Unidirectional Composite Video over Fiber.


Overview
The FOI-2170 and FOI-2171 provide complete electrical isolation for composite video communications. The units are compatible with several video broadcast standards. The units are transparent to all monochrome, color, and closed circuit video.

The FOI-2171 has an AGC (automatic gain control) to stabilize the video output for different fiber optic cable lengths. Adjusting the AGC potentiometer will also increase or decrease the overall scene brightness.

The units can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. In addition, fiber optic cable offers much longer transmission distances than traditional telephone line cord wiring.

Multimode optics on the units can extend the distance to 2km.

Applications

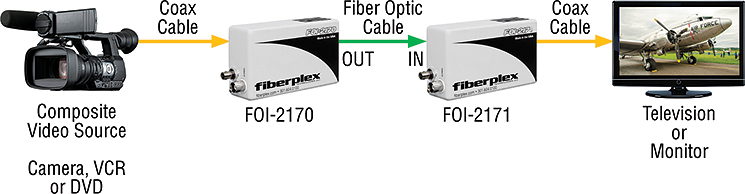

A typical link consists of a FOI-2170 connected to the Video Source and a FOI-2171 at the Video Monitor with a duplex fiber optic cable in between.

FOI-2170 applications


Features
  • Multimode extension up to 1.2 miles (2 km)
  • Compatible with NTSC, PAL, and SECAM
  • Compatible with EIA/RS-170/170A, EIA/RS-330
  • Supports video bandwidths from 4 Hz to 7 MHz
  • Rugged metal enclosures with RFI shielding

Ordering
# Model # Description Availability
1 FOI-2170-ST Isolator for RS170 video signal input, Power Options Sold Separately Special Order

 Accessories
