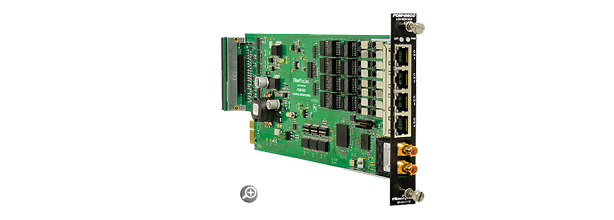

FiberPlex FOM-5600 Fiber Optic Multi-Port Module - 4 channels of ISDN BRI S/T; modular card style

Overview
The FOM-5600 provides complete electrical isolation for 4-wire S/T-Interface ISDN communications. The unit has four channels that are independent of each other with two switches each that allow users to select between different ISDN modes and interfaces.

Providing electrical-to-optical conversion and extension of 4-wire ISDN S/T interface signals, the unit has four channels that are independent of each other with two switches each that allow users to select between different ISDN modes and interfaces.

The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. The potential problem of creating ground loops or ground offsets is also eliminated because signal ground is not carried over the fiber. The unit enhances privacy of communications because fiber cannot be tapped without being detected and does not radiate any emissions.

Applications

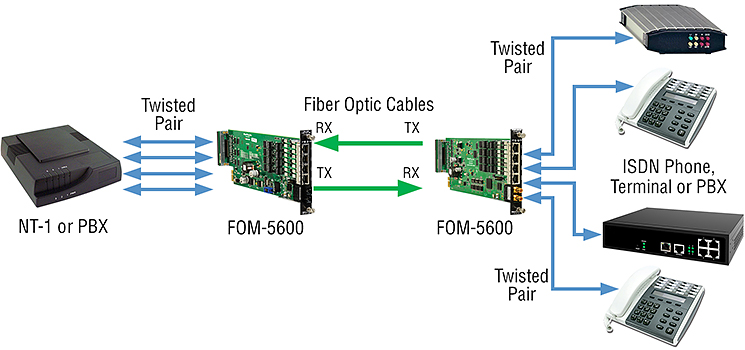

A typical link consists of two FOM-5600s, one at each end of the network with a duplex fiber optic cable in between.

Features

• Card Module for the FOM system supporting stand-alone or multi-card 19” rack mounting
• Supports 4 ISDN BRI (Basic Rate Interface) also known as BRA (Basic Rate Access)
• Multimode extension 1.24 miles (2km) or Singlemode extension of up to 1.5 miles (2.4 km)
• 2B+D data passes transparently
• All 4 channels are independent and may be operated at different data rates or interfaces.
• Each channel can be retimed to allow for longer S/T runs
• Supports data rates of 192kbps per channel
• Complies with ANSI T1.605-1991, CCITT I.430 and ETSI ETS 300 012

Ordering

# Model # Description Availability 1 FOM-5600-C Isolator Multiplexer for (4) ISDN BRI S/T interfaces (4 wire), SFP cage, no optical module Special Order    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SFP SFP-OC SFP optical modules for standard digital communications Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 2 FOM-5600-L12 Isolator Multiplexer for (4) ISDN BRI S/T interfaces (4 wire), Multimode LC optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 3 FOM-5600-L5B Isolator Multiplexer for (4) ISDN BRI S/T interfaces (4 wire), Singlemode LC optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 4 FOM-5600-T12 Isolator Multiplexer for (4) ISDN BRI S/T interfaces (4 wire), Multimode ST optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 5 FOM-5600-T5B Isolator Multiplexer for (4) ISDN BRI S/T interfaces (4 wire), Singlemode ST optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply)
