Copper SFP Multi-Channel Audio Modules

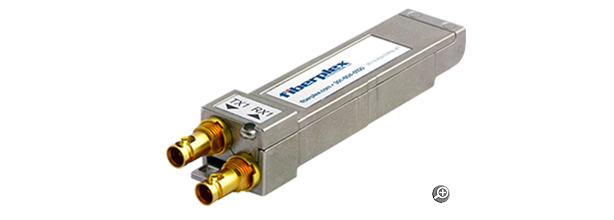

FiberPlex SFP-BA10 SFP with HD-BNC copper interface for MADI (AES10) multichannel audio



This series MADI (AES10 Compliant) SFP delivers audio over fiber when paired with the FOI-6010 or FOI-6012 or their ‘TD’ equivalents


Overview
The SFP-BA10XC-0000-M is a medium reach electrical transceiver module designed to transmit and receive MADI signals up to 125 Mbps over 75Ω coaxial cables via HD-BNC™ connectors. The cable driver amplitude and edge rate are automatically configured in order to achieve compliance to AES10.

These MADI modules are also available as dual transmit and dual receive modules for use in the FOI-6012 or TD-6012. These dual units are non-MSA compliant and would not be compatible with the WDM16.

Applications

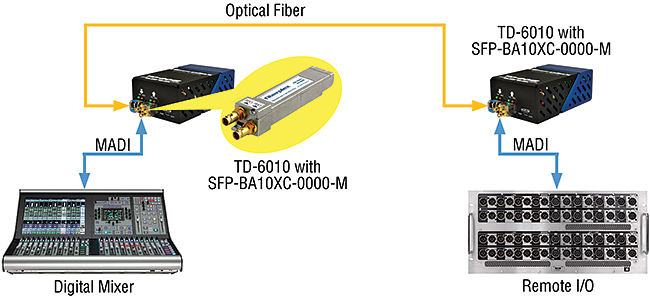

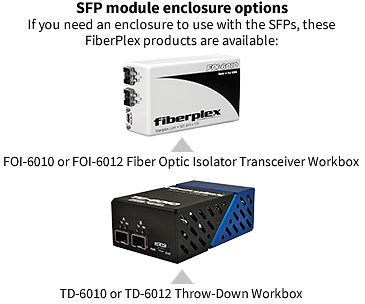

SFP-BA10 applications


Features
  • Available as Transceiver, Dual RX or Dual TX
  • Integrated equalizer
  • Integrated cable driver (control input signal detection, voltage & temp, and module info)
  • Meets Electrical Specifications of AES10
  • HD-BNC™ connectors (75Ω)

Ordering
# Model # Description Availability
1 SFP-BA10R2-0000-MN SFP, HD-BNC, Audio, MADI (AES10) Dual Receive, Medium Reach, Non-MSA Special Order
2 SFP-BA10T2-0000-MN SFP, HD-BNC, Audio, MADI (AES10) Dual Transmit, Medium Reach, Non-MSA Special Order
3 SFP-BA10XC-0000-M SFP, HD-BNC, Audio, MADI (AES10) Transceiver, Medium Reach, MSA General Availability
4 SFP-BA10XC-0000-MN SFP, HD-BNC, Audio, MADI (AES10) Transceiver, Medium Reach, Non-MSA Special Order
