Connect-IT 222N Interface-Powered RS-232 to RS-422 Converters



These Miniature Converters are no Bigger than a DB-25 (or DB-9) Backshell!


Overview

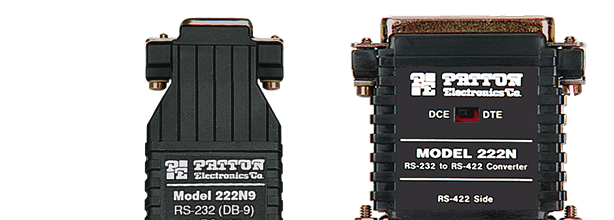

--Image: RACKABLE! Rack Mount Available --The Connect-IT model 222N converters now comes in two "flavors": The Model 222N allows an RS-232 device with DB-25 port to connect to an RS-422 device up to 4000 feet away over two twisted pair. The Model 222N9 does the same thing for an RS-232 device with a DB-9 port (now called EIA-574). Both converters support data rates up to 19.2 kbps, and require no AC power or batteries for operation. All handshaking lines are looped back. The Model 222NRC is a dual rack card version of the Model 222N, with two converters in one card!

RS232 to RS422 converter series is suitable for asynchronous communication in data communication networks, serial interface converters, rs232 to rs422 converters, SCADA system, and RS232 to RS422 converter cable replacement.

Highlights
DB-9 (EIA-574) Versions Also Available

If you need to convert a DB-9 Serial port to RS-422, you need the Patton Model 222N9


Model

Note: Model # 222N9FT (shown above) comes with thumbscrews. Other 222N models come with slotted captive fasteners.



Features
  • Conforms to the EIA RS-422 Interface Standard
  • Bi-Directional Data Conversion
  • No AC Power Required
  • Handshake Lines are Looped Back
  • Reliable Surface Mount Construction
  • 600W of Optional Surge Protection
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Ordering
# Model # Description Availability
1 222N9F RS232 TO 422 CONV,DB9F,STR RLF General Availability
2 222N9FRJ11 RS232 -422 CONV, DB9F TO RJ11 Special Order
3 222N9FRJ45 RS232-RS422 CONV, DB9F TO RJ45 General Availability
4 222N9M RS232 TO 422 CONV,DB9M,STR RLF General Availability
5 222N9M RJ11 232 TO 422 CONV,DB9M,RJ11 Special Order
6 222N9M RJ45 RS232 TO 422 CONV,DB9M,RJ45 Special Order
7 222N9SF RS232 TO 422 CONV,DB9F,SR,SP Special Order
8 222NF RS232(F) TO RS-422(STR.REL.) Special Order
9 222NF-25F CONVERTER, DB25F TO DB25F Special Order
10 222NF-25M RS-232(F) TO RS-422(M) CONV. Special Order
11 222NF-RJ11 RS-232(F) TO RS-422(RJ-11) General Availability
12 222NF-RJ45 RS-232(F) TO RS-422(RJ-45) Special Order
13 222NF-RJ45-MP RS-232(F) TO RS-422(RJ-45); MP Special Order
14 222NM RS-232(M) TO RS-422 (STR.REL) General Availability
15 222NM-25F RS-232(M) TO RS-422(F) CONV. Special Order
16 222NM-25M RS-232(M) TO RS-422(M) Special Order
17 222NM-RJ11 RS-232(M) TO RS-422 (RJ-11) Special Order
18 222NM-RJ45 RS-232(M) TO RS-422 (RJ-45) Special Order
19 222NRC11 RS232 TO 422 CONV.W/RJ11 R CRD End of Life-Notice
20 222NRC45 RS232 TO 422 CONV.W/RJ45 R CRD End of Life-Notice
21 222NS9F RS232 TO 422 CONV,DB9F,STR RLF Special Order
22 222NSF RS232-422 CONV,SURGE PROTECTED Special Order
23 222NSF-25F RS232-422 CONV,SURGE PROTECTED Special Order
24 222NSF-25M RS232-422 CONV,SURGE PROTECTED Special Order
25 222NSFRJ11 RS232-422 CONV,SURGE PROTECTED Special Order
26 222NSFRJ45 RS232-422 CONV,SURGE PROTECTED Special Order
27 222NSM RS232-422 CONV,SURGE PROTECTED Special Order
28 222NSM-25F RS232-422 CONV,SURGE PROTECTED Special Order
29 222NSM-25M RS-232 TO RS-422 CONV. S PROT. Special Order
30 222NSMRJ11 RS232-422 CONV,SURGE PROTECTED Special Order
31 222NSMRJ45 RS232-422 CONV,SURGE PROTECTED Special Order
