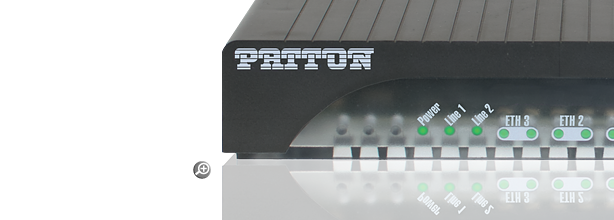

Model OS2300

The Model OS2300 is a low cost, manageable and software upgradeable G.SHDSL.bis EFM CPE designed for service providers needing transparent network connectivity.

Contact Us
Direct: +1 301 975 1000
Direct: +1 301 975 1007
Have Us Contact You
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features & Benefits




Ordering Information


  • Line Rates up to 15.3 Mbps per pair—Get even more bandwidth by bonding 2 pairs for a symmetrical 30-Mbps link.
  • 4 x 10/100 Ethernet Interfaces—Connects multiple network-enabled devices.
  • Software Upgradeable—Software upgrades make it easy to keep the OnSite EFM CPE in service for years
  • Plug ‘n’ Play—Just plug them in and the link comes up in seconds. Set the unit to use handshaking and the selection of optimal link speeds can also be done automatically.
  • Connect point-to-point or to a DSLAM—The OS2300 can be used back-to-back or with any G.BIS compliant third-party or Patton DSLAM.
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Patton’s Model OS2300 G.SHDSL.bis OnSite EFM CPE is the perfect choice for users or service providers who need high-speed dedicated network connections. Based on the ITU and ETSI G.SHDSL G.991.2 standard, the OS2300 enables providers to extend their reach-and-range by delivering rate-adaptive nx64 symmetrical speeds up to 15.3 Mbps over a single pair of wires. If you need even more bandwidth, the OS2300 can bond as many as two pairs (4 wires) for up to 30 Mbps.

The OS2300 offers easy installation. For very basic configurations users can take advantage of a DIP switch located on the bottom of the unit. For more configuration options we offer CLI via Console/VT-100 or Telnet/SSH, and HTTP web based management, and SNMP.

Patton’s OnSite 2300 offers the versatility and reliability demanded for business-class applications at the most affordable price.

  • The Model OS2300 G.SHDSL.bis CPE excels in manageability even in point-to-point configurations.
  • Plug ‘n’ Play automatically configures a remote unit based on parameters stored in the local unit.
  • Secure console lets an operator log into a unit to manage and configure it locally.
  • Remote console makes configuration and management of a remote unit easy over an out-of-band channel.
OnSite OS2300 application diagram

# Model # Description Availability
1 OS2301/4ETH/EUI OnSite EFM CPE; 1 pair; 4 x10/100, external 100-240VAC; Optional License for Routing Available to Order; Coming Soon
2 OS2302/4ETH/EUI OnSite EFM CPE; 2 pair; 4 x10/100, external 100-240VAC; Optional License for Routing Available to Order; Coming Soon
