CopperLink 1314MDE Ruggedized Multi-Drop Ethernet Extender & Repeater | up to 3.4 miles

Use the CopperLink 1314MDE Multi-Drop Ethernet Extender to interconnect and daisy chain multiple remote networks and network enabled devices up to 3.4 miles or more apart using single-twisted-pair cabling.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • High Speed Extension—Achieve speeds up to 5.7 Mbps.
  • Flexible Uses—Can be used as either an long distance Ethernet extension (repeater) and/or in Multi Drop Ethernet applications
  • Multi-rate Selection—Just plug the units in and select the ideal user-configurable rate for your application.
  • CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-45 ports.
  • Extended Temperature—-40 to 85°C operation.
  • Ruggedized—Aluminum enclosure designed to meet IP40 specifications
  • Transparent LAN Bridging—Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.
  • Automatic Learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long-range link.
  • Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
The CL1314MDE Multi-Drop Ethernet Extender used in conjunction with the CL1314R makes Ethernet extension a breeze. The MDE series of Ethernet Extenders allows users to replace their legacy serial coms with cost-effective Ethernet (IP) that is easy and inexpensive to set up. Featuring plug-and-play installation, the CL1314 MDE leverages existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at moderate speeds over long distances. The MDE Extender not only allows multi-drop functionality but also serves a repeater function doubling your maximum distance at every hop.

Operating over standard 0.5 mm (24 AWG) voice-grade wiring, the CL1314 MDE delivers speeds up to 5.7 Mbps and extends Ethernet connections across distances ranging from 2.7 to 6.9 km (1.7 to 4.3 miles) per hop. Whether you need connect to a remote offices, kiosks, guard stations, train stations, digital sensors or IP cameras—Patton Ethernet Extenders offer the industry’s optimum combination of speed and distance. Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electro-magnetic environment. Users “hard-set” the desired line rate via DIP switches or console Telnet.

The CL1314 MDE comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight through cables to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.

Operating at layer 2 of the OSI model (data link layer), the CL1314MDE (and the CL1314R) transparently passes all higher-layer protocols—including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.

Set-up is easy! Plug in the twisted pair into each Copperlink port, then plug in up to four LAN devices with Cat 5 or greater cabling, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!



Applications

Typical Applications

Model CL1314MDE ruggedized multi-drop Ethernet extenders are ideal for delivering drop add Ethernet links to multiple remote locations that are beyond the 328-foot (100-meter) distance limit of Ethernet. The 5.7 Mbps throughput eliminates bandwidth concerns previously experienced with other legacy copper wired transmission technologies.

The CL1314MDE includes several user configurable line rates so that a user will get a consistent link, even in noisiest environments. Using existing voice-grade copper pairs or legacy serial circuits eliminates the expense and hassle of installing low capacitance or fiber cable.


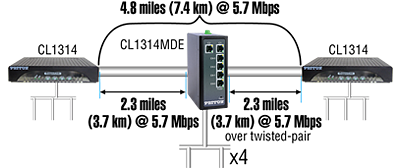

CopperLink™ CL1314MDE application diagram


CopperLink™ CL1314MDE application diagram


CopperLink™ CL1314MDE application diagram


CopperLink™ CL1314MDE application diagram


Important
When planning for mutiple drops, keep in mind that latency (the total delay that occurs when sending data from source to destination) should be less than 150 ms and should not exceed 400 ms, regardless of the type of application. See Latency for more information.



Ordering
# Model # Description Availability
1 CL1314MDE/CC/EUI Ruggedized 5.7 Mbps CopperLink Multi-Drop Ethernet Extender; Conformal Coated; 2 x CopperLink; 4 x10/100; -40 to 85C; 100-240VAC General Availability

 Accessories
2 CL1314MDE/EUI Ruggedized 5.7 Mbps CopperLink Multi-Drop Ethernet Extender; 2 x CopperLink; 4 x10/100; -40 to 85C; 100-240VAC General Availability

 Accessories
