High Speed Async./Sync TIA-RS-232, 530, 530A, 574, 449, V.35, X.21
FiberPlex FOM-1090 Industrial Serial to Fiber Converters offer synchronous, asynchronous, or isochronous interfaces

Overview

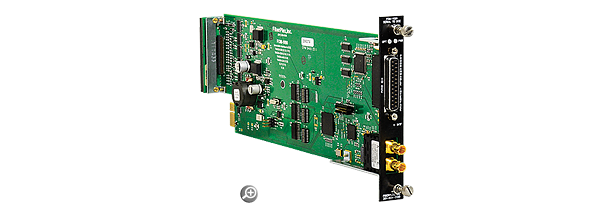

The FOM-1090 and FOM-1091 Industrial Serial to Fiber Converters are fiber optic isolator/modem cards that provide for full synchronous, asynchronous, or isochronous interfacing to serial data communications equipment. The units are transparent to all data formats and protocol, and support timing from the DCE and DTE as well as uncommon clocking styles such as gapped clock or gated clocks that stop in different states to indicate status. The status and direction of all supported signals is shown on front panel indicators in addition to power supply and optical link status for each card. Made in USA.

The user can achieve complete electrical isolation for NRZ data communications in areas of high electrical noise or in/out of RF shielded enclosures (SCIF). The fiber optic cable is not susceptible to induced impulse noise and since signal ground is not carried over the link, the signal is not affected by elevated ground potential from lightning or other sources. The fiber optic cable enhances privacy of communications.

Applications

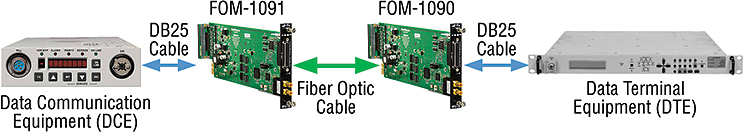

While a typical link consists of a FOM-1090 (to DCE) at one end and a FOM-1091 (to DTE) at the opposite end, a pair of the same units may be used together as when using two FOM-1090 DCE units to create a null modem link.

Features

• Card Module for the FOM system supporting stand-alone or multi-card 19” rack mounting
• Synchronous, asynchronous, isochronous signal rates: DC to 25 MHz
• Tail circuit and null modem functions for DCE to DCE or DTE to DTE
• Supported interface standards: TIA-232, TIA-530/530A, TIA-574,TIA-449, V.35 and X.21
• Supported electrical standards: TIA-411/V.11/FED-STD-1030A, TIA-423/V.10/FED-STD-1020A, TIA-232/V.28, V.35, MIL-STD-100, MIL-STD-188-114A Balanced types 1&2 (V.11 mode) and MIL-STD-188-114A unbalanced (V.10 mode)

Ordering

# Model # Description Availability 1 FOM-1090/CC-T10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. Multimode ST Optics, Conformal Coated General Availability    Accessories Additional Charge: Standalone Operation SAC-1/CC-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply); Conformal Coated 2 FOM-1090-C Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. SFP cage, no optical module General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SFP SFP-OC SFP optical modules for standard digital communications Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 3 FOM-1090-L10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. Multimode LC Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 4 FOM-1090-L5A Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. Singlemode LC Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 5 FOM-1090-T10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. Multimode ST Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 6 FOM-1090-T5A Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-F DCE for connection to DTE equipment. Singlemode ST Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) 7 FOM-1091/CC-T10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. Multimode ST Optics; Conformal Coated General Availability    Accessories Additional Charge: Standalone Operation SAC-1/CC-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply); Conformal Coated 8 FOM-1091-C Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. SFP cage, no optical module General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) SFP SFP-OC SFP optical modules for standard digital communications Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) 9 FOM-1091-L10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. Multimode LC Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) 10 FOM-1091-L5A Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. Singlemode LC Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) 11 FOM-1091-T10 Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. Multimode ST Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply) 12 FOM-1091-T5A Serial Data Communications, Sync, Async, Isochronous, DC to 25 Mbps, Programmable interface RS-232 (V.28), RS-530, RS-530A, V.35 (V.28), X.21 (V.11), RS-422, RS-449 (V.36), DB-25-M DTE for connection to DCE equipment. Singlemode ST Optics General Availability    Accessories Additional Charge: Rack PSM-5000   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 90-260 VAC, 40-400 Hz input, 250 Watts PSM-5048   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-5000 series rack mount chassis, 24-48 VDC input, 250 Watts RMC-5000 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5000 AC power supply, cooling fans RMC-5000-D 19 in EIA Rack mount chassis, 7 in (4RU) for up to 16 FOM series isolator cards, rear access, includes one PSM-5048 DC power supply, cooling fans SAC-1-DC Stand-alone, single slot chassis for FOM series isolator cards (includes DC Power Supply) Standalone Operation SAC-1-AC Stand-alone, single slot chassis for FOM series isolator cards (includes AC Power Supply)
