8 Audio Channels & 1 HDCP Video Channel over IP Gateway
FiberPlex FPX6000



The combination of Dante AV and IP offers the power, flexibility and reliability needed for next generation commercial AV networks. Easily route and sync individual audio and video channels using industry leading Dante protocol, eliminating the use of legacy breakouts or costly matrix switches.



Overview
Patton’s FPX6000 enables 8 audio channels (transmit or receive) and 1 HDCP encryption support video channel (transmit or receive) to be easily inserted onto an existing Ethernet network backbone without suffering the performance issues and management difficulties associated with audio and video over IP.

Dante’s sub-microsecond synchronization of audio and video eliminates alignment problems—this is accomplished by having a single network clock for the entire system in sync regardless of the number of endpoints, transporting audio and video with low deterministic latency.

In addition to providing high performance audio and video over IP, the FPX6000 is loaded with peripheral connectivity options including USB2.0 and USB OTG for keyboard and mouse, infrared for remotes, even serial signals for PTZ control and more… all over IP!

The Dante Controller makes routing, controlling and monitoring your audio and video traffic and endpoints as simple as clicking a button.

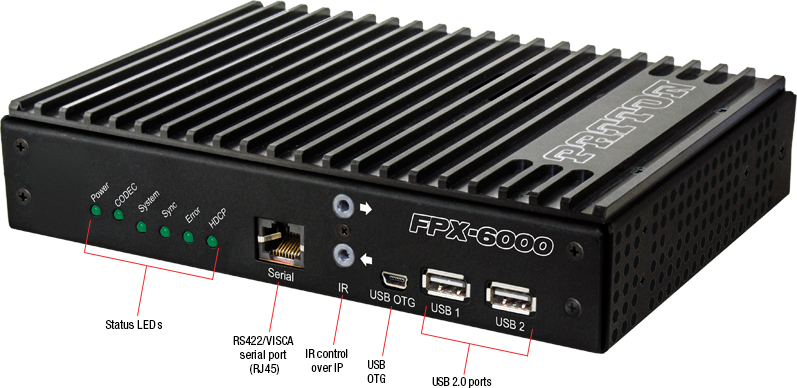

FPX6000 front view
FiberPlex FPX6000 front view


FPX6000R rear view
FiberPlex FPX6000R rear view

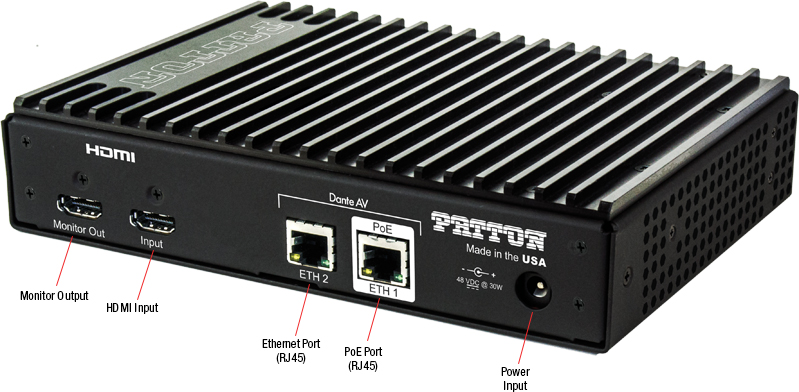

FPX6000T rear view
FiberPlex FPX6000T rear view


Applications
FPX6000 application diagram


Features
  • Clean Crisp Audio - Dante protocol timing and synchronization significantly reduces harmonic distortion and phasing caused by jitter, wander and delay typically found on standard Ethernet networks.
  • Supports Mixed Networks - Dante ensures that your time-sensitive audio/video streams always get enough reserved bandwidth even while on a standard Ethernet network.
  • Expanded Coverage - Break away from legacy point-to-point topology. Command, control and reliability for distributed audio video systems is made simple tapping into already existing Ethernet networks and reach Dante endpoints up to 328 feet (100 m) away from the network
  • Interoperability -
    • Instantly connect to any Dante-enabled products currently available today
    • HDCP2.2 over IP compliant

Ordering
# Model # Description Availability
1 FPX6000R/PD FIberplex DanteAV over IP Gatweway (Receiver); 1 HDMI output; 2 x USB 2.0; 1 x USB OTG; Serial (RS422); IR; 1 x GigE; 1 GigE (802.3at/PD); powerd by 48DVC or 30W PD network port Pre-Order Available
2 FPX6000T/PD FIberplex DanteAV over IP Gatweway (Transmitter); 1 HDMI Input; 1 HDMI Monitor Output; 2 x USB 2.0; 1 x USB OTG; Serial (RS422); IR; 1 x GigE; 1 GigE (802.3at/PD); powerd by 48DVC or 30W PD network port Pre-Order Available
