Media Converters
FiberPlex FP101EM Ultra-Miniature Industrial Gigabit Media Converter



The FiberPlex FP101EM industrial Gigabit media converter is so small it can be installed just about anywhere or in anything.


Overview
Patton’s FP101EM converts singlemode or multimode fiber to a copper Ethernet signal. The increased bandwidth and reliability is ideal for applications involving devices such as IP security cameras, VoIP phones, wireless access points, POS kiosks, BACs, PLCs and many other remote networking needs.
FiberPlex™ FP101EM is really this small!

Because Ethernet over Cat 5e/6 cables is limited to only 100 meters (328 feet), using fiber as a backhaul allows for a massive increase in distances. SFP options for multimode can reach up to 2 km (1.24 miles), and singlemode options can range as far as 120 km (74 miles). In addition to the reach, you get Fiber’s superior immunity to noise and, harmful transients (surges).

The FP101EM is housed in an IP30-rated DIN-rail or wall-mount enabled enclosure, and has an operating temperature of -40 to 75°C. Its rugged design and wide temperature range makes it an ideal media converter for industrial or harsh environments. Its small size even allows you to put it inside the enclosures of your primary devices.

The Fiberplex 101EM is very simple to use, completely plug and play. LEDs will make it clear when power is detected on the power inputs.

Applications

FiberPlex™ FP101EM application diagram


Features
  • Extended Operating Temperature - -40 to 167F (-40 to 75C) ambient temperature range.

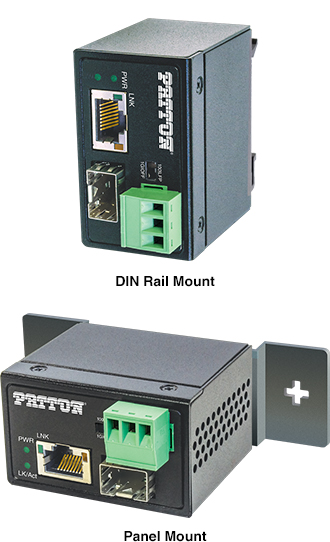

  • Flexible Mounting Options - Panel or wall mount, DIN rail or desktop.
  • Rugged - Meets tough EN60068 standards for Free Fall, Shock, and Vibration.
  • Link Fault Pass-Through (LFP) - If the copper signal is lost or disconnected, the fiber signal will turn off. If the fiber signal is lost or disconnected, the copper port will turn off.
  • Plug and Play - No configuration required.
  • TAA Compliant - Top-notch quality and reliability with local support.

Ordering

Sorry!

Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at
sales@patton.com or +1 301 975 1000






Sales: sales@patton.com / +1 301 975 1000
Support: support@patton.com / +1 301 975 1007
