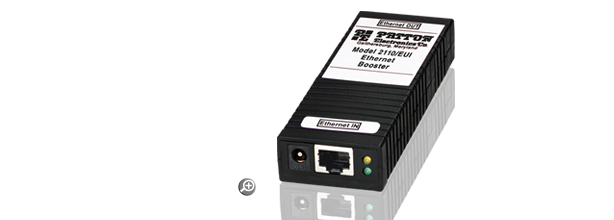

Ethernet Booster, PoE Injector & PoE Ethernet Repeater

Overview
The CopperLink™ Model 2110 doubles Ethernet distance limitations of 328 feet (100 meters). Multiple Model 2110 Ethernet Boosters can be placed in-line to further extend both Ethernet and PoE up to 1,640 ft (500 m), eliminating the need for additional switches, hubs, wireless access points, and expensive fiber installations. The Model 2110 is completely transparent to protocol making them true plug-and-play devices, completely interoperable with any network enabled device. The Model 2110 will not cause latency or degradation on your network connections, ensuring the maximum 100-Mbps full-duplex line rate. The Model 2110P and 2110PSE not only transparently pass on Ethernet data, but also feed on and forward PoE power to devices such as wireless access points, IP cameras, and VoIP phones.

802.3af Power and Distance Chart

	Power Delivered	13W	6.5W	3.84W	0W
	Class of PoE Device	Class 3/0	Class 2	Class 1	No PoE Load
Model	PoE Source	Maximum Distance
2110/P	PoE switch	N/A	300 m 984 ft	400 m 1,310 ft	500 m 1,640 ft
2110/PSE + 2110/P	PoE Injector 2110/PSE/EUI	400 m 1,312 ft	500 m 1,640 ft	500 m 1,640 ft	800 m 2,625 ft
2110/EUI	No PoE	N/A	N/A	N/A	N/A

CopperLink™ Copper Ethernet Extenders

Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!

# of Ethernet Ports	# of wire pairs	Max. Speed (Mbps)	Distance at Max. Speed	CopperLink™ Model
2	CAT5+ (4)	N/A	2,625 ft/0.8 km (328ft/100m per 2110)	2110
2	1	100	500 ft/0.15 km	2173
4	4	45.6	4,600 ft/1.4 km	2162
4	2	22.8	4,600 ft/1.4 km	2161
2	1	15	2,953 ft/0.9 km	2151
4	1	11.4	4,593 ft/1.4 km	2160
2	1	10	4,265 ft/1.3 km	2150
1	1	4.6	10,827 ft/3.3 km	2157
1	1	2.3	16,404 ft/5.0 km	2156

Applications
The CL2110/P is ideal for delivering Ethernet to remote network enabled devices located outside Ethernet’s limited range of 328 feet (100 meters). Several configurations are possible based on individual requirements.

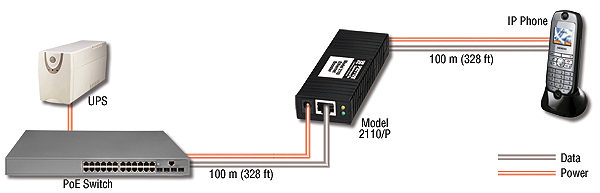

Model 2110/P: PoE Pass Through & Ethernet Extension Model 2110/P: Ethernet booster, Ethernet repeaters, PoE booster provides PoE pass-through Ethernet Extension

Model 2110/P: Ethernet booster, Ethernet repeaters, PoE booster provides PoE pass-through Ethernet Extension

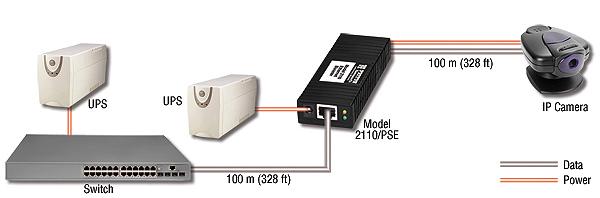

Model 2110/PSE: PoE Injection & Ethernet Extension

Model 2110/EUI: Ethernet Extension Model 2110/E: Ethernet Extension. Ethernet booster, Ethernet repeaters, PoE booster

Features

Ethernet & PoE Extension—Doubles 10/100Base-TX Ethernet and PoE to 200 meters (656 feet). Multiple units can be used in series for even longer extensions.
Operates over CAT5—Reduces the cost and hassles of adding switches, hubs, and wireless access points.
Plug and Play—No configuration or cable hassles during installation with auto-sensing 10/100, full or half duplex, and automatic MDI-X.
Transparent LAN Operation—Transparent operation ensures the highest rate possible for each extension distance.
No External Power Required—Power over Ethernet (PoE) capability enables both extenders and peripheral devices to be powered over standard twisted-pair Ethernet cable.
Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Ordering

Model #

Description

Availability

2110/EUI

CopperLink 10/100 Mbps Ethernet Booster; 100-240 VAC

General Availability

Accessories

2110/P

CopperLink 10/100 Mbps Ethernet Booster; 802.3af pass through

General Availability

Accessories

2110/PSE/EUI

CopperLink 10/100 Mbps Ethernet Booster; 802.3af; Injector 54VDC Source

General Availability

Accessories

2110/PSE/EUI-48

CopperLink 10/100 Mbps Ethernet Booster and 802.3af PoE Injector; 48VDC Source

Special Order

Accessories

PoE Boosters
CopperLink 2110 Ethernet Booster, 802.3af (15W)

The CopperLink 2110 Ethernet repeaters offer PoE booster, Ethernet Booster, PoE Injector, and Ethernet Extender options. Doubles Ethernet and PoE distances over existing copper wire.
