End of Life Notice - mDSL Products (PDF). This legacy product is not recommended for new installations. For next-generation alternatives, please see Patton's Model 3088 Series DSL NTUs.


Overview
The Model 1089 is the next generation of SNMP/HTTP-manageable high-bit-rate digital subscriber line (HDSL) modems. Supporting 2B1Q modulation, the Model 1089 operates at n x 64 kbps rates up to 1.152 Mbps over two wires.

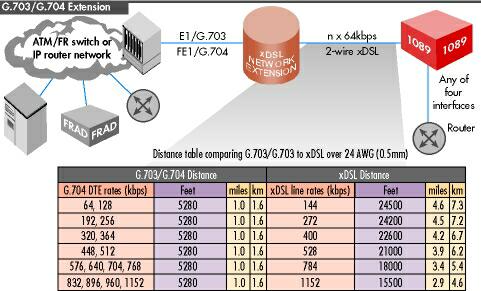

Available in four fixed interface versions (10Base-T Ethernet, G.703/G.704, X.21, and V.35), the Model 1089 operates at ranges up to 4.6 miles (7.3 km) without repeaters (see distance table below). Our Ethernet version, the Model 1089/I, provides 10Base-T bridging and PPP support. This enables customers to extend a router's serial interface and connect to a remote 10Base-T LAN.

Model

The Model 1089 is fully compatible with Patton's popular Model 1094A standalone and 1094ARC rack card. Now service providers can cut costs and setup time by installing a rack-mounted Model 1094ARC at the central site while bundling a Model 1089 with DSL service at the customer's premises.

The 1094ARC and 1089 can be managed via SNMP/HTTP using Patton's 1001MC SNMP agent card!



Features
  • Supports multiple line rates from 144 kbps to 1.152 Mbps
  • DTE speeds from 64 kbps to 1.024Mbps in increments of 64 kbps
  • Standards-based support (CE Mark)
  • Available with internal 90—260 VAC or -48 VDC power supplies
  • Built-in loopback functionality
  • A variety of modular interfaces

Ordering
# Model # Description Availability
1 1089/C/48 2B1Q DSL NTU ROCKET W/ V.35 INTERFACE End of Life-Notice
2 1089/C/UI 2B1Q DSL NTU ROCKET W/ V.35 INTERFACE End of Life-Notice

 Accessories

3 1089/D/48 2B1Q DSL NTU ROCKET W/ X.21 INTERFACE End of Life-Notice
4 1089/D/UI 2B1Q DSL NTU ROCKET W/ X.21 INTERFACE End of Life-Notice

 Accessories

5 1089/I/48 2B1Q DSL NTU ROCKET W/ ETHERNET BRIDGE End of Life-Notice
6 1089/I/UI 2B1Q DSL NTU ROCKET W/ ETHERNET BRIDGE End of Life-Notice

 Accessories
