Products  >  Interface Card IC-T1V View Printable

End of Life Notice (PDF). This legacy product is not recommended for new installations. For next-generation alternatives, please refer to the above EOL notice.


Overview
The IC-T1V is a PMC standard compatible interface card for the SmartNode 2000 series. It provides one ISDN PRI interface and connects through a PCI packet and PCM circuit interface to the SmartNode base unit.

The IC-T1V is a high performance ISDN networking card that supports up to 23 simultaneous voice or fax calls. It meets the requirements of medium and large sized enterprises that want to connect their ISDN equipment, such as an ISDN PBX, via a PRI interface to a multi-service IP network.

The ISDN PRI interfaces can be configured as user or network side interfaces. Its on board dedicated micro-controller and DSPs off load the CPU of the SmartNode 2000 base unit and hence guarantee the conversion of voice/fax circuits into related IP-packets in real-time with minimal delay and jitter values.

Configuration Example

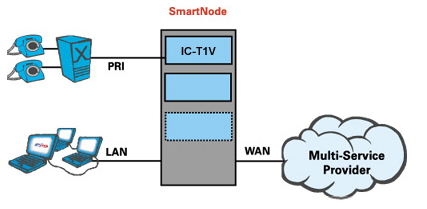

The example shows the connection of a PBX via an IC-T1V Card into an IP network.



Features
  • 1 ISDN balanced 100Ohm T1, RJ45
  • 23 calls per PRI
  • G.168 echo cancellation
  • Support of various voice codecs: G.711 A-Law/µ-Law, G.723.1, G.729A, Transparent
  • Voice Signalling: Euro ISDN DSS-1 / ETSI PRI Q.931 / Q-SIG (PSS-1)
  • EMC & CE Compliant
  • 1-year warranty
  • Optional Upgrade: 2-5 year Warranty
  • Optional Upgrade: 1-5 year Enhanced Warranty (includes free Advance Replacements)

Ordering

Sorry!

Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at
[email protected] or +1 301 975 1000
