G.703/E1 Miniature Baluns
Connect-IT 430 G.703 E1/E2 Toolless IDC G.703/G.704 Balun



The Patton 430 Single Port E1/E2 Balun Series provides 75/120-Ohm conversion in an ultra-miniature enclosure


Overview
Patton’s new G.703/G.704 toolless insulating displacement connecting (IDC) module baluns are ideal for carriers seeking a cost-effective, space-efficient, and proven method of impedance matching 75-Ohm coax to 120-Ohm single-conductor connections. The baluns provide transparent bi-directional signal conversion with no AC or battery power required.

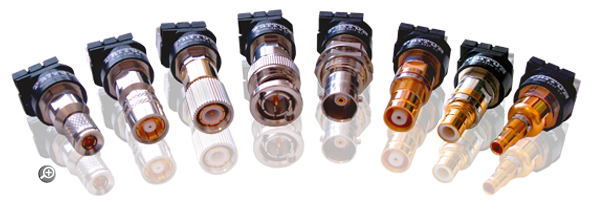

Various industry standard types of coaxial connectors (75 Ohm) are available including male and female combinations of BNC, 1.6/5.6, 1.0/2.3, and Type 43. The 3-pole toolless IDC connector used for wrapping single-conductor connections (120 Ohm) utilizes a slit in the cable anchor to allow the cable to be inserted after termination. The toolless IDC connector is also offset so that a cable can be positioned between baluns on the DDF/patch panel as required. The toolless IDC connector is clearly labeled A, B, and G (Ground) to make installation more convenient.

Model 431F

Single Port BNC Female Panel Mount to Toolless IDC Balun

Model 431M

Single Port BNC Male Panel Mount to Toolless IDC Balun

Model 432F

Single Port 1.6/5.6 Female Panel Mount to Toolless IDC Balun

Model 432M

Single Port 1.6/5.6 Male Panel Mount to Toolless IDC Balun

Model 433F

Single Port 1.0/2.3 Female Panel Mount to Toolless IDC Balun

Model 433M

Single Port 1.0/2.3 Male Panel Mount to Toolless IDC Balun

Model 434F

Single Port Type 43 Female Panel Mount to Toolless IDC Balun

Model 434M

Single Port Type 43 Male Panel Mount to Toolless IDC Balun

Model 430R

The Patton Model 430R houses up to 32 individual toolless 431F IDC baluns for 16 E1/E2 circuits. The 430R fits into standard 19-inch racks and includes a dry-erase tab for easy and clear marking



Applications

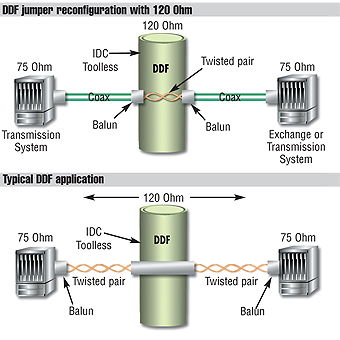

Patton’s Ultra-miniature G.703 toolless IDC baluns are fully shielded and are ideal in telecom applications where space is a premium. The Model 430 Series can be panel mounted or cable mounted and feature IDC terminations which allow installation without the need of special tools. Converting your G.703 signal from coax to twisted-pair enables the use of high density IDC modules in the Digital Distribution Frames (DDF), which significantly increases the available density.

Model


Model

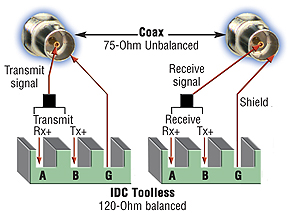

Patton’s Toolless IDC Connector Features
Specially designed toolless IDC connector for easy connection of unterminated cable.
IDC toolless connector clearly marked A, B and G for easier installation.
Slit in cable anchor allows cable to be inserted after termination.
4 Offset IDC allows cable to be positioned between baluns on DDF as required.


Features
  • Convert 75 Ohm Coax to 120 Ohm Twisted Pair--Resolves impedance mis-match between twisted pair equipment and coax cabling
  • Ultra-miniature size--Provides maximum density when installed into a 19-inch (48.3cm) panel
  • Industry Standard Coax Connectors--A host of coax connectors including BNC, 1.6/5.6, 1.0/2.3 and Type 43 are available
  • Low Insertion Loss--Fully meets ITU-T (CTR-12) G.703 standards
  • No Power Required--Operation is transparent to data, no AC/DC power is required

Ordering
# Model # Description Availability
1 430R/16 16 E1 (32 balun slots) PORT 2U BNC IDC BALUN RACK Special Order
2 431F G.703/G.704 Balun, BNC Female bulkhead Tooless IDC with metal thread Special Order

 Accessories

3 431M G.703G.704 Balun, BNC Male to Tooless IDC Special Order
