Overview
The Model 1001MP10 Universal Mounting Panel offers the ability to rack up to 10 Patton products side by side. Products that are compatible with the 1001MP10 and 1001MP2 include Ethernet Extenders, xDSL modems, short range modems, NTUs, and much more!

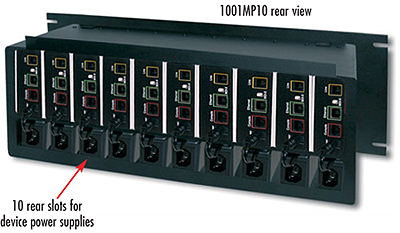

The Model 1001MP10’s sturdy 4U design easily installs into any standard 19-inch rack. A combination of a unique groove system and an easily installed back panel enables the 1001MP10 to securely lock the individual Patton modems and their power supplies. For lower density applications, the Model 1001MP2 offers a 1.5U-high, 2-slot panel.
The Model 1001MP series offers an economical method for converting your favorite Patton standalone product into a rack-mount solution.
Applications
Highlights
The Model 1001MP10 Universal Mounting Panel offers the ability to rack up to 10 Patton products side by side. Products that are compatible with the 1001MP10 and 1001MP2 include Ethernet Extenders, xDSL modems, short range modems, NTUs, and much more!
The Model 1001MP10’s sturdy 4U design easily installs into any standard 19-inch rack. A combination of a unique groove system and an easily installed back panel enables the 1001MP10 to securely lock the individual Patton modems and their power supplies. For lower density applications, the Model 1001MP2 offers a 1.5U-high, 2-slot panel.
The Model 1001MP series offers an economical method for converting your favorite Patton standalone product into a rack-mount solution.
| Patton Product Compatibility Table |
|
xDSL Modems
|
Ethernet Extenders
|
|---|---|
| 1082: iDSL Modem | 2155: 144 kbps CopperLink Ethernet Extender |
| 3088: G.SHDSL Modem | 2156: 2.3 Mbps CopperLink Ethernet Extender |
| 3201: 2.3 Mbps G.SHDSL Router | 2157: 4.6 Mbps CopperLink Ethernet Extender |
| 3241: 4.6 Mbps G.SHDSL Router | Serial Modems |
| E1/T1 Network Extenders | 1060: RS-232 115.2 kbps Asynchronous Short Range Modem |
| 2113: T-Link E1 Network Extender | 1070: RS-232 19.2 kbps Synchronous Short Range Modem |
| 2115: T-Link T1 Network Extender |
1080A: RS-232 57.6 kbps Async/Sync Short Range Modem |
| E1/T1 NTU | 1080A-64: RS-232 64 kbps Async/Sync Short Range Modem |
| 2701 Series: G.703/G.704 FE1/E1Network Termination Unit | 1226: Parallel 115.2 kbps Short Range Modem |
| 2707 Series: G.703 Clear Channel E1 Network Termination Unit | |
| 2720 Series: T1/FT1 Network Termination Unit |
Applications
|
 |
|---|
Highlights
| Patton Product Compatibility Table |
|
xDSL Modems
|
Ethernet Extenders
|
|---|---|
| 1082: iDSL Modem | 2155: 144 kbps CopperLink Ethernet Extender |
| 3088: G.SHDSL Modem | 2156: 2.3 Mbps CopperLink Ethernet Extender |
| 3201: 2.3 Mbps G.SHDSL Router | 2157: 4.6 Mbps CopperLink Ethernet Extender |
| 3241: 4.6 Mbps G.SHDSL Router | Serial Modems |
| E1/T1 Network Extenders | 1060: RS-232 115.2 kbps Asynchronous Short Range Modem |
| 2113: T-Link E1 Network Extender | 1070: RS-232 19.2 kbps Synchronous Short Range Modem |
| 2115: T-Link T1 Network Extender |
1080A: RS-232 57.6 kbps Async/Sync Short Range Modem |
| E1/T1 NTU | 1080A-64: RS-232 64 kbps Async/Sync Short Range Modem |
| 2701 Series: G.703/G.704 FE1/E1Network Termination Unit | 1226: Parallel 115.2 kbps Short Range Modem |
| 2707 Series: G.703 Clear Channel E1 Network Termination Unit | |
| 2720 Series: T1/FT1 Network Termination Unit |
Features
- Multi-Functionality -- Supports NTUs, xDSL Modems, Short Range Modems, and Ethernet Extenders
- Independent Slots -- Up to 10 independently operating slots to completely do away with any single point of failures.
- Rackmount -- Both Universal Mounting Panels fit into any 19-in. rack. The 10-slot panel is only 4U (7 in./17.78 cm) high. The 2-slot is 1.5U (2.63 in./6.68 cm) high.
- Cost Effective -- Rack-mount products you have already purchased
|
