Products  >  Model 1001MC View Printable

The Model 1001MC NetLinkô SNMP Management Card enables an SNMP workstation to configure and monitor multiple Patton NetLinkô cards racks and their connected standalone units


Features
  • Connects to the SNMP workstation via a 10Base-T Ethernet (RJ-45) connection
  • Uses a standard web browser (Internet Explorer or Netscape Navigator, for example) to configure the HTTP/HTML management screens
  • Supports generic network management software and MIB walking tools
  • Functions as an SNMP proxy agent for Patton NetLink™ rack cards and their remote standalone units
  • FLASH upgradeable through FTP connection
  • Compatible with the following rack cards:
    • Model 1092ARC KiloModem™ 2 or 4-wire Baseband Modem with 2B1Q Encoding
    • Model 1094ARC NetLink 1.152-Mbps HDSL Modem
    • Model 1095RC NetLink 2-wire, 2-Mbps mDSL Modem
    • Model 2701RC G.703/G.704 Network Termination Unit (NTU)
    • Model 2707RC G.703 NTU
    • Model 2710RC T1/FT1 CSU/DSU
    • Model 2715RC G.703/G.704 NTU
    • Model 3088RC 2-wire, 2.3Mbps G.SHDSL Modem NTU
    • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
--Image: Made in USA -- --Image: RACKABLE! Rack Mount Available -- Patton's Model 1001 Telco chassis and rack system offers enterprises and service providers a convenient, cost-effective solution for extending and terminating point-to-point communication links. The 16-slot, 2U-high enclosure supports managed modules, un-managed modules, and redundant power supplies. Managed modules for installation within the Model 1001 chassis include mDSL Model 1095RC, iDSL Model 1092RC, G.SHDSL Model 3088RC, HDSL Model 1094RC, G.703/G.704 Model 2701RC and Models G.703 2707RC. Un-managed modules include VDSL Models 1058RC and 1068RC, Models 1065 and 1080ARC industrial modems, and Models 2158RC and 2168RC Ethernet Extenders. By installing a Model 1001CC control module in each chassis, you can interconnect up to 8 chassis in a daisy-chain and use the Model 1001MC to manage the entire NetLink™ system via a single IP address.

Applications

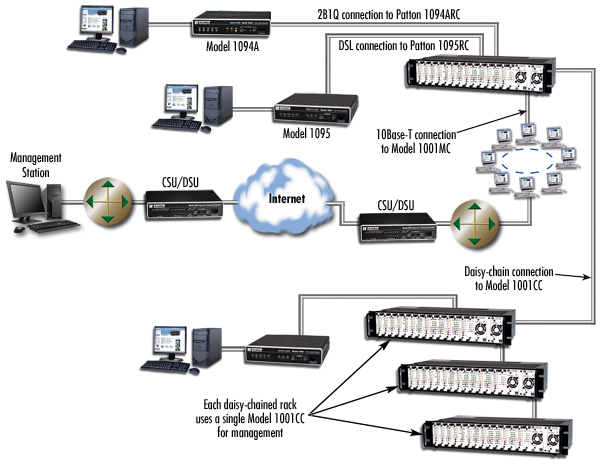

The Model 1001MC uses a 10Base-T Ethernet port to connect to a local LAN (or to any location in the world via the Internet). Management can be performed using any SNMP station or web browser with the internal HTTP/HTML management screens. As shown below, the Model 1001MC can manage multiple racks of Patton NetLink modems using a daisy-chain configuration and a 1001CC in each additionally managed rack.

Model



Ordering
# Model # Description Availability
1 1001CC RACK CONTROL CARD Contact us for Availability
2 1001MC RACK MANAGEMENT CARD Contact us for Availability
3 1001R 2U 16-SLOT RACK, CHASSIS ASSEMBLY Contact us for Availability
4 1001R14P/R48V 2U RCK ASSY,REDUNDANT 48V DC Contact us for Availability
5 1001R14P/RUI 2U RCK ASSY, REDUNDANT 120-220 VAC Power Supplies Contact us for Availability
6 1001R16P/48V 2U RACK ASSMBLY W/48V PS Contact us for Availability
7 1001R16P/UI 2U RACK ASSMBLY W/120-220 VAC PS, 16 SLOT Contact us for Availability
8 1001RPEM-RAC REDUNDANT AC ENTRY MODULE Contact us for Availability
9 1001RPEM-RVDC REDUNDANT VDC ENTRY MODULE Contact us for Availability
10 1001RPSM-R48V REDUN 48VDC POWER SUPPLY Contact us for Availability
11 1001RPSM-RUI REDUN UNIVERSAL POWER SUPPLY Contact us for Availability
