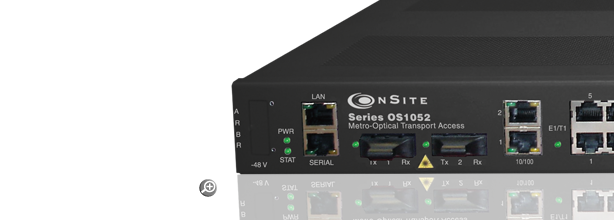

Patton OnSite™ Series Model OS1052 Dual STM-1 trunks with 8 to 50 T1/E1 and 2 to 18 Ethernet client ports

Overview
The Patton OnSite Series Model OS1052 is an ultra-compact next-generation flex access node. The OS1052 is the platform of choice for economical deployment of access points with low initial count of E1 and Ethernet ports, but with flexibility for future capacity expansion and simple migration toward converged IP service networks. The OS1052 supports 3G/4G mobile network backhaul, secure and scalable carrier Ethernet transport, multi-service aggregation, quad-play connectivity (voice, data, video and mobility), and technology mediation among TDM, ATM, and Ethernet.

The advanced modular design of the OnSite OS1052 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.

The OS1052 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control.

The base OS1052 system is configured with 2 STM-1, 8 E1/T1 and 2 Ethernet 10/100Base-TX.

Two expansion module slots are included for increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.

In only one RU, the OS1052 supports expansion up to 50 E1 ports and 18 Ethernet 10/100 ports

Example combinations of service and port capacity expansions

Model OS1052 expansion examples

Applications
The advanced modular design of the Patton OnSite OS1052 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.

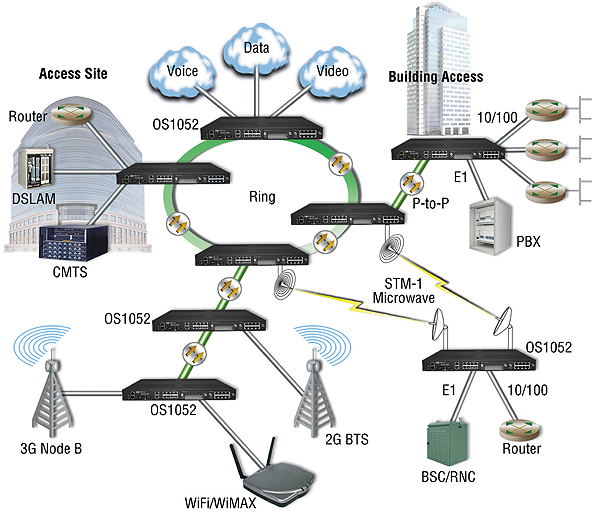

OnSite™ OS1052 application diagram

The base OS1052 system is configured with:

2 STM-1
8 E1/T1
2 Ethernet
10/100Base-TX

Two expansion module slots allow increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.

In only one RU, the OS1052 supports expansion up to:

50 E1 ports
18 Ethernet 10/100 ports

The OS1052 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control. The OS1052 is easily configured and managed through a simple Web-based GUI interface or the scalable Patton OnSight NMS.

Features

Ultra-compact design (1 RU)—STM-1 trunks, built-in E1/T1 and Ethernet client ports, and integrated non-blocking cross-connect
Highly flexible configurations—Terminal mux and ADM, linear MSP 1+1 protection, point-to-point, linear ADM, ring ADM, and SNCP/I and SNCP/N
Next-generation SDH features—GFP encapsulation, virtual concatenation (VCAT), LO/HO, LCAS
Layer 2 packet intelligence—Ethernet MAC with flow control, VLAN, rate limiting, Q-in-Q, and QoS

Ordering

Sorry!
Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at
sales@patton.com or +1 301 975 1000
