Model 2720 This legacy product is not recommended for new installations.
To connect T1/Fractional T1 Services to RS-530, V.35, or Ethernet Interfaces, please consider the 2701A/I T1 to Ethernet bridge.

This legacy product is not recommended for new installations. To connect T1/Fractional T1 Services to RS-530, V.35, or Ethernet Interfaces, please consider the 2701A/I T1 to Ethernet bridge.

Contact Us
Direct: +1 301 975 1000
Direct: +1 301 975 1007
Have Us Contact You
 Connect with us
Twitter Linkedin Facebook Youtube

View All






--Image: Made in USA -- --Image: RACKABLE! Rack Mount Available --
  • Connect to Any Terminal Interface—Smooth clock V.35 and EIA-530 connection, and 10Base-T Ethernet
  • VT-100 Control Port With Full DS0 Mapping—nx56/nx64 channel selection from 64 kbps to 1.544 Mbps
  • Full Diagnostics Included 44 Mbps—V.52 511 BERT, 2047, QRSS, V.54 loopbacks, and CO loop-up/loop-down diagnostics
  • Eliminates Routers—Bridge Ethernet across the WAN using industry standard PPP/BCP
  • Common framed n x 56/64 kbps rates up to 1.536 Mbps
  • Standalone or Rack Solutions—Available to suit your needs: small desktop unit, or high density rack cards
  • Power it Anywhere—Universal input AC (90–240 VAC), and -48 VDC power supply options)
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

The NetLink Model 2720 Series T1/FT1 CSU/DSU provides high speed WAN connectivity in a compact (1.50H x 4.17W x 5.84D inches) full feature standalone package.


The Netlink 2720 is an excellent choice for terminating leased lines, Frame Relay backbones, Internet access, and LAN-to-LAN services. When terminating a T1- dedicated digital circuit, the NetLink 2720 supports nx56/nx64 kbps T1 framing and converts to V.35, RS-530, or 10Base-T Ethernet interfaces.

The Netlink 2720 supports D4/ESF framing options and AMI/B8ZS/B7ZS line coding. Data rates, framing, and coding options are programmed by DIP switches or from a VT-100 terminal with menu-driven software. A full range of system and diagnostic features make setup simple and easy.

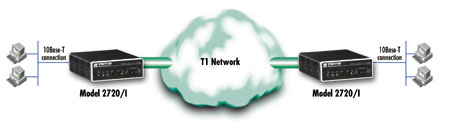

The model 2720/I (10 Base-T Ethernet Bridge) is particulary suited for LAN-to-LAN connection without the need for routers! MAC forwarding and PPP/BCP built-in bridging provides seamless connection over the T1 link.

The PPP/BCP features also enable customers to extend a router's serial interface and connect to a remote Ethernet LAN over the T1 network.

The 2710RC is the rack card companion to the 2720. Offering all features found in the 2720, the 2710RC fits in a 19, 2u high rack housing up to 16 rack cards. See the 2710RC web page for more information.



Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at or +1 301 975 1000
