Rack Mount Chassis

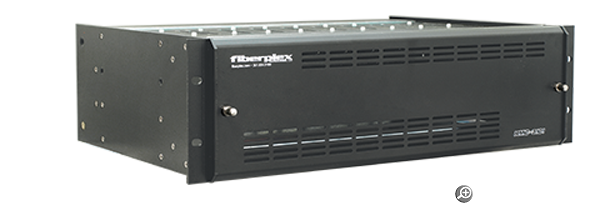

FiberPlex RMC-3100 19" 3U rack mount chassis for FOI series units

Overview

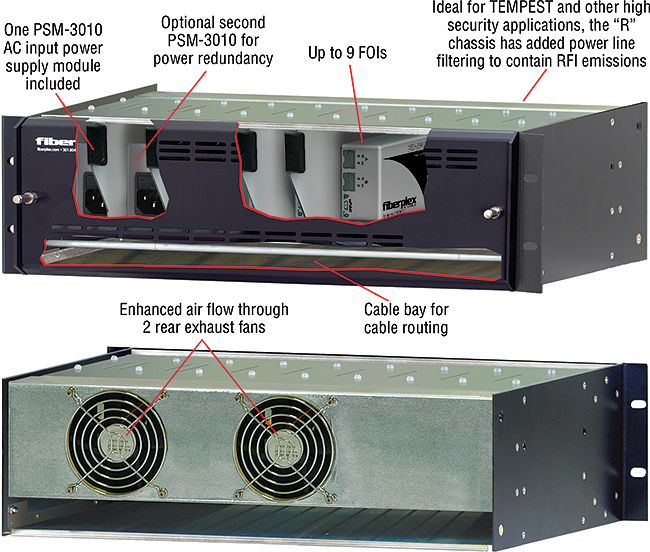

The RMC-3101 provides up to nine available slots for any FOI device or TDU-4000. Slot 10 must be occupied by a PSM-3010 power supply module which is included. An optional second PSM-3010 can be added for power redundancy, leaving eight available slots for FOI devices or TDU-4000s.

A cable bay is provided for cable routing cables to the inside of the rack, and enhanced air flow is facilitated through two rear exhaust fans and a vented front panel. An RMC-3102 is identical to the RMC-3101 with the addition of an optical patch bay mounted on the rear. Each FOI is installed using a CMA-3002 chassis mount adapter, which slides the FOI into the slot, ensuring correct alignment inside the RMC-3101.

For TEMPEST or other high security applications Patton recommends the RMC-3101R.

Applications

Features

• Up to 9 FOI units can be mounted inside this chassis
• Each FOI device is easily accessible through a removable front panel
• Enhanced cooling is performed using two exhaust fans mounted on the rear of the chassis
• Power redundancy is available through an optional second power supply module.
• Options for TEMPEST grade RFI power filtering available

Ordering

# Model # Description Availability 1 RMC-3101 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, (requires CMA-3002 for FOI type isolator mounting) General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Power Supply PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) 2 RMC-3101-A 19 in  Rack mount chassis, 5 1/4 in  (3U) for up to 10 ICM-2111 level converters, (requires CMA-3001 for ICM-2111 mounting) Special Order 3 RMC-3101-R 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, two power line filters, (requires CMA-3002 for FOI type isolator mounting); 2 x US power cords General Availability    Accessories Additional Charge: Power Supply PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) 4 RMC-3101-R-EU 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, two power line filters, (requires CMA-3002 for FOI type isolator mounting); 2 x Euro power cords General Availability    Accessories Additional Charge: Power Supply PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) 5 RMC-3101-R-UK 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, two power line filters, (requires CMA-3002 for FOI type isolator mounting); 2 x UK power cords General Availability    Accessories Additional Charge: Power Supply PSM-3010   (Qty: 1) Spare \ Redundant power supply F/U/W RMC-3xxx series rack mount chassis, 90-260 VAC, 40-400 Hz input, 75 Watts Rack CMA-3002   (Qty: 1) Chassis Mounting Adapter for size 2000, 3000, or 4000 series FOI type isolators (to be installed in RMC-3xxx series chassis) 6 RMC-3102 19 in EIA Rack mount chassis, 5.25 in (3RU) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, front access, includes one PSM-3010 power supply, cooling fans, ST optical patch panel, (requires CMA-3002 for FOI type isolator mounting) General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) 7 RMC-3201 19 in  Rack mount chassis, 5 1/4 in  (3U) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, rear access, includes one PSM-3010 power supply, cooling fans (requires CMA-3002 for FOI type isolator mounting) Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) 8 RMC-3201-R 19 in  Rack mount chassis, 5 1/4 in  (3U) for up to 9 size 2000,  3000, or 4000 series FOI type isolators, rear access, includes one PSM-3010 power supply, cooling fans, two power line filters, fans (requires CMA-3002 for FOI type isolator mounting) Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K)
