Line Level Stereo Audio (Analog) or E&M + Data (RS-232/422/485) Systems

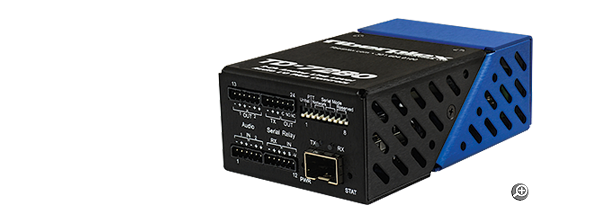

FiberPlex TD-7280 Fiber Optic Isolator/Converter/Modem - line level stereo audio or E&M with data and contact closures; industrial packaging

Overview
Elegantly simple yet packed with an advanced feature set, the TD-7280 is a powerful problem solver when it comes to routing audio or transporting E&M signals. The unit converts line level, stereo analog audio to fiber for long or short haul transport. In addition to the audio, a multi-format serial data connection (RS-232/422/485) and a bidirectional pair of ‘form C’ contact closures are included.

The combination of audio and signaling provides a seamless solution for 4-wire E&M applications, push-to-talk, intercom, audio distribution, railway signaling, and more

Various advanced routing and networking options are available via DIP switch setting.

In point-to-point mode basic audio inputs one unit map directly to audio outputs on the other unit and serial data and contact closures are a direct connection.

In Broadcast Mode one unit is configured as the master, which sets the clock and sampling rate. Analog and serial inputs to the master are sent to all the slaves, which output the data on their respective ports. No communication is sent from the slaves to any other units.

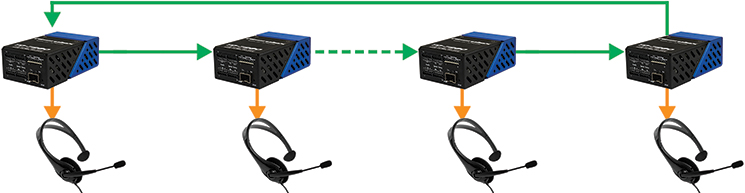

In Intercom or “Loop mode” one unit is configured as the master, which sets the clock and sampling rate. It polls the loop, with each unit in the loop adding its own input to the aggregated sample, gated by its push to talk, if enabled. When the sample returns back to the master, it then sends out that aggregated sample as the output for all units in the loop. All units forward the aggregated output around the loop until it returns to the master, which discards it. Serial data from the master is replicated on all slaves, and serial data from the slaves is aggregated to output on the master.

Applications
Applications for the TD-7280 include Analog E&M, Audio Tie Lines with Control, Intercom/Loop and Railroad signaling.


E&M Type IV applications




Audio Tie Lines + Control applications




Intercom/Loop applications




Railroad Signaling applications

Features

• Supports Balanced and Unbalanced Audio I/O
• Supports E&M (Ear and Mouth) Types II–V
• High Quality 24-bit audio
• Ultra-wide DC to 45 kHz Frequency Response
• Serial Data Rates from 0 to 1 Mbps
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting.
• Power Adapter Included

Ordering

# Model # Description Availability 1 TD-7280-C Line Level Stereo Audio Transceiver with PTT, Serial Data and Controls, TD Package, SFP Cage Only, Includes AC  Power Adapter General Availability    Accessories Power Plugs & Cords 12-129   (Qty: 1) North American plug for interchangeable power supplies 12-130   (Qty: 1) European plug for interchangeable power supplies 12-131   (Qty: 1) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 1) Australian plug for interchangeable power supplies 12-201   (Qty: 1) Korean plug for interchangeable power supplies 12-202   (Qty: 1) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter SFP SFP-OC SFP optical modules for standard digital communications Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit PSA-T913   (Qty: 1) Replacement Power Adapter for TD Series Modules, 9 VDC, 1.3 A, 100-240 VAC TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TD-7280-L22 Line Level Stereo Audio Transceiver with PTT, Serial Data and Controls, TD Package, 1310nm Multimode, LC optics, Includes AC  Power Adapter General Availability    Accessories Power Plugs & Cords 12-129   (Qty: 1) North American plug for interchangeable power supplies 12-130   (Qty: 1) European plug for interchangeable power supplies 12-131   (Qty: 1) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 1) Australian plug for interchangeable power supplies 12-201   (Qty: 1) Korean plug for interchangeable power supplies 12-202   (Qty: 1) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 25000003   (Qty: 1) Wall Mount Power Supply Adapter; 100-240VAC; 12V, 2A, 2.5mm plug Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 3 TD-7280-L5B Line Level Stereo Audio Transceiver with PTT, Serial Data and Controls, TD Package, 1300 nm Singlemode, LC optics, Includes AC  Power Adapter General Availability    Accessories Power Plugs & Cords 12-129   (Qty: 1) North American plug for interchangeable power supplies 12-130   (Qty: 1) European plug for interchangeable power supplies 12-131   (Qty: 1) United Kingdom plug for interchangeable power supplies 12-132   (Qty: 1) Australian plug for interchangeable power supplies 12-201   (Qty: 1) Korean plug for interchangeable power supplies 12-202   (Qty: 1) India Type D plug for interchangeable power supplies Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
