Rack Mount Chassis FiberPlex TDP FiberPlex 6-Position Front Connect Rack (TDP) For TD Series Modules With 16-Channel Modular Front Panel
FiberPlex 6-Position Front Connect Rack (TDP) For TD Series Modules With 16-Channel Modular Front Panel
Overview

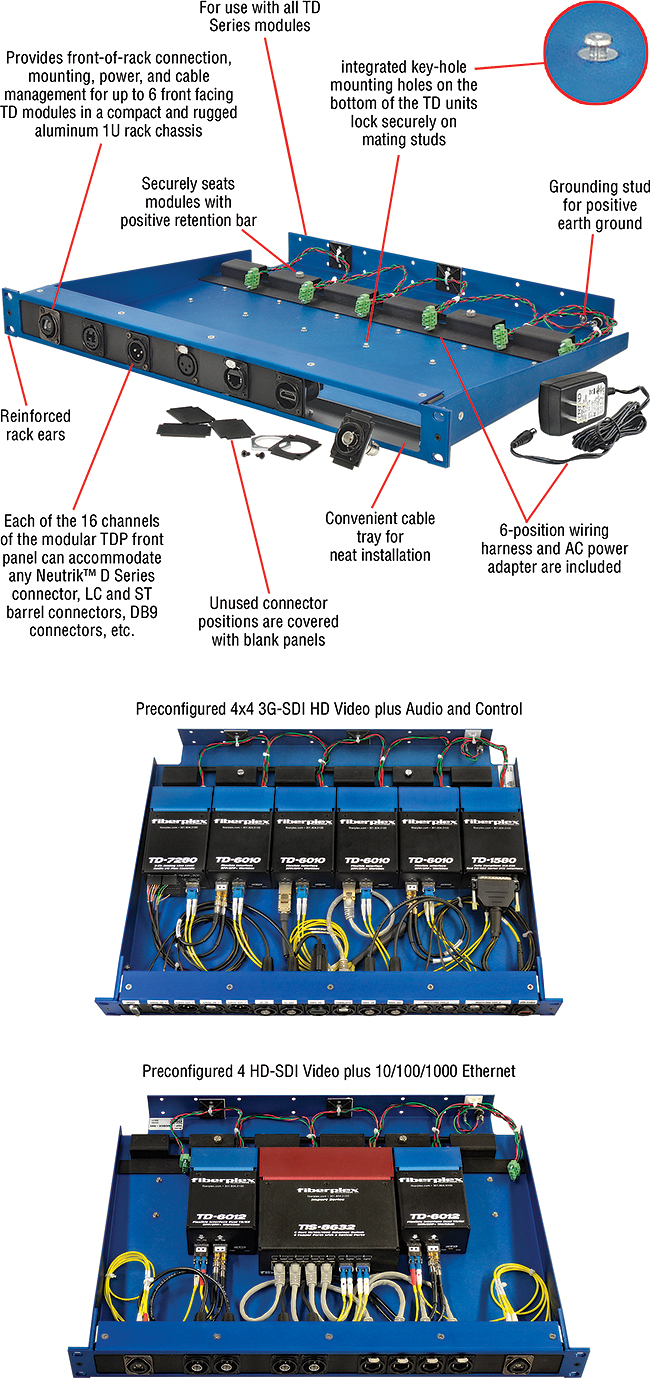

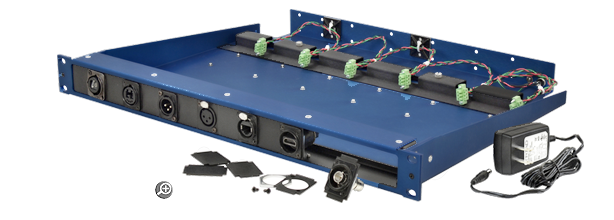

Complementing the flexibility of the FiberPlex ‘TD Series’ of fiber optic modules, the TDP provides front-of-rack connection, mounting, power, and cable management for up to 6 front-facing TD modules in a compact and rugged aluminum 1U rack. Each of the 16 channels of the modular TDP front panel can accommodate any Neutrik™ D Series connector, LC and ST barrel connectors, DB-9 connectors, etc. The unused positions are simply fitted with a blank panel. The integrated key-hole mounting holes on the bottom of the TD units lock securely on mating studs while a rear retention bar holds them securely in place. A 6-position power wiring harness and included power adapter provide, not just 9 VDC power, but a positive earth ground to the modules via 3-position Phoenix™ locking power connectors. Managing all that cabling and fiber can sometimes be quite a chore, the TDP allows a simple solution to put maximum capacity and flexibility into a single 1U space.
Applications
Datacom
Broadcast
SCADA
A/V Installations
Mobile Studio
Features
Provides mounting and power for up to 6 single-wide or 3 double-wide TD Series modules
Perfect for front-of-rack connections
Accommodates up to 16 connector positions
Plates available for standard Neutrik™ D Series connectors, LC and ST barrels, DB-9, etc
Selected connectors included
Reconfigure in minutes
Securely seats modules with positive retention bar
Power adapter and wiring harness included
Convenient cable tray for clean installation
Grounding stud for positive earth ground
Reinforced rack ears
Ordering
#
Model #
Description
Availability
1
TDP_SA
TD Modular Panel, 1U
General Availability
Accessories
Additional Charge:
Power Plugs & Cords
12000186 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)
CON,POWER,PLUG,MEGA MJSW,AUS
Provides mounting and power for up to 6 single-wide or 3 double-wide TD Series modules
Perfect for front-of-rack connections
Accommodates up to 16 connector positions
Plates available for standard Neutrik™ D Series connectors, LC and ST barrels, DB-9, etc
Selected connectors included
Reconfigure in minutes
Securely seats modules with positive retention bar
Power adapter and wiring harness included
Convenient cable tray for clean installation
Grounding stud for positive earth ground
Reinforced rack ears
Complementing the flexibility of the FiberPlex ‘TD Series’ of fiber optic modules, the TDP provides front-of-rack connection, mounting, power, and cable management for up to 6 front-facing TD modules in a compact and rugged aluminum 1U rack. Each of the 16 channels of the modular TDP front panel can accommodate any Neutrik™ D Series connector, LC and ST barrel connectors, DB-9 connectors, etc. The unused positions are simply fitted with a blank panel. The integrated key-hole mounting holes on the bottom of the TD units lock securely on mating studs while a rear retention bar holds them securely in place. A 6-position power wiring harness and included power adapter provide, not just 9 VDC power, but a positive earth ground to the modules via 3-position Phoenix™ locking power connectors. Managing all that cabling and fiber can sometimes be quite a chore, the TDP allows a simple solution to put maximum capacity and flexibility into a single 1U space.
Datacom
Broadcast
SCADA
A/V Installations
Mobile Studio
