Ethernet Over Fiber Extender Kits (2-Pack)
FiberPlex TKIT-ETH LAN to Fiber Converter | Ethernet to Fiber Optic Conversion Kit

Overview

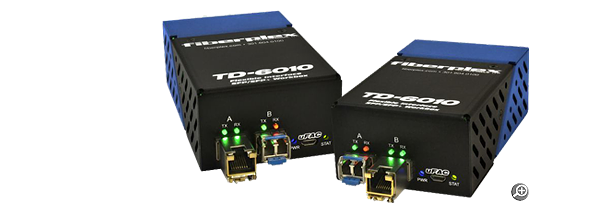

The ‘KIT LAN to Fiber Converter bundles leverage the incredible flexibility of our TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order LAN to Fiber Converter solution for your specific application. The TKIT-ETH 10/100/1000BASE-T Fiber Extender Kit is a pair of fiber extenders supporting the transparent extension of Ethernet. The resulting link will extend the usable distance from just 100 meters (328 feet) to 1.2 miles (2 km) and up to 12.4 miles (20 km) or more over singlemode fiber maintaining near-zero latency.

Applications
Ethernet Fiber Conversion, Extension and Isolation

Features

• Extend Ethernet over Fiber
• Support multimode or singlemode operation
• Up to 1.25 Gbps bi-directional links
• Hot-pluggable SFPs
• Compact RJ-45 connector assembly
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
• AC Power Adapters included

Ordering

# Model # Description Availability 1 TKIT-ETH-M TD-6010 (Pair) (Pair) Preconfigured 10/100/1000 Base-T Ethernet to Multimode Optical Conversion, 1310nm, LC, 2km, Includes AC  Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules 2 TKIT-ETH-S TD-6010 (Pair) Preconfigured 10/100/1000 Base-T Ethernet to Singlemode Optical Conversion, 1310nm,, LC, 20km, Includes AC  Power Adapters General Availability    Accessories Additional Charge: Industrial Solutions TNE-01-A   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes AC Power Supply with powerCON connector TNE-01-D   (Qty: 1) Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, Includes regulated DC Power Supply with no external connector TNE-01-N Enclosure for (1) TD Module, Outdoor Rated, Environmentally Sealed, No power option, intended for direct DC power TNE-03 Enclosure for (3) TD Modules, Outdoor Rated, Environmentally Sealed, Includes DIN AC Supply Power Plugs & Cords 12000186   (Qty: 2) CON,POWER,PLUG,MEGA MJSW, US 12000187   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,EU 12000188   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,UK 12000189   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,AUS 12000239   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,CHINA 12000240   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,ARGEN 12000241   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,KOREA 12000242   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,INDIA,SA 12000243   (Qty: 2) CON,POWER,PLUG,MEGA MJSW,BRAZIL Rack TDP-G   (Qty: 1) TDR-01-AC   (Qty: 1) 1.75 in (1RU) 6 Position Powered Rack for TD Series Modules, Includes AC  Power Adapter Stage / Truss Solutions TTM-G   (Qty: 1) Standalone Operation NS-1001R-19ADJDIN   (Qty: 1) 19" Rackmount Adjustable Depth 35MM DIN Rail Kit TD-DINR   (Qty: 1) DIN Rail Mounting Bracket for TD Series Modules
