FiberPlex WGF Waveguide Filters

Overview
The WGF Series enable the installation of pre-terminated or bundled fiber optic cables into a shielded enclosure or SCIF (Sensitive Compartmented Information Facility) while maintaining the enclosure’s radio frequency isolation integrity.

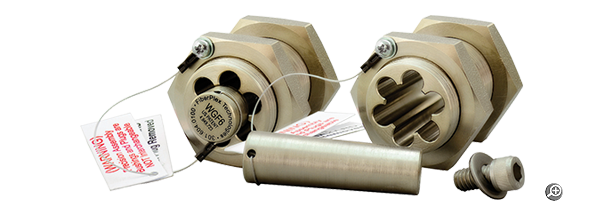

The units feature a patent protected design with removable center plug. Removing the plugs during installation enables connectorized fiber optic cables, or fiber bundles to be inserted into cable-sized slots. When the plug is then installed the units filter RF emissions thus preserving the enclosures shielding characteristics.

The WGF series has 4, 6, or 12 bores that can accept numerous types of pre-assembled fiber optic cables with attached connectors. The WGF-12, has 12 bores and a 27 GHz cutoff; the WGF-6 has 6 bores and a 27 GHz cutoff; the WGF-461 has 6 bores and provides over 100 dB attenuation for frequencies up to 40 GHz compliant with MIL-STD-461; the WGF-4 has 4 bores and a 18.5 GHz cutoff; the WGF-2550 has 6 bores sized to fit openings previously made for DB-25 connectors and has a 31.4 GHz cutoff.

Waveguide extension tubes and nuts (WET, WEB, and WGN) are available for installations where the wall thickness is not standard and therefore too thick for the standard WGF. The diameter and length of the bores on a WGF are precisely calculated to provide a measured attenuation at a specific cutoff frequency.

The WEB and WET extension tubes allow for easier pass-through of fiber through thick walls and penetrations. WEB tubes are made of brass and have external threads that match the WGF-6, WGF-461 and WGF-4. They require a WCN-6 Waveguide Coupling Nut to attach them to the waveguide filter.

The WET tubes are made of PVC and are internally threaded. These attach directly to the Waveguide filters without the need for a separate coupling nut. The WET-18-A fits the WGF-6, WGF-461 and WGF-4. The WET-18-B fits the WGF-12.

The WGN-6 is a nut for the WGF-6, WGF-461 and WGF-4. The WGN-12 is a nut for the WGF-12. The WCN-6 is a brass coupling nut for use with a WEB brass Waveguide Extension Tube (WEB-6, WEB12).

Occasionally the wall of the shielded enclosure, SCIF or chamber that needs to be penetrated is thicker than the calculated length of the waveguide filter. This length limitation has been overcome with the combination of a brass waveguide extension tube and a coupling nut. This solution works perfectly and can accommodate even very thick walls, however it does create a protrusion on either side of the wall that could be at best unsightly and at worst a safety hazard.

The WGN-6 solves this problem by providing an extension solution that maintains the mathematically calculated dimensions of the waveguide while creating a flush mounting solution. The WEN-6 extends the length of a FiberPlex waveguide, creates a clean flush-mount solution and maintains simplicity of the installation.

Applications

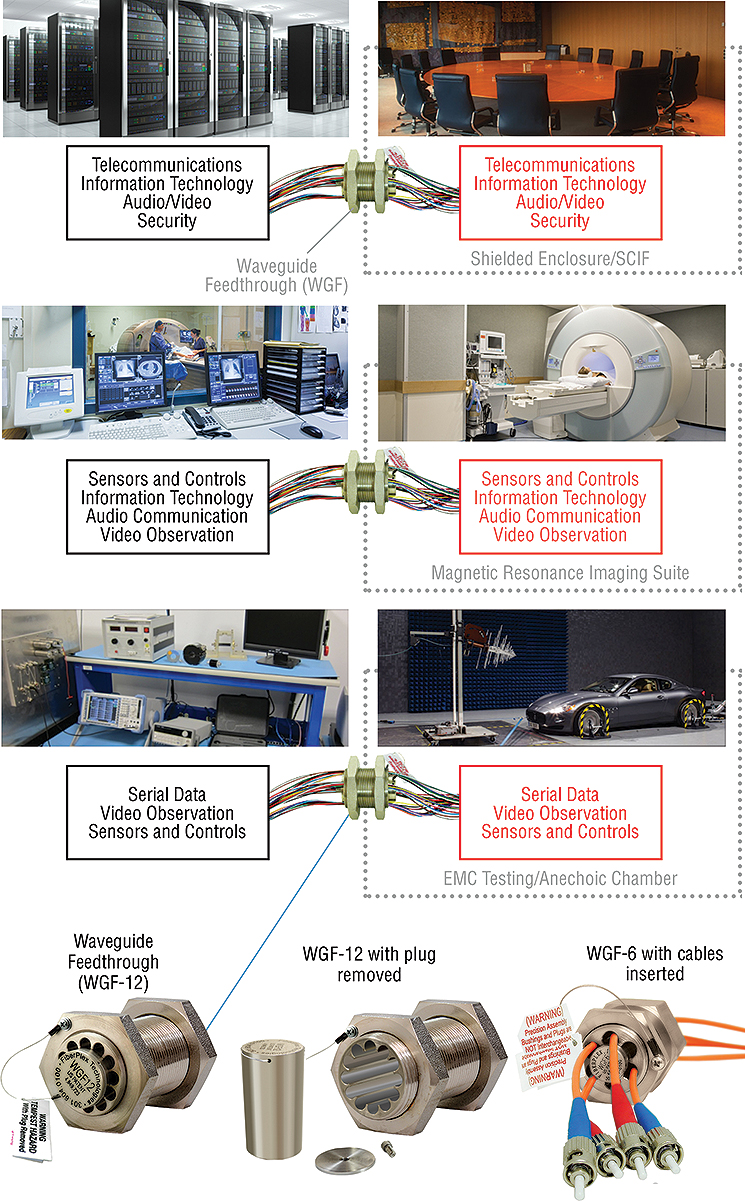

Used in SCIF/TEMPEST facilities, EMC and RF testing chambers, Manufacturing/MRI/Medical rooms and Anechoic Chambers

Features

• Enables pre-terminated fiber cables to be installed in RF enclosures while maintaining radio frequency isolation
• Used in SCIF/TEMPEST facilities, EMC and RF testing chambers, Manufacturing/MRI/Medical rooms and Anechoic Chambers
• 4, 6, or 12 Channel Waveguide Filters Available
• Specific models are designed to exceed NSA 65-6 shielding specifications
• The patented removable core enables easy pass through of pre-terminated cable
• The WGF-461 meets MIL-STD-461 EMC specification

Ordering

# Model # Description Availability 1 WGF-12 Waveguide Filter with removable plug for pre-terminated fibers, 27 GHz Cutoff, 12 bores, includes (2) WGN-12 waveguide nuts General Availability    Accessories Additional Charge: Couplers WGN-12 Wave Guide filter nut for WGF-12 Waveguide Extension WET-18-B Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.625 in, 20 NEF, for extending WGF-12 Waveguide (does not require coupling nut) 2 WGF-2550 Waveguide Filter for D-sub panel replacement, 31.4 GHz Cutoff, 6 bores Contact us for Availability    Accessories Additional Charge: Couplers WCN-6 Waveguide coupling nut, brass, 1 in thick, for connecting WEB-6 to WGF-4, WGF-6, WGF-461 Waveguides WGN-12 Wave Guide filter nut for WGF-12 WGN-6 Wave Guide filter nut for WGF-6, WGF-461 Waveguide Extension WEB-12 Waveguide extension tube, brass, 12 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEB-6 Waveguide extension tube, brass, 6 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEN-6-1.5 Waveguide Extension Nut, for use with WGF-6, WGF-461, WGF-4, 1.50"" long WET-18-A Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides (does not require coupling nut) WET-18-B Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.625 in, 20 NEF, for extending WGF-12 Waveguide (does not require coupling nut) 3 WGF-4 Waveguide Filter, 18.5 GHz Cutoff, .375 in diameter Bore General Availability    Accessories Additional Charge: Couplers WCN-6 Waveguide coupling nut, brass, 1 in thick, for connecting WEB-6 to WGF-4, WGF-6, WGF-461 Waveguides WGN-6 Wave Guide filter nut for WGF-6, WGF-461 Waveguide Extension WEB-12 Waveguide extension tube, brass, 12 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEB-6 Waveguide extension tube, brass, 6 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEN-6-1.5 Waveguide Extension Nut, for use with WGF-6, WGF-461, WGF-4, 1.50"" long WET-18-A Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides (does not require coupling nut) 4 WGF-461 Waveguide Filter with removable plug for pre-terminated fibers, 44.2GHz Cutoff, 6 bores, includes (2) WGN-6 waveguide nuts General Availability    Accessories Additional Charge: Couplers WCN-6 Waveguide coupling nut, brass, 1 in thick, for connecting WEB-6 to WGF-4, WGF-6, WGF-461 Waveguides WGN-6 Wave Guide filter nut for WGF-6, WGF-461 Waveguide Extension WEB-12 Waveguide extension tube, brass, 12 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEB-6 Waveguide extension tube, brass, 6 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEN-6-1.5 Waveguide Extension Nut, for use with WGF-6, WGF-461, WGF-4, 1.50"" long WET-18-A Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides (does not require coupling nut) 5 WGF-6 Waveguide Filter with removable plug for pre-terminated fibers, 27 GHz Cutoff, 6 bores, includes (2) WGN-6 waveguide nuts General Availability    Accessories Additional Charge: Couplers WCN-6 Waveguide coupling nut, brass, 1 in thick, for connecting WEB-6 to WGF-4, WGF-6, WGF-461 Waveguides WGN-6 Wave Guide filter nut for WGF-6, WGF-461 Waveguide Extension WEB-12 Waveguide extension tube, brass, 12 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEB-6 Waveguide extension tube, brass, 6 in long, body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides WEN-6-1.5 Waveguide Extension Nut, for use with WGF-6, WGF-461, WGF-4, 1.50"" long WET-18-A Waveguide extension tube, plastic (PVC), 18 in long, internal body thread size 1.125 in, 18 NEF, for extending WGF-4, WGF-6, WGF-461 Waveguides (does not require coupling nut)
