DigiLink Chassis System

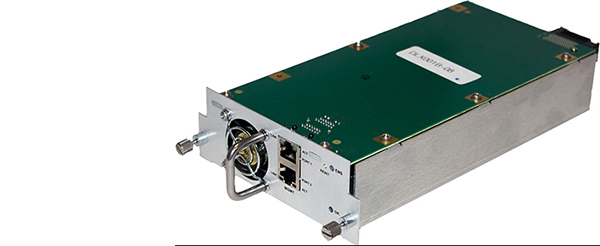

Artel DigiLink DLX001 DLX001 Switching and Routing Module for the DigiLink DL4360x Chassis

The DLX001 Switching and Routing Module adds internal routing of video and Ethernet traffic capabilities to the DigiLink DL4360x media transport chassis.

• Low power consumption: <18 Watts
• Quiet operation with 1 active fan for cooling
• Rugged and reliable, NEBS Level 3 Certification
• Integrated SNMP or HTTP monitoring and management
• Internal video and Ethernet communication eliminates external cross connect cabling and provides for remote routing and configuration

Certifications.

• NEBS Level 3
• GR-63
• GR-1089
• CSA 60950
• EN60950
• FCC Part 15 (Class A)
• CISPR 22

The DLX001 Switching and Routing Module adds internal routing of video and Ethernet traffic capabilities to the DigiLink DL4360x media transport chassis. By eliminating external cross connects while staying in native video or Ethernet format, the DL4360x with the DLX001 Switching and Routing Module streamlines routing and rerouting of video and Ethernet traffic, reducing operational expenses, and providing an ideal solution for remote sites where immediate and timely reconfiguration is required via EMS or NMS.

Related DigiLink products available from Artel:

• DL4360x RU 12-Slot Media Transport Chassis with Active Routing
• DLC055 10 Port Video I/O Media Access Module
• DLC105  SFP Media Access and Fiber Transport Module
