CopperLink 1101 Power over Ethernet (PoE) Ethernet Extender

Energize your cable—Extend Ethernet & Power over Ethernet (PoE) using existing twisted pair(s) or coax. Benefit instantly from the power and flexibility of IP without downtime or infrastructure and installation expenses!

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
CABLE SPOTLIGHT 2016 Product of the Year Award
CABLE SPOTLIGHT 2016 Product of the Year Award
spacer

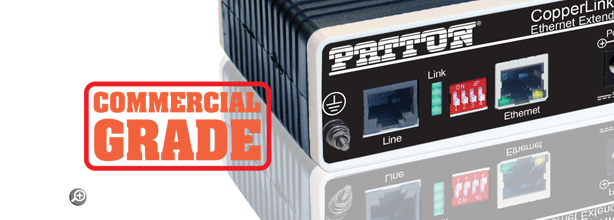

Industrial Grade Power over Ethernet Extenders


CopperLink™ 1101E spacer
CopperLink™ 1101E/IP67
CopperLink™ 1101E-SKD
CALL FOR DETAILS
  • Ethernet Extension—Extends 10/100Base-TX Ethernet over 3300 feet (1005 meters)  using 2-wire, 24-AWG twisted-pair, Cat 3, Cat 5e/6/7, or coaxial cable.
  • Delivers PoE—PowerPlus technology powers up both the remote CopperLink extender and the PoE enabled device connected to it. No power is required at the remote location.
  • Transparent LAN Bridging—Passes higher layer protocols, including 802.1Q VLAN tagged and untagged packets. Fully transparent to various video compression schemes such as WMV, MPEG-4 and MJPEG.
  • Plug and Play—Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex.
  • Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
With global expansion of the Internet of Things (IoT), demand for IP/Ethernet-connected devices is soaring. Billions of devices are already capable of connecting to the Internet. Ethernet—and power-over-Ethernet (PoE) in particular—has grown in popularity because it strikes the perfect blend of speed, cost, and ease of use.

Ethernet, however, presents a few drawbacks that may overshadow the benefits by creating escalating infrastructure costs and system downtime. The Ethernet standard specifies a distance limitation of 328 ft (100 m), which restricts location options for device installation. Standard Ethernet also requires Cat 5 cabling or better, which often leads to installing new cabling infrastructure—involving tearing into walls, ceilings, pavement, and worse.

The CopperLink 1101 kit from Patton enables Ethernet connectivity over previously installed copper infrastructure. The solution breathes new life into circuits previously deployed for such traditional non-IP applications as RS232/485 controls, alarms, CCTV, analog phones, intercom speakers, and others.

Instantaneously install PoE-compliant devices such as wireless access points (WAPs), IP cameras, IP telephones, IP door stations, HVAC controls, and more—with no additional overhead cost. With the extended reach the CL1101 kit provides, you can install your IP terminal equipment exactly where you want it! Flexibility of device location is paramount in such applications as building security, where increased perimeter dimension and expanded spot coverage area are critical.


Applications
Extend Power and Ethernet to compliant or legacy PoE devices using already installed twisted-pair cable or coax


CopperLink™ 1101 application diagram 1


CopperLink™ 1101 application diagram 2



Ordering
# Model # Description Availability
1 CL1101/L/P/RJ45/EUI CopperLink PoE Line Power Extender; 1x 10/100; RJ45 Line; 100-240VAC General Availability

 Accessories
2 CL1101/PAFA/BNC/EUI-2PK CopperLink PoE Extender Kit; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered; AC Adapter 100-240VAC General Availability

 Accessories
3 CL1101/PAFA/RJ45/EUI-2PK CopperLink PoE Extender Kit; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC General Availability

 Accessories
4 CL1101/R/PAFA/BNC/E CopperLink PoE Remote Extender; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered General Availability
5 CL1101/R/PAFA/RJ45/E CopperLink PoE Remote Extender; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered General Availability


CL1100E
# Model # Description Availability
1 CL1101E/L/P/BNC/EUI Industrial CopperLink PoE Line Power Local Extender; 1x 10/100; BNC Line; 100-240VAC General Availability

 Accessories
2 CL1101E/L/P/RJ45/EUI Industrial CopperLink PoE Line Power Local Extender; 1x 10/100; RJ45 Line; 100-240VAC General Availability

 Accessories
3 CL1101E/PAFA/BNC/EUI-2PK Industrial CopperLink PoE Extender Kit; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered; AC Adapter 100-240VAC General Availability

 Accessories
4 CL1101E/PAFA/RJ45/EUI-2PK Industrial CopperLink PoE Extender Kit; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC General Availability

 Accessories
5 CL1101E/R/PAFA/BNC/E Industrial CopperLink PoE Remote Extender; 1x 10/100; 802.3af (mode A); BNC Line; Line Powered General Availability

 Accessories
6 CL1101E/R/PAFA/RJ45/E Industrial CopperLink PoE Remote Extender; 1x 10/100; 802.3af (mode A); RJ45 Line; Line Powered General Availability

 Accessories


CL1100EIP67
# Model # Description Availability
7 CL1101E/IP67/L/3CG/EUI Outdoor CopperLink PoE Local Extender; IP67; 1 x 10/100; 802.3af (mode A); 3 cable gland; 54VDC Input; 100-240VAC to DC Adapter General Availability

 Accessories
8 CL1101E/IP67/R/PAFA/3CG/E Outdoor CopperLink PoE Remote Extender; IP67; 1 x 10/100; 802.3af (mode A); 3 cable gland; Line Powered General Availability
