Industrial Ethernet over Coax| PoE Power-over-Ethernet Extender

Overview

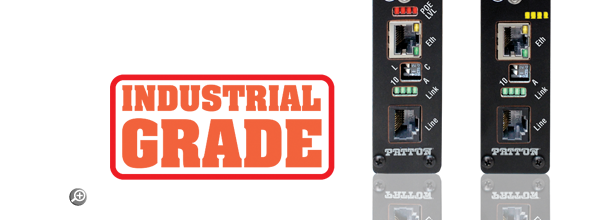

	Industrial Grade Power over Ethernet Extenders



	CALL FOR DETAILS

With global expansion of the Internet of Things (IoT), demand for IP/Ethernet-connected devices is soaring. Billions of devices are already capable of connecting to the Internet. Ethernet—and power-over-Ethernet (PoE) in particular—has grown in popularity because it strikes the perfect blend of speed, cost, and ease of use.

Ethernet, however, presents a few drawbacks that may overshadow the benefits by creating escalating infrastructure costs and system downtime. The Ethernet standard specifies a distance limitation of 328 ft (100 m), which restricts location options for device installation. Standard Ethernet also requires Cat 5 cabling or better, which often leads to installing new cabling infrastructure—involving tearing into walls, ceilings, pavement, and worse.

The CopperLink 1101E kit from Patton enables Ethernet connectivity over previously installed copper infrastructure. The solution breathes new life into circuits previously deployed for such traditional non-IP applications as RS232/485 HVAC and building automation controls, alarms, CCTV, analog phones, intercom speakers, and others.

Instantaneously install PoE-capable devices such as wireless access points (WAPs), IP cameras, IP telephones, IP door stations, HVAC controls, LED lighting and more—with no additional overhead cost. With the extended reach the CL1101E kit provides, you can install your IP terminal equipment exactly where you want it! Flexibility of device location is paramount in such applications as building security, where increased perimeter dimension and expanded spot coverage area are critical.

Applications
Extend Power and Ethernet to compliant or legacy PoE devices using already installed twisted-pair cable or coax

CL1101E

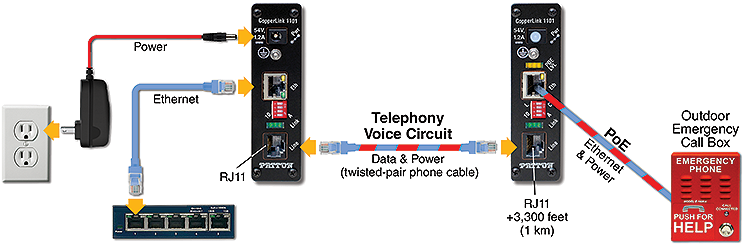

CopperLink conveniently allows high speed, PoE network connectivity over your analog telephony cable. Replace aging analog telephony gear such as phones and intercom equipment with new IP, UC capable endpoints without having to install new cabling or distance concerns typically associated with Ethernet.

CL1101E/TB

CopperLink turns legacy serial cables into PoE network enabled connections. Enjoy the flexibility and power of IoT has to offer. Easily replace legacy serial based SCADA equipment with IP enabled equivalents without having to install new cable.

CL1101E/BNC

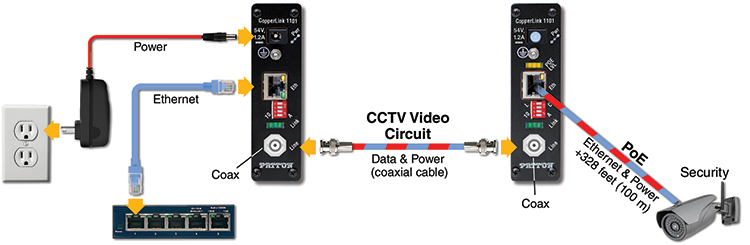

CopperLink turns any analog video cable into a high-speed, PoE network enabled connection. Replace your aging analog camera with new IP cameras without having to install new cabling or power circuits.

ethernet over coax, industrial ethernet extender, ethernet extender | CopperLink™ 1101E application diagram 5

ethernet over coax, industrial ethernet extender, ethernet extender | CopperLink™ 1101E application diagram 2

Features

Ethernet Extension—Extends 10/100Base-TX industrial Ethernet and Ethernet-over-coaxial over 3,300 feet (1005 meters) using 2-wire, 24-AWG twisted-pair, Cat 3, Cat 5e/6/7, or coaxial cable.
Delivers PoE—PowerPlus technology powers up both the remote CopperLink extender and the PoE enabled device connected to it. No power is required at the remote location.
Transparent LAN Bridging—Will pass higher-layer industrial Ethernet protocols such as BACnetIP, EtherCAT and Modbus TCP.
Plug and Play—Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex.
Overvoltage Protection—Overvoltage protection on Line and Ethernet ports prevents damage from ESD (electrostatic discharge), CDE (cable discharge events), and lightning.
Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Ordering

Model #

Description

Availability

CL1101E/L/P/BNC/EUI

Industrial CopperLink PoE Line Power Local Extender; 1x 10/100; BNC Line; 100-240VAC

General Availability

Accessories

CL1101E/L/P/RJ45/EUI

Industrial CopperLink PoE Line Power Local Extender; 1x 10/100; RJ45 Line; 100-240VAC

General Availability

Accessories

CL1101E/PAFA/BNC/EUI-2PK

Industrial CopperLink PoE Extender Kit; 1x 10/100; 802.3at (mode A); BNC Line; Line Powered; AC Adapter 100-240VAC

General Availability

Accessories

CL1101E/PAFA/RJ45/EUI-2PK

Industrial CopperLink PoE Extender Kit; 1x 10/100; 802.3at (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC

General Availability

Accessories

CL1101E/R/PAFA/BNC/E

Industrial CopperLink PoE Remote Extender; 1x 10/100; 802.3at (mode A); BNC Line; Line Powered

General Availability

Accessories

CL1101E/R/PAFA/RJ45/E

Industrial CopperLink PoE Remote Extender; 1x 10/100; 802.3at (mode A); RJ45 Line; Line Powered

General Availability

Accessories

CL1100EIP67

Model #

Description

Availability

CL1101E/IP67/L/3CG/EUI

Outdoor CopperLink PoE Local Extender; IP67; 1 x 10/100; 802.3at (mode A); 3 cable gland; 54VDC Input; 100-240VAC to DC Adapter

General Availability

Accessories

CL1101E/IP67/R/PAFA/3CG/E

Outdoor CopperLink PoE Remote Extender; IP67; 1 x 10/100; 802.3at (mode A); 3 cable gland; Line Powered

General Availability

CL1101

Model #

Description

Availability

CL1101/L/P/RJ45/EUI

CopperLink PoE Line Power Extender; 1x 10/100; RJ45 Line; 100-240VAC

General Availability

Accessories

CL1101/PAFA/BNC/EUI-2PK

CopperLink PoE Extender Kit; 1x 10/100; 802.3at (mode A); BNC Line; Line Powered; AC Adapter 100-240VAC

General Availability

Accessories

CL1101/PAFA/RJ45/EUI-2PK

CopperLink PoE Extender Kit; 1x 10/100; 802.3at (mode A); RJ45 Line; Line Powered; AC Adapter 100-240VAC

General Availability

Accessories

CL1101/R/PAFA/BNC/E

CopperLink PoE Remote Extender; 1x 10/100; 802.3at (mode A); BNC Line; Line Powered

General Availability

CL1101/R/PAFA/RJ45/E

CopperLink PoE Remote Extender; 1x 10/100; 802.3at (mode A); RJ45 Line; Line Powered

General Availability

High Speed Ethernet Extenders
CopperLink CL1100E Industrial Grade Power-over-Ethernet (PoE) Ethernet Extender | up to 3300 ft/1005 meters

Industrial Ethernet Extender delivers Ethernet over coax with Power-over-Ethernet (PoE) using existing twisted pair(s) or Ethernet-over-coaxial cable. Benefit instantly from the power and flexibility of IP without downtime or infrastructure and installation expenses!
