Industrial Copper/Fiber/SFP Ethernet Switches
FiberPlex FP1108E Un-Managed Industrial 10 Gig Ethernet Switch 10 Port, 8 Copper 10/100/1000 + 2 x 10 GigE SFP; industrial packaging



The FP1108E is an industrial-grade, 10-port 10/100/1000 Ethernet switch ideally suited for Industrial Ethernet communications over a high bandwidth 10-Gigabit Fiber trunk.

Overview
Patton’s FP1108E Un-Managed Industrial 10 Gig Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1108E is housed in a sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include eight port 10/100/1000 Ethernet ports on RJ45 connectors and two 10G SFP+ cages that can be utilized for fiber trunk connections. To ensure operation in harsh environments the FP1108E provides additional EFT and ESD protection to prevent any unregulated voltage or harmful transients and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

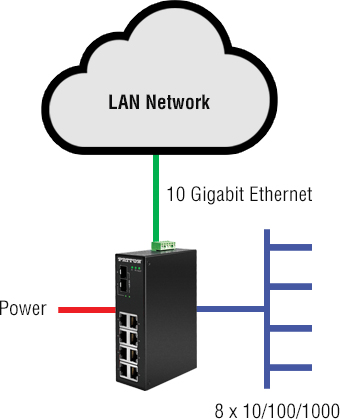

FiberPlex™ 1108E application diagram


Features
  • Supports auto MDI/MDI-X function
  • 10 ports include 8 10/100/1000TX RJ45 ports and 2 10-Gig SFP+ cages
  • Store-and-forward switching architecture
  • 20-Gbps backplane (switching fabric)
  • 16K MAC address table
  • 9,216 bytes Jumbo frame supports
  • ESD protection: 6,000 VDC support
  • Redundant power input design: 12–48 VDC
  • Built-in relay output for power failure detection
  • Surge protection: 2,000 VDC support
  • Operating temperature range—EOT: -40 to 75°C
  • IP30 rugged metal case design
  • DIN-rail and wall mount support
