Managed Industrial Switches
FiberPlex FP2005EBT Industrial Gigabit Managed 90W PoE++ Switch; 7-Port 10/100/1000, 5 Copper + 2 x GigE SFP; Industrial packaging



The FP2005E/BT is an industrial-grade, 7-port 90W Power over Ethernet switch ideally suited for industrial Ethernet communications over a moderate bandwidth gigabit fiber trunk. Light Layer 3 management enables this switch to provide reliable redundant connectivity throughout your network.


Overview
Patton’s FP2005E/BT is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000Tx gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The FP2005E/BT is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The FP2005E/BT is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

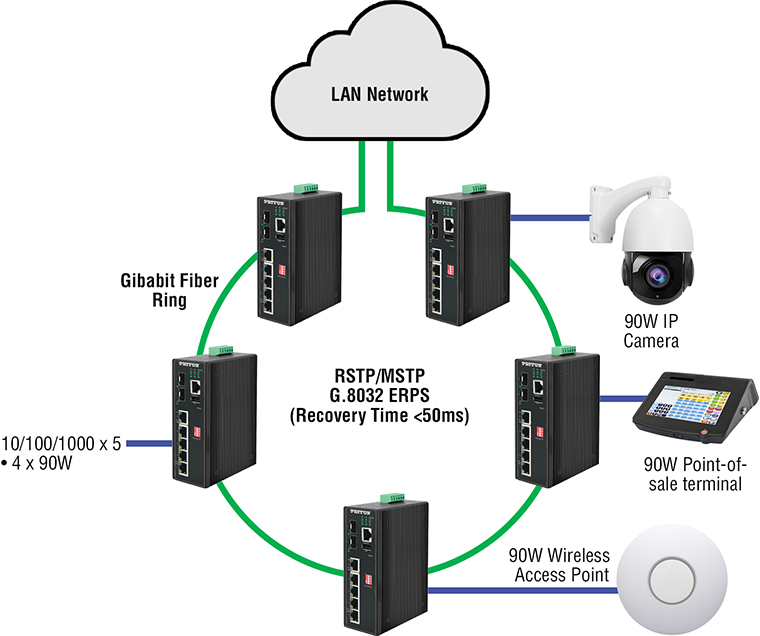

FiberPlex™ 2005E/BT application diagram


Features
  • System Interface/Performance - Supports auto MDI/MDI-X function
    7 ports include 4 10/100/1000TX RJ45 IEEE 802.3bt (90W) ports, 1 10/100/1000TX RJ45 port, and 2 100/1000 SFP cages
    Network redundancy features:
    • Spanning Tree: RSTP/MSTP
    • Ring Protection: G.8032 ERPS
    Traffic prioritization features:
    • IEEE802.1Q VLAN
    • IEEE802.1p; CoS/ToS
    IGMPv1/v2 up to 256 groups
    8K MAC address table
    9.6K Jumbo frame supports
    ESD protection: 6,000 VDC
  • Power Input - Redundant power input design: 4855 VDC
    Built-in relay output for power failure detection
    PoE++ Ping Alarm for PoE+ port power cycling
    Surge protection: 2,000 VDC support
  • Extended Operating Temperature - -40 to 167F (-40 to 75C)
  • Case/Installation - IP30 rugged metal case
    DIN-rail and wall mount support

Ordering
# Model # Description Availability
1 FP2005E/2SFP/4BT/24DC Managed Industrial PoE+ Ethernet Switch; 1 x 10/100/1000; 4 x PoE BT 10/100/1000 (90 watts/port) 2x GigE SFP; - 40 -75C, 12-55VDC input Pre-Order Available
2 FP2005E/2SFP/4BT/48DC Managed Industrial PoE+ Ethernet Switch; 1 x 10/100/1000; 4 x PoE BT 10/100/1000 (90 watts/port) 2x GigE SFP; - 40 -75C, 48-55VDC input Pre-Order Available
