Industrial Copper/Fiber/SFP Ethernet Switches
FiberPlex FP1008E Un-Managed Industrial Gigabit Ethernet Switch 10 Port 10/100/1000, 8 Copper + 2 x GigE SFP; industrial packaging



The FP1008E unmanaged industrial ethernet switch is a din rail ethernet switch for industrial unmanaged ethernet switch applications. This industrial-grade, 10-port 10/100/1000 Ethernet switch is ideally suited for Industrial Ethernet communications over a moderate bandwidth Gigabit fiber trunk.


Overview
Patton’s FP1008E Un-Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1008E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 RJ45 10/100/1000 Ethernet ports and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments the FP1008E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

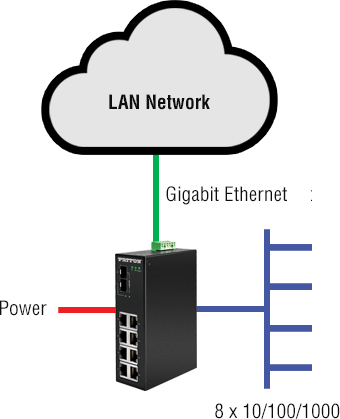

unmanaged industrial ethernet switch, din rail ethernet switch, industrial unmanaged ethernet switch | FiberPlex™ 1008E application diagram


Features
  • Supports auto MDI/MDI-X function
  • 10 ports include 8 10/100/1000TX RJ45 ports and 2 100/1000 SFP cages
  • Store-and-forward switching architecture
  • 20-Gbps backplane (switching fabric)
  • 8K MAC address table
  • 9.6K Jumbo frame supports
  • ESD protection: 6,000 VDC support
  • Redundant power input design: 12–48 VDC
  • Built-in relay output for power failure detection
  • Surge protection: 2,000 VDC support
  • Operating temperature range—EOT: -40 to 75°C
  • IP30 rugged metal case design
  • DIN-rail and wall mount support

Ordering
# Model # Description Availability
1 FP1008E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch; 8 x 10/100/1000 (RJ45); 2 x GigE SFP, -40 to 75C; 12-48VDC Input General Availability

 Accessories
