Industrial Copper/Fiber/SFP Ethernet Switches
FiberPlex FP1008EAT Un-Managed Industrial Gigabit PoE+ Switch 10 Port, 8 Copper 10/100/1000 + 2 x GigE SFP; industrial packaging

Overview
Patton’s FP1008E/AT Unmanaged Industrial Gigabit Power Over Ethernet Switch is a Hardened Switch PoE that supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1008E/AT is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 x RJ45 10/100/1000 Ethernet ports, capable of providing up to 30W of PoE+ to PoE+ enabled end points and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments the FP1008E/AT provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 167°F (-40 to 75°C).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

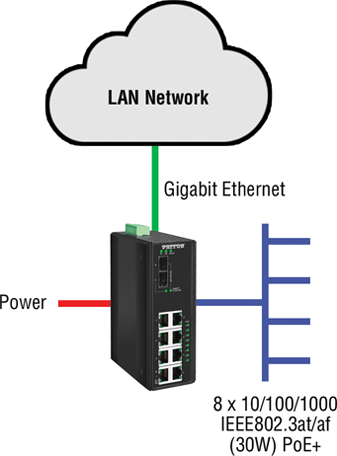

Applications

Features

• Supports auto MDI/MDI-X function
• 10 ports include 8 10/100/1000TX RJ45 IEEE802.3at/af (30W) compliant ports and 2 100/1000 SFP cages
• 20-Gbps backplane (switching fabric)
• 8K MAC address table
• 9.6K Jumbo frame support
• ESD protection: 6,000 VDC support

Ordering

# Model # Description Availability 1 FP1008E/2SFP/8AT/24DC Unmanaged Industrial PoE+ Ethernet Switch; 8 x PoE+ 10/100/1000 (30 watts/port); 2x GigE SFP; - 40 -75C, 12-36VDC input General Availability    Accessories Additional Charge: SFP Data Singlemode SFP SFP-SC24XC-3131-B SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC48XC-3131-B SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC92XC-3131-A SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA Data Multimode SFP SFP-MC03XC-3131-2 SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km SFP-MC24XC-3131-2 SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km SFP-MC24XC-8585-0 SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m SFP-MC92XC-8585-0 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA SFP-SC03XC-3131-B SFP, 155MB TX/RX 1310nm 20km MSA Copper Ethernet SFP SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA 2 FP1008E/2SFP/8AT/48DC Unmanaged Industrial PoE+ Ethernet Switch; 8 x PoE+ 10/100/1000 (30 watts/port); 2x GigE SFP; - 40 -75C, 48-55VDC input General Availability    Accessories Additional Charge: Power Supply 25000044   (Qty: 1) Industrial AC/DC DIN Rail 150Watt Power Supply, HDR-150-48, 48VDC/3.2A output, 85-264VAC input; -30 to 70C 25000045   (Qty: 1) Industrial AC/DC DIN Rail 60 Watt Power Supply, HDR-60-48, 48VDC/1.25A output, 85-264VAC input; -30 to 70C 25000046   (Qty: 1) Industrial AC/DC DIN Rail 480 Watt Power Supply, NDR-480-48, 48VDC/10A output, 90-264VAC input; -20 to 70C 25000048   (Qty: 1) Industrial AC/DC DIN Rail 240 Watt Power Supply, DRP-240-48, 48VDC/5A output, 85-264VAC input; -10 to 70C SFP Data Singlemode SFP SFP-SC24XC-3131-B SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC48XC-3131-B SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC92XC-3131-A SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA Data Multimode SFP SFP-MC03XC-3131-2 SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km SFP-MC24XC-3131-2 SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km SFP-MC24XC-8585-0 SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m SFP-MC92XC-8585-0 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA SFP-SC03XC-3131-B SFP, 155MB TX/RX 1310nm 20km MSA Copper Ethernet SFP SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA
