All-IP eSBC IADs (Integrated WAN)
SmartNode SN5490 eSBC + Router + IAD | Up to 60 SIP Sessions with optional G.SHDSL, ADSL/VDSL, X.21, Fiber

Providing up to 64 transcoded calls, the SmartNode™ 5490 session border controller with built-in WAN router connects the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network.

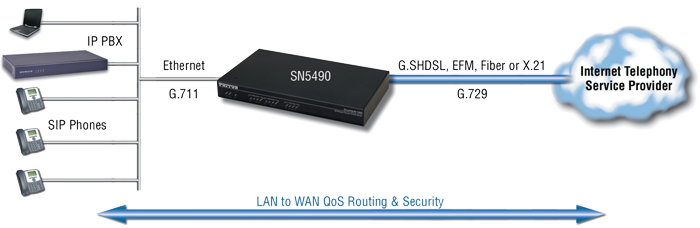

Cloud Enabled The SmartNode 5490 Enterprise Session Border Controller + Router with built-in WAN broadband access is a single integrated session-border-controller platform that bridges the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network. Connecting the Enterprise’s LAN to an Internet TelephonyService Provider (ITSP), the SN5490 session border controller creates a single conduit for multimedia components including voice, video and data. Evolving from Patton’s award winningSmartNode 5400 Series, the next generation SmartNode 5490 Series comes now with IPv6 upgradeable hardware.

Through the SIP Back-to-Back User Agent, the SN5490 provides a common interface into the service provider network providing resolution of any differencesbetween the SIP from the IP PBX and the service provider softswitch. Additionally, the SN5490 provides CODEC transcoding for up to 64 SIP sessions insuring themost efficient use of available bandwidth for both voice and data. Reduce WAN-access bandwidth requirements by converting high-bandwidth G.711 calls on yourLAN into lower-bandwidth G.723 calls for WAN transport.

For additional security, the SN5490 includes SIP-aware NAT and access controlled lists (ACLs) for maintaining secure communications when SIP traffic crosses theEnterprise edge. In addition, routing capabilities include RIP v1/v2, virtual router redundancy protocol (VRRP), loopback interfaces as well as advanced techniqueslike policy based routing (PBR). Furthermore, QoS keeps malicious traffic from effecting bandwidth requirements of PBR-marked essential traffic and DownstreamQoS ensures important voice and fax calls do not get bogged down by such resource hungry lower priority TCP traffic as FTP downloads.

For survivability, the SN5490 is equipped with a link status based routing function. This function, together with SIP registrar, enables survivable telephony servicesto be deployed between intra-office SIP clients in case there is a failure at the SIP provider.

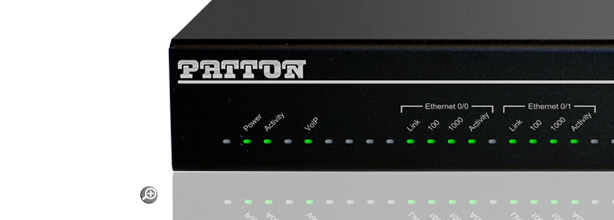

SmartNode 5490

  • Trinity OS - optional, select this when SIP TLS/SRTP is required. Software Comparison
  • VoIP Transcoding—Capacity for up to 64 SIP-SIP calls with transcoding and up to 80 SIP Sessions without transcoding.
  • WAN AccessFiber SFP, G.SHDSL, EFM, Serial X.21, or ADSL WAN interface.
  • IP Routing—RIP v1/v2, VRRP, Policy Based Routing, Loopback/Virtual Interface, NAPT-capable edge router.
  • QoS and Security—Deliver secure, toll-quality voice communications with Patton’s DownStreamQoS™ with adaptive traffic management and shaping—plus secure voice-over-VPN with AES/DES strong encryption and extended ACL capabilities.
  • SIP Registrar - License is included in ALL eSBC products.
  • 10/100/1000 Ethernet—One 10/100/1000 WAN Ethernet port and one 10/100/1000 LAN Ethernet port.
  • Proprietary Software—Utilizes proprietary SmartWare™ Software for added security
  • Flexible mounting options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19)
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Support and Upgrades
All SN5490 models include the following Software Feature Licenses:
  • SIP Registrar
  • IP Routing
  • RTP Transcoding (except /0P model)
  • SIP TLS (SRTP only on /32P & /64P models)

    Please make sure you order the right amount of SIP sessions to come with the units. See optional sessions that can be loaded upon ordering under accessories.

  • Sorry!

    Ordering information for this product is not publicly available at this time.
    Please accept our apology as we regret any inconvenience to you.

    For more information
    about the availability of this product and/or alternative solutions,
    please contact Patton's Product Management team at or +1 301 975 1000
