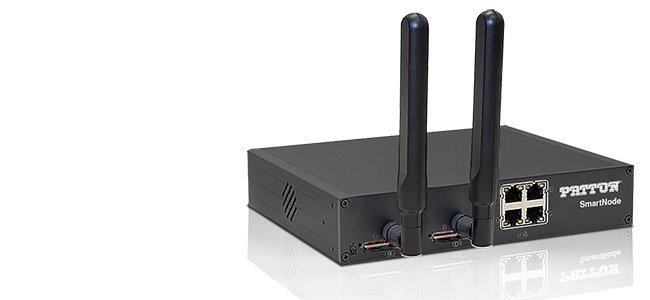

Patton SN5700 Series VoLTE/GSM VoIP Gateway & Session Border Controller.

Overview

The SN5700 Series is a VoLTE Gateway, VoIP Gateway, Session Border Controller & Survivability appliance that delivers reliable, secure, and agile voice connectivity.

The device enables internetworking and interoperability of VoIP/SIP with LTE mobile voice+SMS, as well as PSTN Trunks and legacy End Points. The wireless interfaces are backward compatible with 2G (GSM) and 3G (UMTS) connections. The unit can be ordered with or without telephony ports and can support various densities and mixes of Analog FXS, FXO, ISDN T1/E1 and ISDN BRI.

As a SIP Session Boarder Controller the SN5700 offers SIP compatibility between various IP PBX systems, SIP trunks and end points. Transcoding ensures conversion of TCP to UDP, RTP to SRTP and adaptation between different voice codecs. The device supports up to 128 simultaneous SIP-to-SIP B2BUA sessions and up to 32 transcoded sessions.

SIP communication is secured by separating internal and external SIP network domains, topology hiding, SIP-DDoS Detection & Protection, Firewall Access Control List (ACLs) and SIP Header Manipulation.

Survivability is supported with either LTE Failover or PSTN Trunk Failover or both. SIP calls are automatically switched over to LTE and/or the PSTN in the event of a network, IP or Cloud outage.

Because local SIP calls can be directly routed over LTE, SIP systems can be deployed in locations where there is no Broadband or Internet connectivity. A local VoIP/SIP or legacy telephony system can be deployed anywhere you can get a cell phone signal.

The SN5700 can be used for very cost-effective POTS Replacement since it can deliver local POTS connections and dial tone using any mobile voice service for PSTN connectivity.

Applications

The SN5700 can be used in a wide variety of applications including delivering Plain Old Telephone Services by delivering traditional trunks (Analog, BRI or T1/E1) over GSM or LTE voice calling. The eSBC functionality enables Fixed-To-Mobile convergence by enabling transport of SIP traffic over GSM or LTE, which can be used as a primary line or a failover trunk.

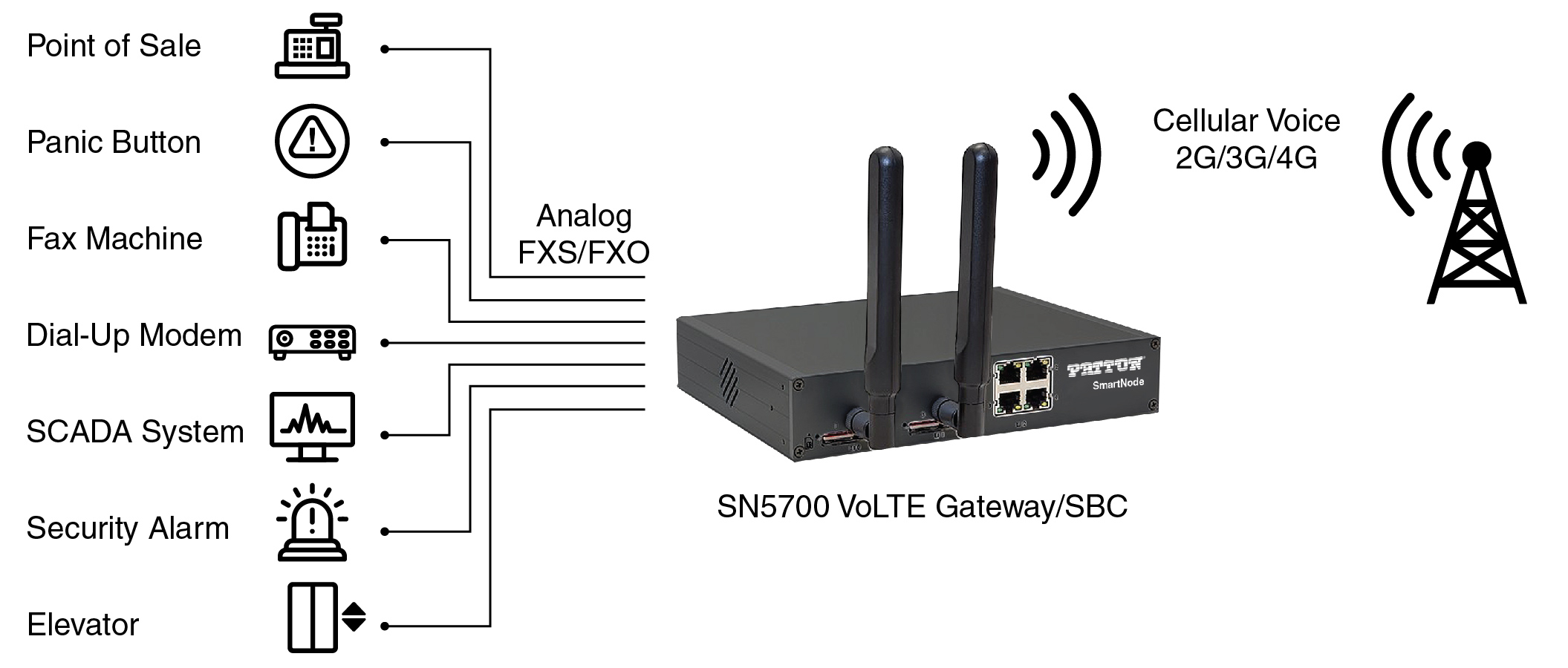

POTs Replacement Using LTE Voice

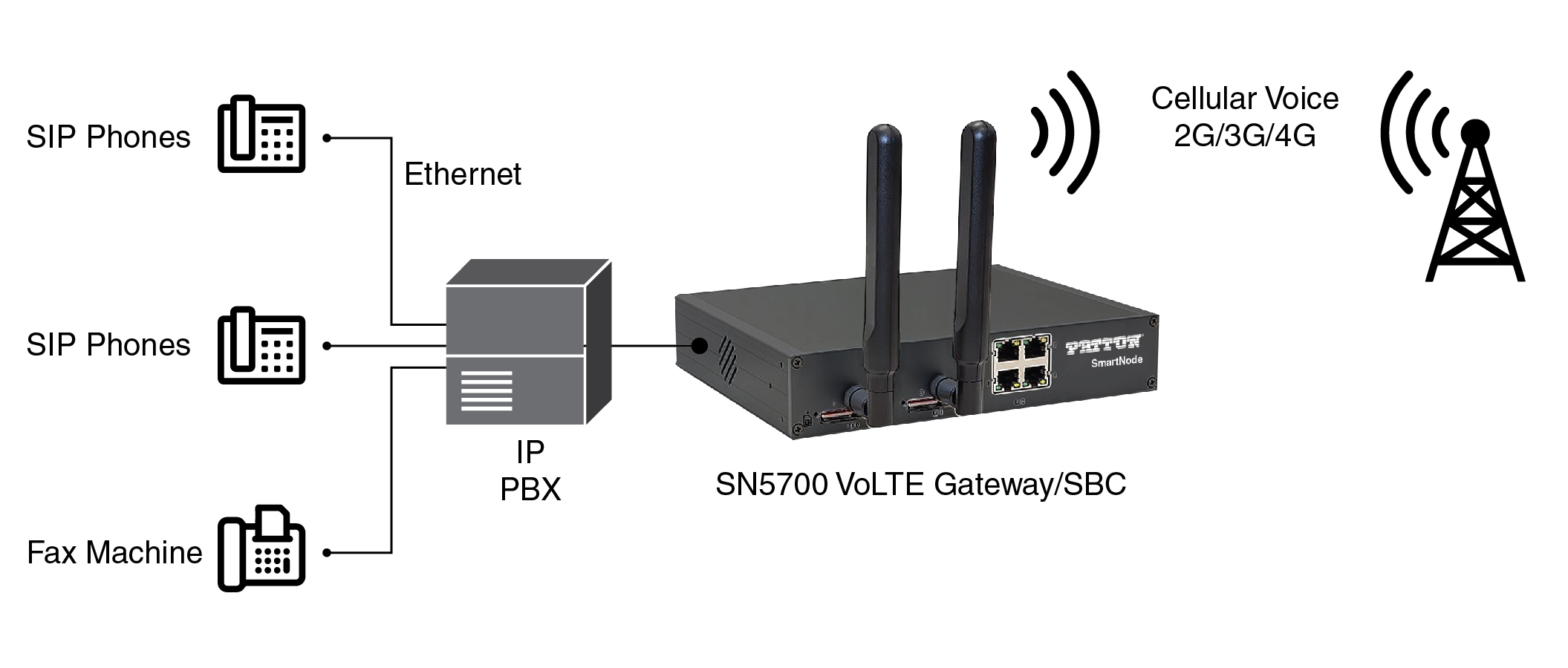

Fixed-To-Mobile (SIP to LTE Voice)

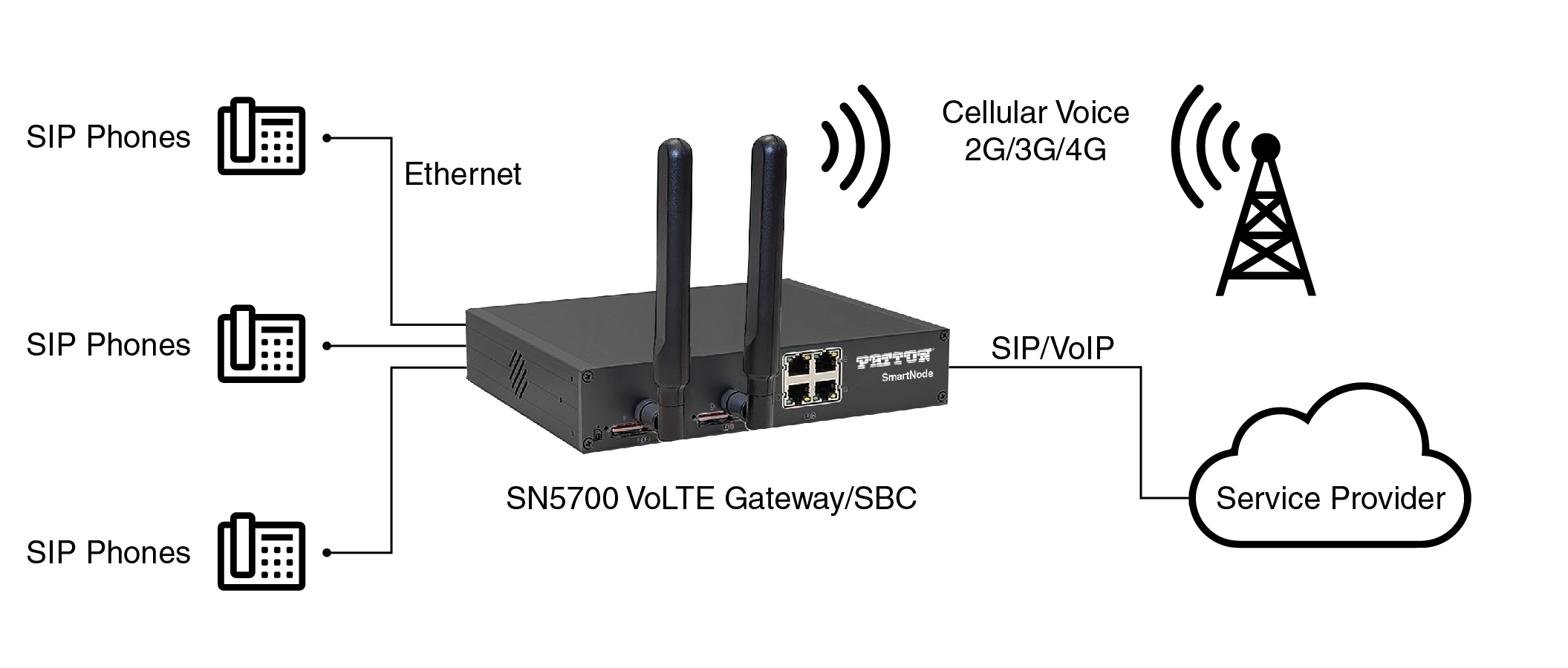

Failover to LTE Voice

Features

Voice Over LTE - Interoperate SIP and LTE mobile voice (2G/GSM, 3G/UMTS, and 4G), with PSTN Trunks and End Points (Analog FXS/FXO, ISDN T1/E1 & ISDN BRI).
All-In-One eSBC - SIP to SIP Session Boarder Control and Security for up to 128 simultaneous sessions and up to 64 transcoded sessions.
LTE Failover - Leverage All-IP SIP with On-Premises or Cloud PBXs using 2G/3G/4G/LTE Telephony for failover/fallback in the event of an IP or Cloud outage.
SIP without Internet - Deploy SIP based on premise systems without an Internet connection. If you have a cell phone signal you have a VoIP phone system.
Least Cost Routing - Powerful call routing allows you to route specific calls over SIP Trunks, PSTN Trunks or Cellular Voice networks based on tariff rate optimization.
Superior SIP Interoperability - Interwork and interoperate legacy and IP PBX systems, circuits, trunks end points with VoIP and Cellular Service Providers.
Easy POTS Replacement - Use any Cellular Voice service to deliver Analog or BRI POTs replacement without the need for broadband (wired or cellular data).
Cyber Secure Telephony - Secure SIP communication by separating internal and external SIP network domains, topology hiding, SIP-DDoS Detection & Protection, Firewall Access Control List (ACLs) and SIP Header Manipulation.
Next-Gen GSM Gateway - Fixed-To-Mobile connectivity allows you to route SIP based or legacy wired voice over the GSM network and vice versa. Route calls between different public or private networks and migrate call terminations from a VoIP network to a GSM network and vice versa.
Transcoding - Easily translate and convert TCP to UDP, RTP to SRTP and adapt between different codecs.
NOTE: - This product does NOT run Trinity Software and is not currently powered by the Patton Cloud.

Why Use Mobile Voice Calling instead of OTT Voice-Over-IP for PSTN connectivity?

GSM and LTE are widely available and set up to support voice calling PSTN services. This makes it appealing for use in certain use-cases because it is adaptable, secure, high quality and easy to implement.

VoIP calling over the Internet is more vulnerable to hacking and other malicious interference. GSM and LTE calling are subject to stringent authentication and security guidelines for mobile operators, so breaches are very rare.

GSM and LTE calling avoid interruption and degradation of data services offering much better quality of service.

VoLTE includes inherent support for HD Voice, making it suitable for mission-critical communications and ensuring high quality user experiences.

GSM and LTE calling offer super-fast call set-up time.

Ordering

#	Model #	Description	Availability
1	SN5702/1E30V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. One (1) T1/E1 PRI, 30 VoIP Calls, and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
2	SN5702/2JS2BIS6V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 2 BRI, 2 FXS, 6 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
3	SN5702/4BIS8V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 BRI, 8 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
4	SN5702/4JO4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 FXO, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
5	SN5702/4JS4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 FXS, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
6	SN5702/EU/1E30V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. One (1) T1/E1 PRI, 30 VoIP Calls, and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
7	SN5702/EU/2JS2BIS6V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 2 BRI, 2 FXS, 6 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
8	SN5702/EU/4BIS8V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 BRI, 8 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
9	SN5702/EU/4JO4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 FXO, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
10	SN5702/EU/4JS4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. 4 FXS, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
11	SN5702/EU/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
12	SN5702/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
13	SN5702/US/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 2 VoLTE ports (US Radio). Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
14	SN5704/1E30V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. One (1) T1/E1 PRI, 30 VoIP Calls, and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC.	Pre-Order Available
15	SN5704/2JS2BIS6V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 2 BRI, 2 FXS, 6 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
16	SN5704/4BIS8V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 BRI, 8 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
17	SN5704/4JO4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 FXO, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
18	SN5704/4JS4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 FXS, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
19	SN5704/EU/1E30V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. One (1) T1/E1 PRI, 30 VoIP Calls, and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC.	Pre-Order Available
20	SN5704/EU/2JS2BIS6V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 2 BRI, 2 FXS, 6 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
21	SN5704/EU/4BIS8V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 BRI, 8 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
22	SN5704/EU/4JO4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 FXO, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
23	SN5704/EU/4JS4V/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. 4 FXS, 4 VoIP Calls and two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
24	SN5704/EU/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
25	SN5704/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 4 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 2x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
26	SN5706/EU/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 6 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). EU Radio. Comes with 3x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
27	SN5706/EUI	SmartNode LTE/GSM VoIP Gateway + SBC with 6 VoLTE ports. Two (2) SIP-SIP calls (SIP b2b UA) upgradeable (max. 128). US Radio. Comes with 3x Antenna Dual NIC and external UI power (100–240 VAC)	Pre-Order Available
