T1/E1/PRI VoIP Gateways

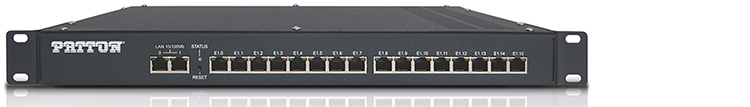

SmartNode SN9000 4, 8 or 16 T1/E1 Media Gateway and Signaling Converter for SIP, SS7, V5.2, DSS1 and R2/CAS



This low-profile Media Gateway and Signaling Converter supports 120, 240 or 480 simultaneous TDM to SIP calls and delivers ANY-to-ANY signaling gateway functions to/from V5.2, SS7, ISDN-PRI and R2/CAS.


Overview
The Patton SmartNode SN9000 Series Gateway is a flexible digital telecom switch for inter-networking TDM and SIP networks. The units support T1/E1 multiplexing, signaling conversion, digital switching, and media gateway functions.

As an SIP-to-SS7 and SS7-to-SIP Media Gateway the unit delivers the ability to integrate TDM equipment, trunks and inter-connects with SS7 into IP, IMS, and NGN networks.  Similarly, the unit can act as a V5.2-to-SIP and DSS1-to-SIP VoIP gateway.

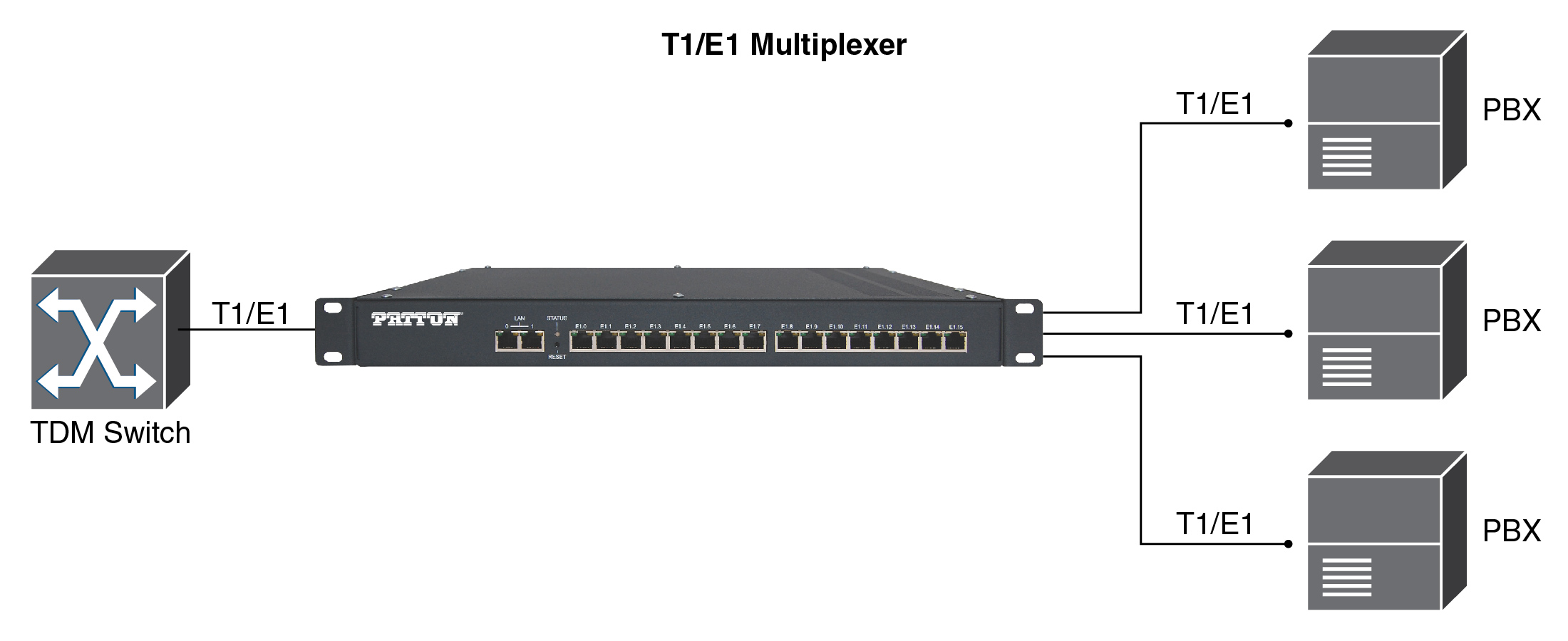

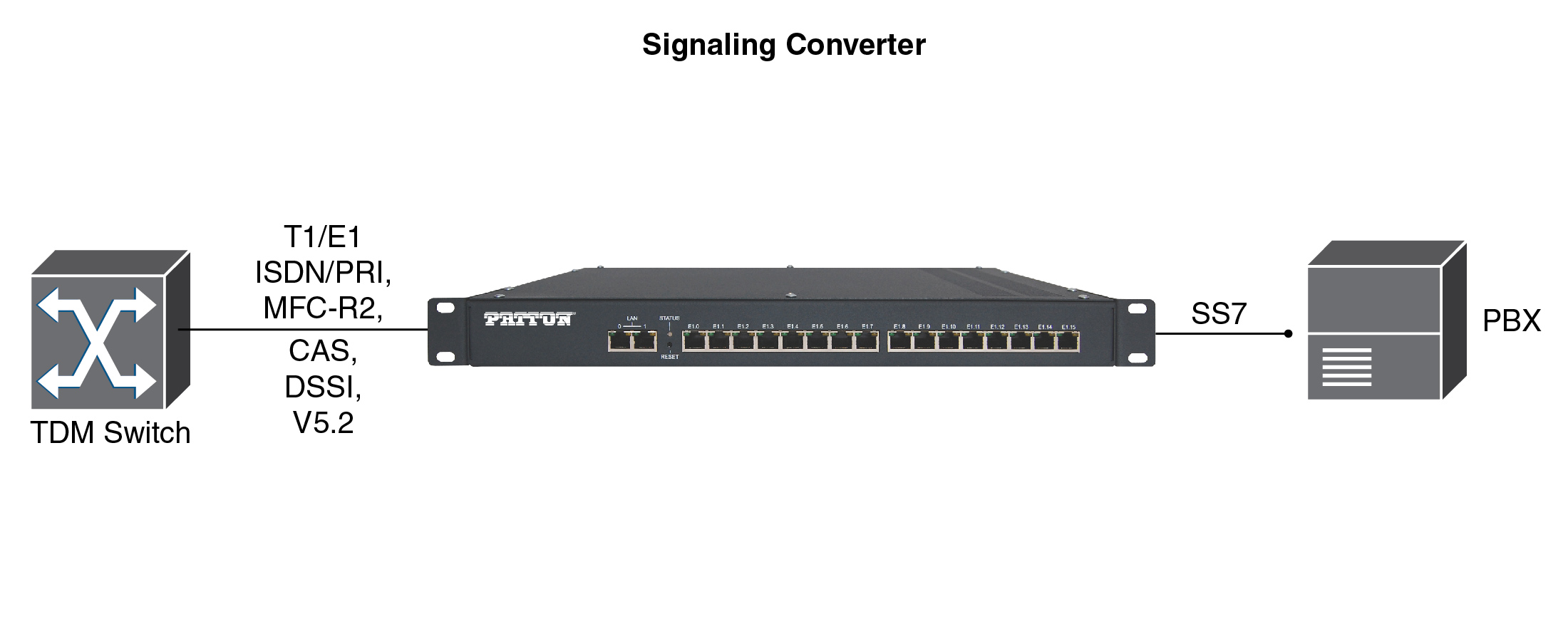

As a Signaling Converter the unit can be used to adapt and interwork between SS7, ISDN-PRI (QSIG), DSS1, V5.2, R2/CAS and Ethernet transferring media across PSTN and/or IP networks. Integrated TDM Multiplexing and Switching provides the ability to cross connect and groom E1 channels between several E1 links.

The unit is equipped with 4, 8 or 16 T1/E1 ports, 2x Ethernet ports, and 1x RS-232 console port. It offers a full suite of routing, switching, signaling, and control protocols including IP SIP, RTP, RTCP, TCP, and UDP. On the TDM side SS7 (MTP2, MTP3, ISUP), ISDN PRI (DSS1), V5.2 (LE/AN mode), and MFC-R2.

The unit offers G.711, GSM, G.723, G.726, G.729 compression codecs, fax-over-IP using G.711 or T.38 fax relay. DTMF (via RFC2833) and, SIP INFO (via RFC 2976) are supported as well as Comfort Noise Generation.

The unit is rack mountable in 1U of space and the unit comes with either dual DC (48/60V) and/or AC (100 to 240 V) internal power supplies.


Applications

The SN9000 is a flexible device used for adaptation of VoIP and TDM telephony networks and equipment.  As a Media Gateway, the devices are used to adapt legacy TDM trunks to SIP/VoIP.  The unit supports all signaling types used with PSTN network and useful for converting signaling protocols or multiplexing TDM channels.





Features
  • Low Profile Media Gateway - 4, 8 or 16 x T1/E1 in a 1U chassis. Small size and our lowest cost-per-port SS7 solution.
  • Fully Loaded - 120, 240 or 480 VoIP channels (depending on model).
  • Full Signaling Stack - Full SS7 signaling supporting MTP2, MTP3 and ISUP. Up to 16 SS7 signaling links. Simultaneously supports SS7, ISDN PRI (DSS1, QSIG, Q.931), V5.2 and MFC R2.
  • Multi-Purpose Signaling Gateway - Can be used as an any-to-any signaling converter from V5.2 to SS7 to ISDN PRI to R2/CAS etc..
  • Full IP Support - SIP, SIP-T, SIP-I, RTP, RTCP, TCP, and UDP.
  • Any-to-Any Switching - Supports TDM-to-SIP, SIP-to-TDM, TDM-to-TDM and SIP-to-SIP with full Call Routing and integrated IP-PBX functionality.
  • Cascadable for High Density - One SS7 signaling link can serve up to 64 E1s.
  • Voice Codecs - G.711, G.723.1, G.726, G.729a/b, and GSM.
  • Voice Quality of Service - Adaptative programmable jitter buffer, VAD, SID, CNG and Hardware Echo Cancellation.
  • Scalable SIP Registration - Registration and authentication for up to 10,000 SIP-subscribers Fax Support - Fax over G.711, T.38 fax relay.
  • Management and Security - SNMPv2 monitoring, RADIUS login, іntegrated firewall, password protected access, and SSH.
  • Survivable - Single or Dual-redundant AC or DC Power.

Ordering
# Model # Description Availability
1 SN9000/12E/RUI SmartNode SmartSignal 12xE1, 360 VoIP Channels Gateway and Signaling Converter for SIP, SS7, V5.2, DSS1 and R2/CAS.  Redundant Universal AC. General Availability

 Accessories

2 SN9000/16E/RUI SmartNode SmartSignal 16xE1, 480 VoIP Channels Gateway and Signaling Converter for SIP, SS7, V5.2, DSS1 and R2/CAS.  Redundant Universal AC. General Availability

 Accessories

3 SN9000/4E/RUI SmartNode SmartSignal 4xE1, 120 VoIP Channels Gateway and Signaling Converter for SIP, SS7, V5.2, DSS1 and R2/CAS.  Redundant Universal AC. General Availability

 Accessories

4 SN9000/8E/RUI SmartNode SmartSignal 8xE1, 240 VoIP Channels Gateway and Signaling Converter for SIP, SS7, V5.2, DSS1 and R2/CAS.  Redundant Universal AC. General Availability

 Accessories

5 SVC-WTE-9000 SN9000 Series 1-Year Maintenance, Support and Enhanced Warranty (Mandatory) General Availability
