Analog VoIP Gateways
SmartNode SN4740 Analog High Density Gateway | 16 to 128 ports



Covering analog port densities of 16, 24, 32, 48, 64, 72, 96, and 128, the SN4740 series can connect analog telephony equipment to SIP-based communication systems for just about any application, hotels, resorts, campus, and sprawling industrial facilities.

Overview
The SmartNode™ 4740 VoIP Gateway provides 16 to 128 analog FXS (FXO coming soon) interfaces to connect phones, fax or PSTN trunk lines to your All-IP based Unified Communication system such as SIP Trunks, IP PBXs, Hosted Solution, etc.

Like every SmartNode, the SN4740 supports every industry-standard Codec to deliver toll-quality voice on every call. Using Patton Cloud's Call Quality Assessment and Monitoring functions, together with E-Mail or SMS notification, it ensures meeting Service Level Agreements at the customer premise with no effort. Which helps in preventing Call Quality related problems, and reduces time resolving them by utilizing the remote access functions of Patton Cloud.

VoIP-over-VPN voice encryption provides secure voice and data via IPsec** or OpenVPN** in addition to SIP/TLS** & SRTP**.

The advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support. The SmartNode survivability suite provides SIP Trunk and PSTN fallback to ensure business continuity in case the IP network fails. In addition, the SmartNode delivers a smooth transition to All-IP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider's number porting process.

Preserve investments in legacy phone equipment while taking the next steps toward unified communications with the SN4740 VoIP Gateway. Providing 16 to 128 FXS (FXO coming soon) interfaces and two 10/100/1000 Ethernet ports, the SN4740 delivers a reliable, cost-effective solution for the Enterprise.


Applications
Apartment Building Application
Apartment Building Application


Hotel Application

Hotel Application





Features
  • Up to 128 FXS - 16, 24, 32, 48, 64, 72, 96, and 128 Analog ports. Long Reach FXS—10 km @ 3REN load. MWI, Caller-ID and AOC support. FXO is coming soon!
  • Message Waiting - Message Waiting Subscription & Notify, MWI – Line reversal, high voltage and FSK support.
  • Full VoIP protocol support - SIPv2, SIPv2 over TLS**, SIPv2 over IPv6, RTP security with SRTP**, T.38, fax and modem bypass, DTMF relay.
  • Easy Management & Provisioning - Patton Cloud orchestrated, HTTPS zero-touch provisioning (Mutual Authentication), SNMP, command line interface and TR-069 for automated mass provisioning for efficient deployments.
  • Call Quality Assessment & Monitoring - Powered by Patton Cloud; Call Quality monitoring ensures SLA is being met at the customer premise. CDR logging includes quality information, duration, Codec, etc. Accessible by Web and API (OSS/BSS integration).
  • eSBC Upgrade Option - Simply by purchasing a software license, the SmartNode becomes a full blown eSBC. This capability prepares your voice network for next-generation SIP services and security.

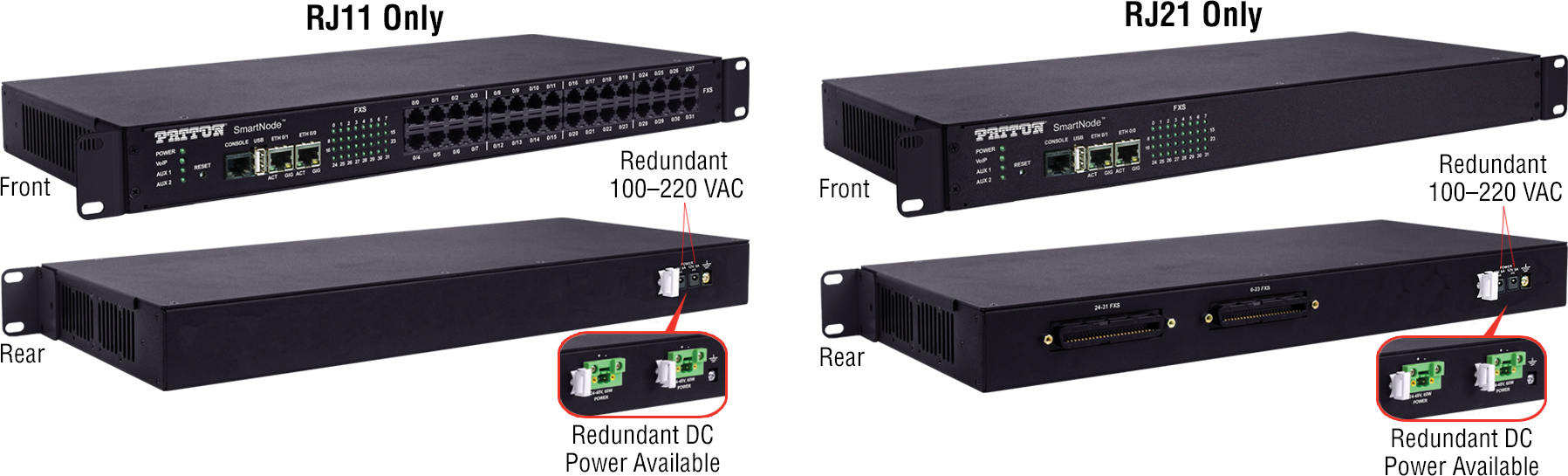

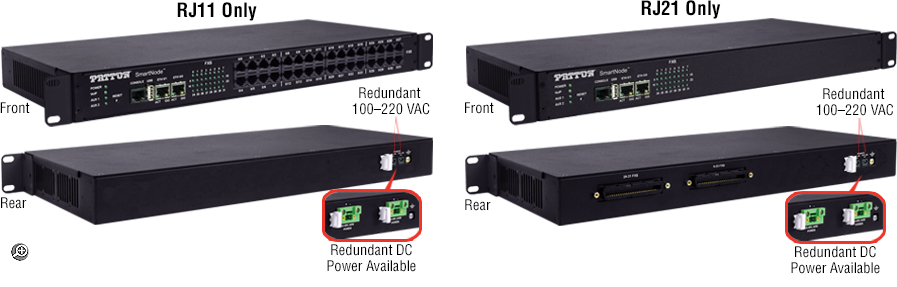

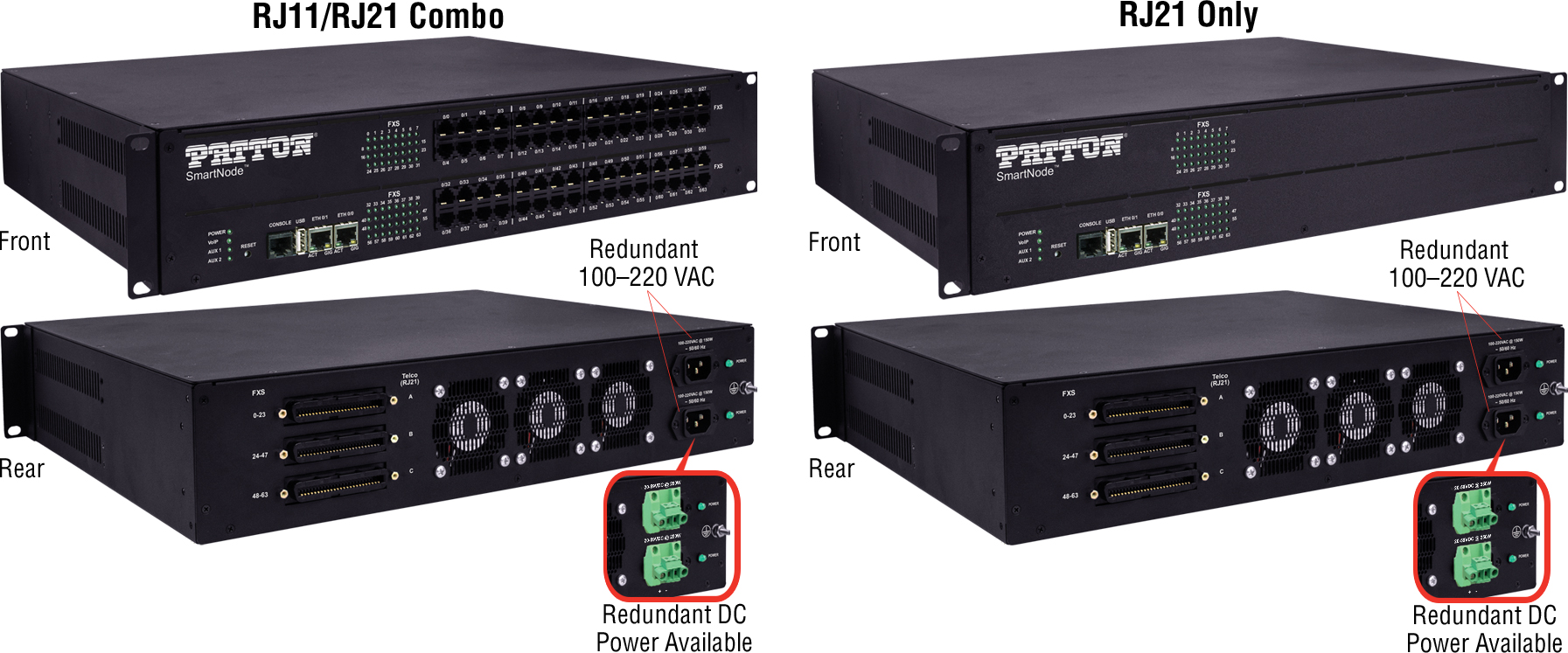

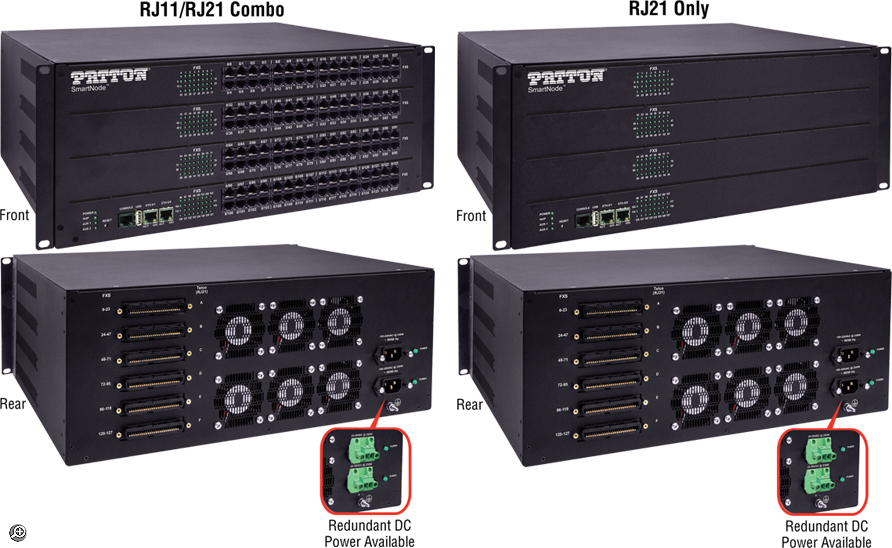

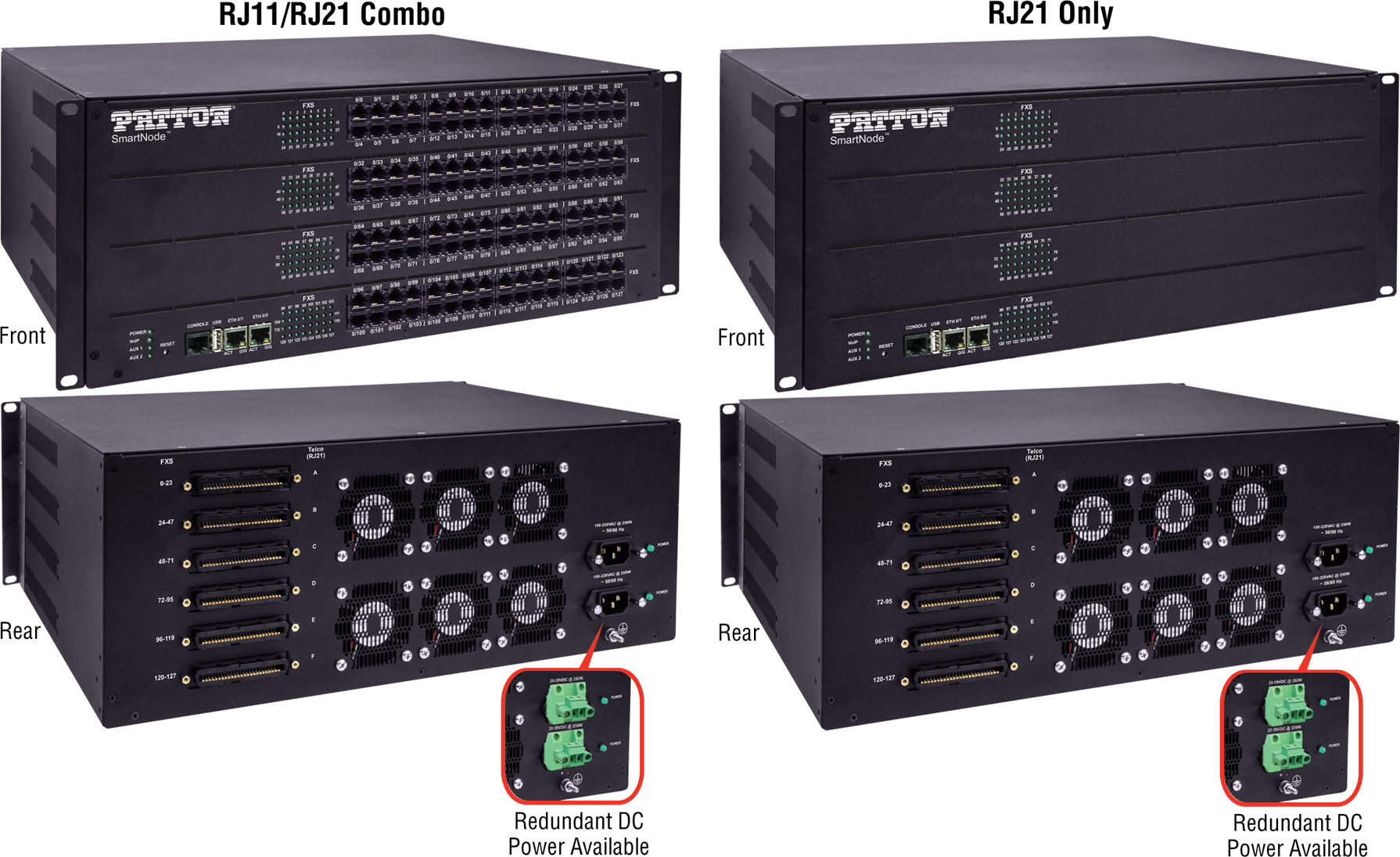

Ordering
  • Rack ears are included in every SN4740

  • RJ21 connectors are all 50-pin

# of RJ21 connectors (50pin only)
16 port
1
24 port
1
32 port
2
48 port
2
64 port
3
72 port
3
96 port
4
128 port
6







Number of Ports Connector Type Surge Protection (K.21) Power Input


# Model # Description Availability
1 SN4741/128JS128VSP/RJ11-21/R48 SmartNode VoIP Gateway, 128 FXS on RJ11&6xRJ21-50pin, K.21 basic surge protection, 128 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

2 SN4741/128JS128VSP/RJ11-21/RUI SmartNode VoIP Gateway, 128 FXS on RJ11&6xRJ21-50pin, K.21 basic surge protection, 128 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

3 SN4741/128JS128VSP/RJ21/R48 SmartNode VoIP Gateway, 128 FXS on 6xRJ21-50pin, K.21 basic surge protection, 128 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

4 SN4741/128JS128VSP/RJ21/RUI SmartNode VoIP Gateway, 128 FXS on 6xRJ21-50pin, K.21 basic surge protection, 128 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

5 SN4741/16JS16V/RJ11/EUI SmartNode VoIP Gateway, 16 FXS on RJ11, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

6 SN4741/16JS16V/RJ11/R48 SmartNode VoIP Gateway, 16 FXS on RJ11, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

7 SN4741/16JS16V/RJ21/EUI SmartNode VoIP Gateway, 16 FXS on RJ21-50pin, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available
8 SN4741/16JS16V/RJ21/R48 SmartNode VoIP Gateway, 16 FXS on RJ21-50pin, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

9 SN4741/16JS16VSP/RJ11/EUI SmartNode VoIP Gateway, 16 FXS on RJ11, K.21 basic surge protection, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

10 SN4741/16JS16VSP/RJ11/R48 SmartNode VoIP Gateway, 16 FXS on RJ11, K.21 basic surge protection, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

11 SN4741/16JS16VSP/RJ21/EUI SmartNode VoIP Gateway, 16 FXS on RJ21-50pin, K.21 basic surge protection, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available

 Accessories

12 SN4741/16JS16VSP/RJ21/R48 SmartNode VoIP Gateway, 16 FXS on RJ21-50pin, K.21 basic surge protection, 16 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 8 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

13 SN4741/24JS24V/RJ11/EUI SmartNode VoIP Gateway, 24 FXS on RJ11, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

14 SN4741/24JS24V/RJ11/R48 SmartNode VoIP Gateway, 24 FXS on RJ11, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

15 SN4741/24JS24V/RJ21/EUI SmartNode VoIP Gateway, 24 FXS on RJ21-50pin, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available

 Accessories

16 SN4741/24JS24V/RJ21/R48 SmartNode VoIP Gateway, 24 FXS on RJ21-50pin, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

17 SN4741/24JS24VSP/RJ11/EUI SmartNode VoIP Gateway, 24 FXS on RJ11, K.21 basic surge protection, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

18 SN4741/24JS24VSP/RJ11/R48 SmartNode VoIP Gateway, 24 FXS on RJ11, K.21 basic surge protection, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

19 SN4741/24JS24VSP/RJ21/EUI SmartNode VoIP Gateway, 24 FXS on RJ21-50pin, K.21 basic surge protection, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available

 Accessories

20 SN4741/24JS24VSP/RJ21/R48 SmartNode VoIP Gateway, 24 FXS on RJ21-50pin, K.21 basic surge protection, 24 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power (Optional) Pre-Order Available

 Accessories

21 SN4741/32JS32V/RJ11/EUI SmartNode VoIP Gateway, 32 FXS on RJ11, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

22 SN4741/32JS32V/RJ11/R48 SmartNode VoIP Gateway, 32 FXS on RJ11, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power Pre-Order Available

 Accessories

23 SN4741/32JS32V/RJ21/EUI SmartNode VoIP Gateway, 32 FXS on 2xRJ21-50pin, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available

 Accessories

24 SN4741/32JS32V/RJ21/R48 SmartNode VoIP Gateway, 32 FXS on 2xRJ21-50pin, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power Pre-Order Available

 Accessories

25 SN4741/32JS32VSP/RJ11/EUI SmartNode VoIP Gateway, 32 FXS on RJ11, K.21 basic surge protection, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) General Availability

 Accessories

26 SN4741/32JS32VSP/RJ11/R48 SmartNode VoIP Gateway, 32 FXS on RJ11, K.21 basic surge protection, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power Pre-Order Available

 Accessories

27 SN4741/32JS32VSP/RJ21/EUI SmartNode VoIP Gateway, 32 FXS on 2xRJ21-50pin, K.21 basic surge protection, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Single External UI power (100–240 VAC), Redundant Power Supply (Optional) Pre-Order Available

 Accessories

28 SN4741/32JS32VSP/RJ21/R48 SmartNode VoIP Gateway, 32 FXS on 2xRJ21-50pin, K.21 basic surge protection, 32 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, Optional Transcoding (max. 16 calls), 2x Gig Ethernet, 1x USB, 1x Console, Redundant 48V DC Power Pre-Order Available

 Accessories

29 SN4741/48JS48VSP/RJ11-21/R48 SmartNode VoIP Gateway, 48 FXS on RJ11&2xRJ21-50pin, K.21 basic surge protection, 48 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

30 SN4741/48JS48VSP/RJ11-21/RUI SmartNode VoIP Gateway, 48 FXS on RJ11&2xRJ21-50pin, K.21 basic surge protection, 48 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

31 SN4741/48JS48VSP/RJ21/R48 SmartNode VoIP Gateway, 48 FXS on 2xRJ21-50pin, K.21 basic surge protection, 48 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

32 SN4741/48JS48VSP/RJ21/RUI SmartNode VoIP Gateway, 48 FXS on 2xRJ21-50pin, K.21 basic surge protection, 48 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

33 SN4741/64JS64VSP/RJ11-21/R48 SmartNode VoIP Gateway,64 FXS on RJ11&3xRJ21-50pin, K.21 basic surge protection, 64 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

34 SN4741/64JS64VSP/RJ11-21/RUI SmartNode VoIP Gateway,64 FXS on RJ11&3xRJ21-50pin, K.21 basic surge protection, 64 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

35 SN4741/64JS64VSP/RJ21/R48 SmartNode VoIP Gateway,64 FXS on 3xRJ21-50pin, K.21 basic surge protection, 64 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

36 SN4741/64JS64VSP/RJ21/RUI SmartNode VoIP Gateway,64 FXS on 3xRJ21-50pin, K.21 basic surge protection, 64 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

37 SN4741/72JS72VSP/RJ11-21/R48 SmartNode VoIP Gateway, 72 FXS on RJ11&3xRJ21-50pin, K.21 basic surge protection, 72 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

38 SN4741/72JS72VSP/RJ11-21/RUI SmartNode VoIP Gateway, 72 FXS on RJ11&3xRJ21-50pin, K.21 basic surge protection, 72 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

39 SN4741/72JS72VSP/RJ21/R48 SmartNode VoIP Gateway, 72 FXS on 3xRJ21-50pin, K.21 basic surge protection, 72 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

40 SN4741/72JS72VSP/RJ21/RUI SmartNode VoIP Gateway, 72 FXS on 3xRJ21-50pin, K.21 basic surge protection, 72 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

41 SN4741/96JS96VSP/RJ11-21/R48 SmartNode VoIP Gateway, 96 FXS on RJ11&4xRJ21-50pin, K.21 basic surge protection, 96 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

42 SN4741/96JS96VSP/RJ11-21/RUI SmartNode VoIP Gateway, 96 FXS on RJ11&4xRJ21-50pin, K.21 basic surge protection, 96 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

43 SN4741/96JS96VSP/RJ21/R48 SmartNode VoIP Gateway, 96 FXS on 4xRJ21-50pin, K.21 basic surge protection, 96 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant 20-59V DC power Pre-Order Available

 Accessories

44 SN4741/96JS96VSP/RJ21/RUI SmartNode VoIP Gateway, 96 FXS on 4xRJ21-50pin, K.21 basic surge protection, 96 VoIP Calls, upgradeable to eSBC (max. 200 SIP calls), Optional SIP-TLS/SRTP, 2x Gig Ethernet, 1x USB, 1x Console, Redundant Internal UI power (100–240 VAC) Pre-Order Available

 Accessories

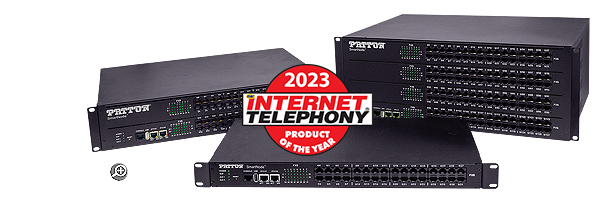

SmartNode™ Awards
