Products  >  Unified Communications  >  Analog (FXS/FXO) Enterprise VoIP CPE  >  Analog VoIP Gateways  >  SmartNode SN4140 View Printable

Analog VoIP Gateways

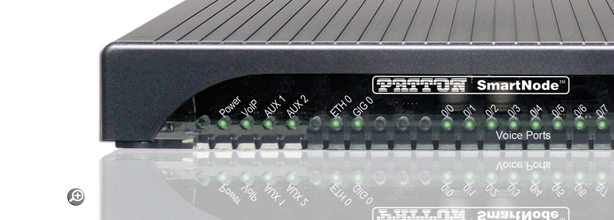

SmartNode SN4140 Analog VoIP Gateway | 2, 4 or 8 analog ports for up to 8 phone or fax calls



VoIP Gateway: The SmartNode 4140 Series of VoIP Analog Gateway products support up to eight telephone connections integrating legacy equipment into a UCC environment. High-quality voice and reliable fax over any IP network. All-IP does not end when analog terminals have to be integrated. Security and quality guaranteed.
Overview
Cloud Enabled The SmartNode 4140 Series of VoIP Media Gateways support up to eight phone or fax calls. The SN4140 is the perfect choice for All-IP applications where either old, non-replaceable telephones have to be integrated into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure.

Patton’s SmartNode 4140 Series delivers the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks.

Industrial version available SN4141E


Applications
In All-IP networks as well as during the migration to the next generation communication network, legacy telephone equipment will remain for quite some years. The SmartNode 4140 Series will be responsible integrating this equipment at a very low cost for the enterprise. With its modem and fax signal to VoIP conversion capabilities it also helps to solve problems integrating PoS, metering systems, elevator phones, etc., into an All-IP environment.

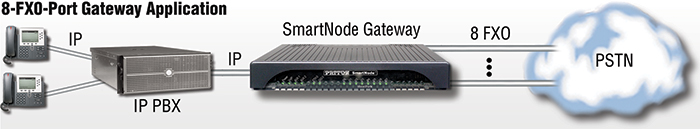

SmartNode 4141 VoIP gateway. VoIP analog gateway application drawing
SmartNode 4141 8-FXO-port Gateway Application


Features
  • Up to 8 Analog interfaces (FXS/FXO)—2, 4 or 8 Analog ports. Either FXS or FXO or a combo configuration. Up to 8 G.722/G.711 or T.38 calls simultaneously.
  • Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming.
    Local call switching, soft fallback to alternative routes.
    Simultaneously connects to multiple SIP services/IP PBXs.
  • Network Monitoring—Embedded Patton Cloud network monitoring 24x7.**
  • Management & Provisioning—Web Wizard for ease of use, SNMPv3, TR-069, command line interface, secure zero-touch provisioning, separate config. domain, secure provisioning of configuration and software.
  • Proprietary OS—Utilizes proprietary Trinity™ software for enhanced security.
  • Full VoIP protocol support—SIPv2, SIPv2 over TLS**, T.38, G.722 HD voice, RTP security with SRTP**, fax and modem bypass, DTMF relay.
  • Survivability & Local Breakout—Resiliency or local breakout for the enterprise thanks to onboard FXO ports.

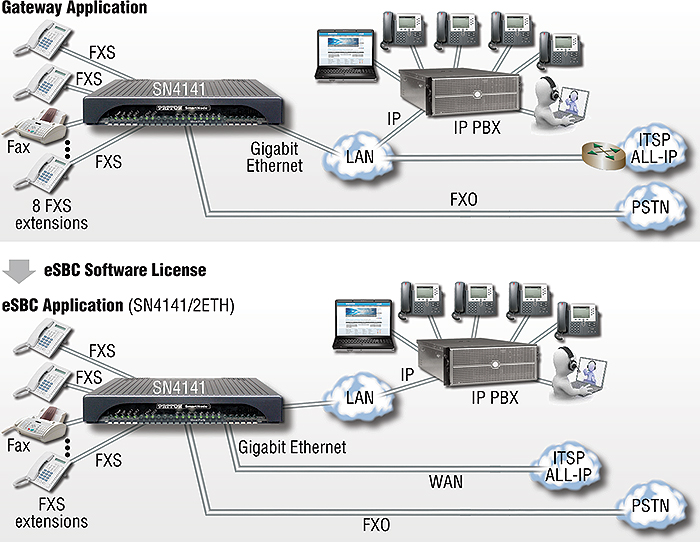

  • Optional eSBC upgrade for FXS VoIP Gateways with 2 Ethernet Ports—Models containing ”SN4141/2ETH” can be converted into high performance enterprise session border controllers (eSBC) simply by purchasing a software license. This capability prepares your voice network for next-generation SIP services and security.
    For details about the upgraded SN4141 eSBC’s capabilities, refer to the model SN5541 eSBC specifications.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivalled Customer Support
    • FREE Support and Upgrades

Ordering
# Model # Description Availability
1 SN4141/2ETH2JO2V/EUI SmartNode VoIP Gateway, 2 FXO, 2 VoIP calls or 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

2 SN4141/2ETH2JS2JO4V/EUI SmartNode VoIP Gateway, 2 FXS, 2 FXO, 4 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

3 SN4141/2ETH2JS2V/EUI SmartNode VoIP Gateway, 2FXS, 2 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

4 SN4141/2ETH4JO4V/EUI SmartNode VoIP Gateway, 4FXO, 4 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

5 SN4141/2ETH4JS4JO8V/EUI SmartNode VoIP Gateway, 4 FXS, 4 FXO, 8 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

6 SN4141/2ETH4JS4V/EUI SmartNode VoIP Gateway, 4FXS, 4 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

7 SN4141/2ETH8JO8V/EUI SmartNode VoIP Gateway, 8FXO, 8 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

8 SN4141/2ETH8JS8V/EUI SmartNode VoIP Gateway, 8FXS, 8 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 2x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

9 SN4141/2JO2V/EUI SmartNode VoIP Gateway, 2 FXO, 2 VoIP calls or 2 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

10 SN4141/2JS2JO4V/EUI SmartNode VoIP Gateway, 2 FXS, 2 FXO, 4 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

11 SN4141/2JS2V/EUI SmartNode VoIP Gateway, 2FXS, 2 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

12 SN4141/4JO4V/EUI SmartNode VoIP Gateway, 4 FXO, 4 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

13 SN4141/4JS4JO8V/EUI SmartNode VoIP Gateway, 4 FXS, 4 FXO, 8 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; 4 Transcoding calls (max. 4), 1x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

14 SN4141/4JS4V/EUI SmartNode VoIP Gateway, 4FXS, 4 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

15 SN4141/8JO8V/EUI SmartNode VoIP Gateway, 8 FXO, 8 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; 4 Transcoding calls (max. 4), 1x Gig Ethernet, external UI power (100–240 VAC) General Availability

 Accessories

16 SN4141/8JS8V/EUI SmartNode VoIP Gateway, 8FXS, 8 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories
