Products  >  Unified Communications  >  Analog (FXS/FXO) Enterprise VoIP CPE  >  Analog VoIP Gateways  >  SmartNode SN4150 View Printable

Analog VoIP Gateways
SmartNode SN4150 Analog & BRI VoIP Gateway | 2 BRI/2 FXS-FXO or 4 BRI/4 FXS-FXO ports for up to 8 phone or fax calls



2 BRI/2 FXS-FXO or 4 BRI/4 FXS-FXO and 4–16 simultaneous G.722/G.711 or T.38 calls. The SN4150 is the best way to connect ISDN networks or ISDN terminal equipment, and legacy analog equipment into a UCC environment. With built-in security features such as HTTPS provisioning, Stateful firewall and optional SIP-TLS / SRTP** it provides business-class VoIP for demanding ISDN users.
Overview
Cloud Enabled The SN4150 series is the perfect choice for All-IP applications where legacy, non-replaceable telephones have to be integrated into a UCC environment (or for good old fax devices to be migrated to the next-generation network infrastructure).

The combo configuration of 2 BRI and 2 FXS-FXO or 4 BRI and 4 FXS-FXO fits the requirements of small and medium-sized enterprises requiring a solution to enable legacy equipment for VoIP networks.

Patton’s SmartNode 4150 series deliver the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks..



Applications

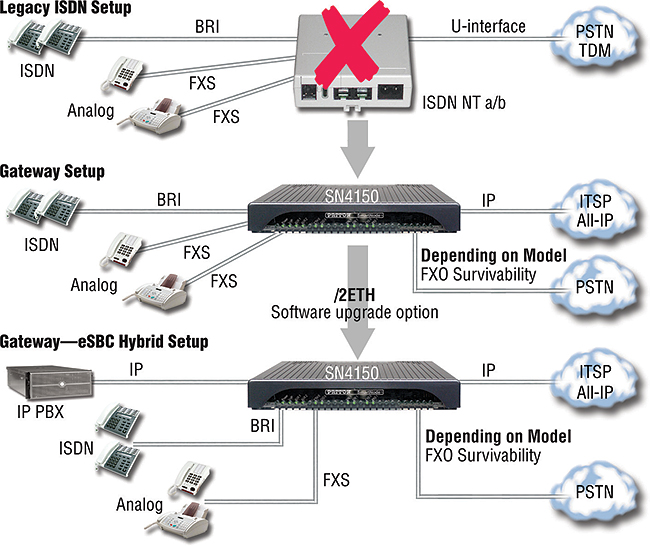

In All-IP networks as well as during the migration to the next generation commu- nication network, legacy telephone equipment will remain for quite some years. The SmartNode SN4150 series will be responsible for maintaining the ISDN and analog interfaces when the telephony service is switching to an All-IP (VoIP) service. With its ability to convert modem and fax signals to VoIP, it solves problems integrating PoS, metering systems, elevator phones, etc. to an All-IP environment.



SmartNode 4151


Features
  • BRI, FXS & FXO interfaces —2 or 4 ISDN BRI S0/T0 and 2 or 4 FXS-FXO ports. 4–8 G.722/G.711 or 4–8 T.38 calls simultaneously. Optional SIP TLS/SRTP.
  • Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fall-back to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
  • Network Monitoring —Embedded Patton Cloud network monitoring 24x7.***
  • Auto-Provisioning—Secure zero-touch provisioning (HTTPS) for ease of use.
  • Proprietary OS—Utilizes proprietary Trinity software for enhanced security.
  • Full VoIP protocol support—SIPv2, SIPv2 over TLS**, ISDN, QSIG**, T.38, DSS1, G.722 HD voice, RTP security with SRTP, fax and modem bypass, DTMF relay.
  • Ease of Use—Patton's Web Wizard is a time saving tool for a fast and reliable installation.
  • Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
  • Optional eSBC upgrade for BRI/FXS/FXO Gateways with 2 Ethernet Ports—Models containing ”/2ETH” can be convert- ed into high performance enterprise session border controllers (eSBC) simply by purchas- ing a software license. This capability pre- pares your voice network for next-generation SIP services and security.

    For details about the upgraded eSBC’s capabilities, refer to the model SN5550 eSBC specifications.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivalled Customer Support
    • FREE Support and Upgrades

Ordering
FXO Port combinations are coming soon. Please contact us for more information
# Model # Description Availability
1 SN4151/2BIS2JS4VHP/EUI SmartNode VoIP Gateway, 2 BRI, 2FXS, 4 VoIP Calls upgradeable (max. 6), or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS, SRTP, High Precision 5ppm Clock, 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

2 SN4151/2ETH2BIS2JS4VHP/EUI SmartNode VoIP Gateway, 2 BRI, 2FXS, 4 VoIP Calls upgradeable (max. 8), or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS, SRTP, High Precision 5ppm Clock, 2x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

3 SN4151/2ETH4BIS4JS8VHP/EUI SmartNode VoIP Gateway, 4 BRI, 4 FXS, 8 VoIP Calls not upgradeable, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS, SRTP, High Precision 5ppm Clock, 2x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories

4 SN4151/4BIS4JS8VHP/EUI SmartNode VoIP Gateway, 4 BRI, 4 FXS, 8 VoIP Calls not upgradeable, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS, SRTP, High Precision 5ppm Clock, 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU General Availability

 Accessories



SmartNode™ Awards
