T1/E1/PRI VoIP Gateways

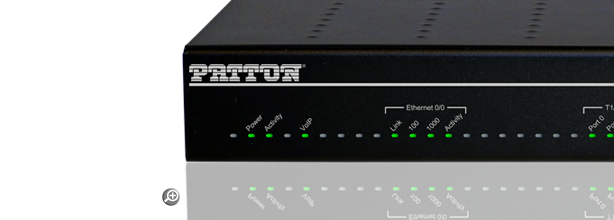

SmartNode SN4970A PRI VoIP Gateway | 1 or 4 T1/E1/PRI interface for up to 120 simultaneous phone or fax calls



IP-enable legacy PBX systems with the enterprise-class SmartNode 4970A VoIP Gateway. Supporting 15 to 120 concurrent VoIP calls, the cost-effective SN4970A media gateway enables enterprises to connect existing PBX systems with advanced IP telephony services and the PSTN.
Overview
Cloud Enabled The SmartNode™ 4970A VoIP Gateway offers Enterprises a cost-effective solution to IP-enable legacy PBX systems. Evolving from Patton’s award winning SmartNode 4970 Series, the next generation SmartNode 4970A Series comes now with Trinity software containing a wide set of features.

Like every SmartNode™, the SN4970A supports every industry-standard CODEC to deliver toll-quality voice on every call. The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE). In addition, advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support.

The SmartNode survivability suite offers PSTN fallback to ensure business continuity in case the IP network fails. Furthermore, SmartNode’s unique high-precision clock delivers first-line IP telephony service in demanding ISDN and DECT environments with reliable FAX and modem performance. In addition, SmartNode delivers a smooth transition to VoIP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider's number porting process.

Preserve investments in legacy phone equipment while taking the next steps toward unified communications with the SN4970A VoIP Gateway. Providing 1 to 4 T1/E1/PRI and a 10/100/1000 Ethernet for up to 120 VoIP calls, the SN4970A delivers a reliable, cost-effective solution for the Enterprise.



Applications
Convert Legacy PBX to VoIP
SmartNode 4970


Features
  • Trinity OS - Advanced feature set supporting IPv6 and Patton Cloud capable Software Comparison
  • 15 to 120 VoIP calls—with up to four T1/E1/PRI ports and a single Gigabit Ethernet port.
  • Proven Interoperability—SIP interop with major IP PBX, Softswitch and VoIP Service Providers. Over 100,000 SmartNode deployments worldwide. ISDN/PSTN compliance in nearly every country.
  • Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
  • High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
  • Flexible Mounting Options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19)
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).


Ordering

Product Change Notice:
Due to the fast evolvement of VoIP, routing, and SBC functionalities being developed by Patton for the SmartNode product line, more and more system memory is being required. To cope with the increased memory needs, accommodating features being made available in the future, the hardware of SmartNode products need to go along, requiring being upgraded as well. All new hardware (SN4970A) support Trinity Software only.
See the Product Change Notice for more details.
Current SKU Replacement SKU(s)

or Enter Manually



# Model # Description Availability
1 SN4970A/4E120VRHP/EUI SmartNode VoIP GW, 4 E1/T1 PRI, 120 VoIP Calls not upgradable, or 15 SIP-SIP Calls (SIP b2b UA) upgradable (max. 80), failover relay, High Precision 5ppm Clock, optional SIP-TLS, SRTP, 1x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

2 SN4970A/4E30V120RHP/EUI SmartNode VoIP GW, 4 E1/T1 PRI, 30 VoIP Calls upgradable to 120, or 15 SIP-SIP Calls (SIP b2b UA) upgradable (max. 80), Failover relay, High Precision 5ppm Clock, optional SIP-TLS, SRTP, 1x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

3 SN4970A/4E30V60RHP/EUI SmartNode VoIP GW, 4 E1/T1 PRI, 30 VoIP Calls upgradable to 60, or 15 SIP-SIP Calls (SIP b2b UA) upgradable (max. 80), Failover relay, High Precision 5ppm Clock, optional SIP-TLS, SRTP, 1x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories

4 SN4970A/4E60VRHP/EUI SmartNode VoIP GW, 4 E1/T1 PRI, 60 VoIP Calls not upgradable, or 15 SIP-SIP Calls (SIP b2b UA) upgradable (max. 80), Failover relay, High Precision 5ppm Clock, optional SIP-TLS, SRTP, 1x Gig Ethernet, external UI power (100�240 VAC) NA/EU General Availability

 Accessories
