Overview
The SmartNode™ 4830 Serial Series Analog VoIP IADs let you add packet voice while providing access routing with native V.35/X.21 synchronous serial connection. Add up to 8 phone lines and combine Internet and VPN access on a single PPP or Frame-Relay based access line for the new standard in toll-bypass, remote/branch office connectivity, and enhanced carrier services.

The SN4830 Serial Series offers models with combinations of 2 to 8 analog FXS phone ports and 2 or 4 FXO ports. The Dual 10/100baseT LAN ports can be used for LAN, IPSec VPN and DMZ connections. The integrated X.21/V.35 WAN port provides direct access to IP over PPP and Frame-Relay. Like every SmartNode the 4830 series supports the industry standard VoIP signaling protocols including SIP, H.323, T.38 Fax-Relay, plus Fax and Modem-Bypass and is interoperable with leading Softswitches and VoIP services.

Quality of Service (QoS) features include advanced voice prioritization and traffic management. DownStreamQoS™ ensures voice without interruptions even over best-effort internet connections. Packet labeling according to 802.1p, TOS and DiffServ enable integration into managed QoS networks.

The SN4830 is the solution for service providers and network integrators looking for the seamless integration of analog phones and PBXs into converged VoIP-Data networks. It ensures easy setup and continuous trouble-free operation and cost effective deployment. The support of the leading VoIP signaling protocols ensures interoperability with third-party equipment and protects your investments for the future.

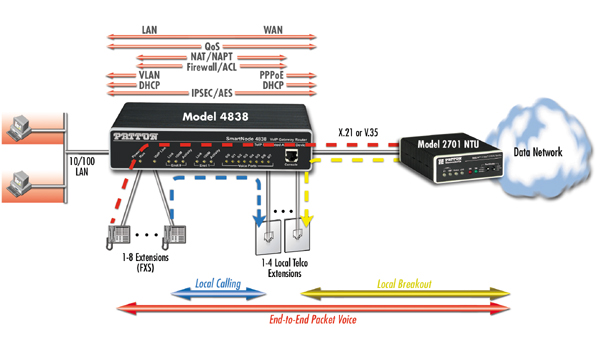

Application - Remote Office/Branch Office Voice Extension and Access

Supporting voice from any local or remote connections with Quality of Service brings true access to all users. Now integrating into local DSL, Cable, or IP access services is clean and complete

SmartNode

Features

Integrated Sync Serial Uplink—Built-in X.21, V.35 router with PPP, Frame Relay RFC-1490, 8 PVCs and FRF.12 fragmentation
Complete VoIP Gateway—SIPv3, H.323v4, T.38 & Fax bypass, G.723, G.729, G.726, G.711, echo cancellation, silence compression, comfort noise.
FXS, FXO, or Combinations—Up to 8 FXS ports connect to your standard telephone or PBX. 2 or 4 FXO ports allow local PSTN connections. Programmable call routing and switching.
Access & Network Routing—Connected to any broadband or access provider. IPv4, RIPv2, ICMP, NAT/PAT, Firewall, DHCP, DynDNS, IPSec VPN.
QoS Guaranteed Voice & Data—Quality of Service ensures voice traffic gets priority without shutting down your Ethernet LAN.
Management & Provisioning—Web based management, SNMP, Command Line Interface. Auto-Provisioning for automated configuration distribution and SW upgrades caller/called ID, and time of day.

Ordering

Product Change Notice:
Due to the fast evolvement of VoIP & All-IP technology happening in the market, high performance HW but also Software is required on Customer Premise Equipment. Since the SmartNodes series SN4830 were in the market for many years, its HW capabilities are reaching it`s limits. In parallel, Patton developed new, more state of the art Hardware that is running the latest operation system with the latest features, which is now replacing the SmartNodes series SN4830.
See the Product Change Notice for more details.

Model #

Description

Availability

SN4832/JOC/EUI

SmartNode 2 FXO VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4832/JOD/EUI

SmartNode 2 FXO VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Special Order

Accessories

SN4832/JSC/EUI

SmartNode 2 FXS VoIP IAD, Integrated V.35 WAN, SIP and H.323, External UI Power.

Accessories

SN4832/JSD/EUI

SmartNode 2 FXS VoIP IAD, Integrated X.21 WAN, SIP and H.323, External UI Power.

Accessories

SN4832/LL/EUI

SmartNode Dual Channel, 2-Wire Leased Line over IP Repeater, Encryption, EUI Power

Accessories

SN4832/LLA/EUI

SmartNode Dual Channel, 2-Wire Leased Line over IP Repeater, ADSL2+ Annex A interface, Encryption, EUI Power

Accessories

Power Plugs & Cords
0805AUS	Australia/New Zealand Power Cord (C)
0805EUR	European Power Cord (IEC320 A)
0805IN	India/South Africa Power Cord (G)
0805SW	Switzerland Power Cord (L)
0805UK	UK Power Cord (IEC320 D)
0805US	US Power Cord (IEC320 K)
Additional Charge:
Rack
INS-KIT-RACKEARS-11/19	Rack mount ears for SN4970/71/70A, SN4980/81/80A, SN4991/90A, SN5400/80/81/90/91, SN4940/50/60, SN4660/70, SN463X, SN465X. Fits a 11.5 inch case into a 19 inch rack space.
Software License
SNSW-H323	License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up
SNSW-QSIG1	License Key for QSIG on the SmartNode BRI devices
SNSW-REG	License Key for SIP Registrar on SmartNodes (Trinity & Smartware)
SNSW-UCA1	SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only
SNSW-VPN1	License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X)

SN4834/2JS2JOC/EUI

SmartNode 2 FXS & 2 FXO VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4834/2JS2JOD/EUI

SmartNode 2 FXS & 2 FXO VoIP IAD, Integrated X.21 WAN, H.323. and SIP, External UI Power.

Accessories

SN4834/JOC/EUI

SmartNode 4 FXO VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4834/JOD/EUI

SmartNode 4 FXO VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Special Order

Accessories

SN4834/JSC/EUI

SmartNode 4 FXS VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4834/JSD/EUI

SmartNode 4 FXS VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Accessories

SN4834/LLA/EUI

SmartNode 4 Channel, 2-Wire Leased Line over IP Repeater, ADSL2+ Annex A interface, Encryption, EUI Power

Accessories

Power Plugs & Cords
0805AUS	Australia/New Zealand Power Cord (C)
0805EUR	European Power Cord (IEC320 A)
0805IN	India/South Africa Power Cord (G)
0805SW	Switzerland Power Cord (L)
0805UK	UK Power Cord (IEC320 D)
0805US	US Power Cord (IEC320 K)
Additional Charge:
Rack
INS-KIT-RACKEARS-11/19	Rack mount ears for SN4970/71/70A, SN4980/81/80A, SN4991/90A, SN5400/80/81/90/91, SN4940/50/60, SN4660/70, SN463X, SN465X. Fits a 11.5 inch case into a 19 inch rack space.
Software License
SNSW-H323	License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up
SNSW-QSIG1	License Key for QSIG on the SmartNode BRI devices
SNSW-REG	License Key for SIP Registrar on SmartNodes (Trinity & Smartware)
SNSW-UCA1	SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only
SNSW-VPN1	License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X)

SN4836/4JS2JOC/EUI

SmartNode 4 FXS & 2 FXO VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4836/4JS2JOD/EUI

SmartNode 4 FXS & 2 FXO VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Special Order

Accessories

SN4836/JSC/EUI

SmartNode 6 FXS VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Special Order

Accessories

SN4836/JSD/EUI

SmartNode 6 FXS VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Special Order

Accessories

SN4838/4JS4JOC/EUI

SmartNode 4 FXS & 4 FXO VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4838/4JS4JOD/EUI

SmartNode 4 FXS & 4 FXO VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Accessories

SN4838/4JS4JODSP/EUI

SmartNode 4 FXS & 4 FXO VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power, Surge Protection.

Accessories

SN4838/JSC/EUI

SmartNode 8 FXS VoIP IAD, Integrated V.35 WAN, H.323 and SIP, External UI Power.

Accessories

SN4838/JSD/EUI

SmartNode 8 FXS VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power.

Accessories

SN4838/JSDSP/EUI

SmartNode 8 FXS VoIP IAD, Integrated X.21 WAN, H.323 and SIP, External UI Power, Surge Protection.

Accessories
