Analog VoIP Routers
SmartNode SN4400 IpChannelBank Analog VoIP Router | 12 to 32 FXS or FXO ports

Overview
The SmartNode™; 4400 VoIP Gateway-Router provides 12 to 32 analog FXS or FXO interfaces to connect phones, fax or PSTN trunk lines to your IP-based communications (IP PBX, UC systems and SIP Trunks).

Like every SmartNode™, the SN4400 supports every industry-standard CODEC to deliver toll-quality voice on every call. The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, H.323, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX). VoIP-over-VPN with voice encryption provides secure voice and data via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE). In addition, advanced call-router functionality includes least-cost call routing with flexible dialed-number plan support.

The SmartNode survivability suite combines PSTN fallback, SIP Registrar and IP-link redundancy to ensure business continuity in case the IP network fails. Patton’s DownStreamQoS™ delivers the advantage of clear, uninterrupted voice-and-data communication. In addition, SmartNode delivers a smooth transition to VoIP with strong number portability support accepting incoming calls from the PSTN throughout the VoIP service provider's number porting process.

Preserve investments in legacy phone equipment while taking the next steps toward unified communications with the SN4400 VoIP Gateway-Router. Providing 12 to 32 FXS or FXO interfaces and two 10/100/1000 Ethernet, the SN4400 with built-in IP Router delivers secure, prioritized unified communications.

Need a carrier upgrade? The SmartNode 4900 adds a redundant power supply, WAN interfaces, cooling fans and 0–50° C operating temperature.

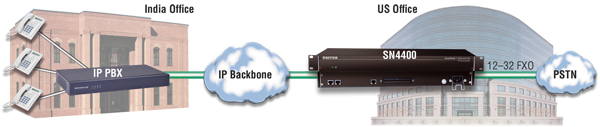

Applications

Features

• 12, 16, 24 or 32 FXS—Simultaneous voice or fax calls on all ports. Advanced local call switching.
• Full SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.
• Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
• Complete Access Routing—Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPsec*
• Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors and Asterisk™ IP-PBX

Ordering

# Model # Description Availability 1 SN4412/JO/UI SmartNode IpChannelBank 12 FXO VoIP GW-Router, 2x10/100bTX, UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 2 SN4416/JO/UI SmartNode IpChannelBank 16 FXO VoIP GW-Router, 2x10/100bTX, UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 3 SN4424/JO/UI SmartNode IpChannelBank 24 FXO VoIP GW-Router, 2x10/100bTX, UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 4 SN4432/JO/UI SmartNode IpChannelBank 32 FXO VoIP GW-Router, 2x10/100bTX, UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 1) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 1) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 1) Switzerland Power Cord (L) 0805UK   (Qty: 1) UK Power Cord (IEC320 D) 0805US   (Qty: 1) US Power Cord (IEC320 K) Additional Charge: Cable 10-493264-10   (Qty: 1) 10 FT Cable (64 PIN TELCO-to-32 unterminated) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X)
