SmartNode SN4900 Analog VoIP Gateway | 12 -32 FXS ports for up to 32 phone or fax calls

Overview

Note: The FXS version of this legacy product has reached End-of-Life status, and is not recommended for new installations. The FXO version is still available in the Ordering section below. If you require FXS capability, the next-generation alternative would be Patton's SmartNode Model SN4741.

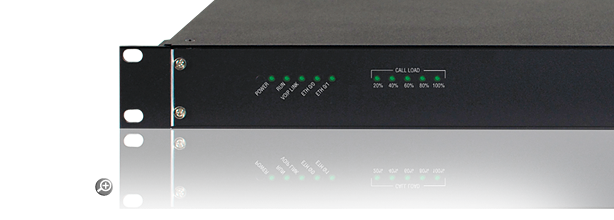

The SmartNode 4900 Series IpChannel Bank is the perfect business solution for applications requiring 12 to 32 concurrent analog voice/fax calls. The IpChannel Bank transforms any PBX system, analog call-center application, or ISP MDU service into a state-of-the-art packet-voice system without requiring costly equipment replacement or upgrades.

There are several models in the SN4900 Series - ranging from 12 to 32 FXS or FXO ports (look for the "JO" letters in the model code for FXO ports, and the "JS" letters for FXS ports). Also available are different WAN interface options: V.35, X.21, T1, E1, ADSL, G.SHDSL.

The SN4900 Series supports key industry-standard VoIP signaling protocols such as SIP, H.323, and T.38 Fax Relay--plus fax-bypass and modem-bypass. This ensures interoperability with the leading soft switches and VoIP services.

Built-in Quality of Service (QoS) features include voice prioritization and traffic management via configurable service-policy profiles. Patton’s advanced DownStreamQoS ensures clear, uninterrupted voice--even over best-effort networks such as the Internet. Packet classification using 802.1p, TOS, and DiffServ makes integration with existing managed QoS networks easy.

Create custom security profiles for a comprehensive security environment. IPSec in the SN4900 Series delivers data integrity, authentication, anti-replay and data confidentiality. Firewall capabilities include Access Control Lists (ACLs), IP-address and port filtering, protection against Denial of Service (DoS) attacks, and use of second Ethernet port as DMZ.

Offering easy setup, reliable operation, and third-party interoperability on a proven platform, the SN4900 Series IpChannel Bank sits at the core of cost-effective business solutions. The investment protection you need for the future is here today.

Applications

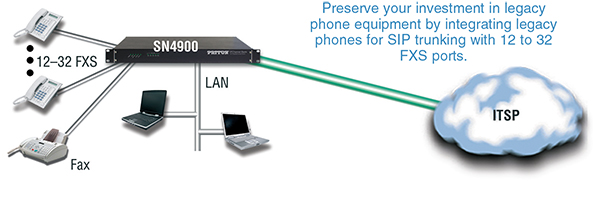

Protect your investment—integrate analog equipment

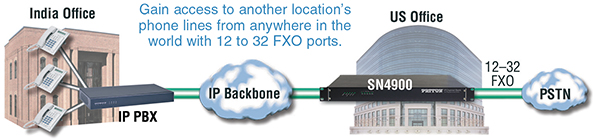

Legacy is not bad! While VoIP offers distinct advantages in almost every aspect of communications, in many cases it is appropriate to integrate legacy equipment into a VoIP system rather than replacing it. The SN4900 Series is the enabler that protects your investment in analog equipment. It enables enterprises to extend multiple analog lines from a PBX to a remote location wich existing cabling or phones, taking advantage of a single IP link to transport up to 32 voice calls. The remote location can be a building around the block as well as a partner in another continent.





For call centers, the SN4900 is the ideal, reliable solution to integrate legacy work desks and cabling into next-generation, VoIP based call center software.

Features

• 12, 16, 24 or 32 FXS or FXO ports—Simultaneous voice or fax calls on all ports. Advanced local call switching.
• Full SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.
• Secure Toll-Quality VoIP—DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
• Complete Access Routing—Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec*
• Optional Integrated WAN uplink—Choose from V.35, X.21, T1/E1, ADSL or G.SHDSL data interfaces in addition to the two Ethernet ports.
• Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors and Asterisk™ IP-PBX

Ordering

# Model # Description Availability 1 SN4912/JO/R48 SmartNode IpChannelBank 12 FXO VoIP GW-Router, 2x10/100bTX, Redundant 48V DC Power Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 2 SN4912/JO/RUI SmartNode IpChannelBank 12 FXO VoIP GW-Router, 2x10/100bTX, Redundant UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 3 SN4916/JO/R48 SmartNode IpChannelBank 16 FXO VoIP GW-Router, 2x10/100bTX, Redundant 48VDC Power Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 4 SN4916/JO/RUI SmartNode IpChannelBank 16 FXO VoIP GW-Router, 2x10/100bTX, redundant UI power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/16RJ11-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-16 RJ11) 10-3096TM50/16RJ45-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO-to-16 RJ45) 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 5 SN4924/JO/R48 SmartNode IpChannelBank 24 FXO VoIP GW-Router, 2x10/100bTX, Redundant 48V DC Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 6 SN4924/JO/RUI SmartNode IpChannelBank 24 FXO VoIP GW-Router, 2x10/100bTX, H.323 and SIP, Redundant UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-3096TM50/50-12   (Qty: 1) 12 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50/50-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO to RJ21-50 PIN TELCO) 10-3096TM50-12   (Qty: 1) Cable, RJ21-50-pin Male, Telco-to-25 unterminated TP, 12FT 10-3096TM50-20   (Qty: 1) 20 FT Cable (RJ21-50-pin TELCO-to-25 unterminated) 10-50TELCO/24RJ11-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ11) 10-50TELCO/24RJ45-6   (Qty: 1) 6 FT Cable (RJ21-50 PIN TELCO-to-24 RJ45) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 7 SN4932/JO/R48 SmartNode IpChannelBank 32 FXO VoIP GW-Router, 2x10/100bTX, Redundant 48V DC Power Special Order    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-493264-10   (Qty: 1) 10 FT Cable (64 PIN TELCO-to-32 unterminated) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X) 8 SN4932/JO/RUI SmartNode IpChannelBank 32 FXO VoIP GW-Router, 2x10/100bTX, Redundant UI Power General Availability    Accessories Power Plugs & Cords 0805AUS   (Qty: 2) Australia/New Zealand Power Cord (C) 0805EUR   (Qty: 2) European Power Cord (IEC320 A) 0805IN   (Qty: 1) India/South Africa Power Cord (G) 0805SW   (Qty: 2) Switzerland Power Cord (L) 0805UK   (Qty: 2) UK Power Cord (IEC320 D) 0805US   (Qty: 2) US Power Cord (IEC320 K) Additional Charge: Cable 10-493264-10   (Qty: 1) 10 FT Cable (64 PIN TELCO-to-32 unterminated) Software License SNSW-H323 License Key for H323 functionality in SmartWare - Starting R5.T, R5.1 and up SNSW-QSIG1 License Key for QSIG on the SmartNode BRI devices SNSW-REG License Key for SIP Registrar on SmartNodes (Trinity & Smartware) SNSW-UCA1 SmartWare UCA bundle with SIP Registrar, IPSEC VPN, and Dial Backup licenses; For Smartware BRI SmartNodes only SNSW-VPN1 License Key for IPSec VPN on the SmartNode 4000 and 5200 series DES/3DES/AES (Not apply to SN41XX, SDTA, SN-DTA and SN455X)
