End of Life Notice (PDF). This legacy product is not recommended for new installations. For next-generation alternatives, please refer to the 2300 table in the EOL notice.

The SmartNode 2300 Modular VoIP phone gateway is a single flexible VoIP router platform for integrated network-data and Voice-over-IP applications. Ideal for the branch office or the small-to-medium enterprise, the SmartNode 2300 VoIP phone gateway router is performance-tuned for packetized voice-and-data convergence. Equipped with dual Ethernet ports, a serial V.35/X.21 port, and three voice interface slots, the SmartNode 2300 scales up to 60 simultaneous calls in a 1U chassis.

The SmartNode 2300 VoIP gateway router connects your LAN to the WAN using PPP or Frame Relay (RFC-1490) eliminating the need for and cost of an extra router. With dual Ethernet ports and built-in QoS, NAT, DHCP, PPPoE, and ACL/Firewall, the SmartNode 2300 provides complete LAN network access control.

With Patton's Telephony-over-IP (ToIP) programmable circuit-switching the SmartNode 2300 links any standard BRI, T1/E1 PRI, or FXS connection to the IP network. Supporting multiple codecs and T.38/Modem bypass, the SmartNode seamlessly integrates voice, data, and fax over IP.

The SmartNode delivers IP-network access with the clarity of toll-quality voice for a complete LAN, WAN, and Gateway solution.

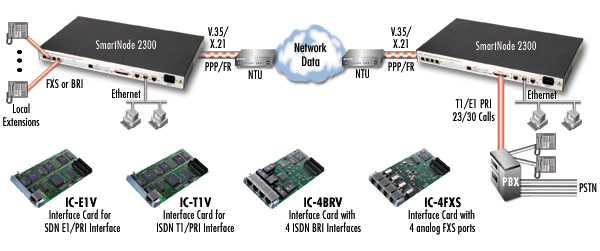

Configuration Example: Office IP & Voice Access
The SmartNode 2300 Modular VoIP Access Router is an intelligent multi-service network-access device providing both routed LAN services and voice-over capabilities.

With its internal router and V.35/X.21 port, remote or local sites can access public IP services or private data VPNs without the added cost of a router.

Adding voice-over capabilities is a snap using any combination of field-installable voice and data modules. Now any site can connect any phone to VoIP with BRI, T1/E1 PRI, or FXS.

  • VoIP Gateway Router with dual Ethernet
  • 3 Expansion slots for ISDN BRI, T1, E1, and FXS interface cards for voice processing features
  • V.35/X.21 serial interface
  • LAN-to-LAN connectivity
  • Voice VPNs
  • Real-time quality of service (TOS, Diffserv, and IEEE 802.1p/Q)
  • On-board DSP support multiple voice codecs
  • G.711 A-Law/µ-Law; G.723.1; G.729A; Transparent
  • H.323v4; SIPv2; MGCP/IUA
  • Simultaneous compresses ISDN voice calls over the same IP link
  • Static firewall with NAPT and Access Control Lists
  • Industry Standard CLI, SNMP, TFTP configuration and software upgradeable
  • EMC & CE compliant
  • 1-year warranty
  • Optional Upgrade: 2-5 year Warranty
  • Optional Upgrade: 1-5 year Enhanced Warranty (includes free Advance Replacements)


Ordering information for this product is not publicly available at this time.
Please accept our apology as we regret any inconvenience to you.

For more information
about the availability of this product and/or alternative solutions,
please contact Patton's Product Management team at or +1 301 975 1000
