Session Border Controller for 4-to-60 Sessions w/ Router & EFM WAN

Overview

Patton’s SmartNode 5300 eSBC is a CPE based Enterprise Session Border Controller, delivering the features you need for advanced multiservice voice and data network applications. It combines highly flexible SIP routing and manipulation features with powerful quality of service IP routing functions to build professional and reliable VoIP and data networks.

The SN5300 enables Universal SIP Trunking and provides a single Integrated Access Device with features like IP Routing, VoIP and IP Security and a SIP registrar for survivability. The SN5300 connects to the IP-PBX or UC system in the Enterprise’s LAN and to an Internet telephony service provider (ITSP), creating a single conduit for multimedia components including voice, video, and data. Whether it is a new installation or an existing deployment, this device will aid you in, deploying, troubleshooting, logging, and security while increasing the flexibility of your network.

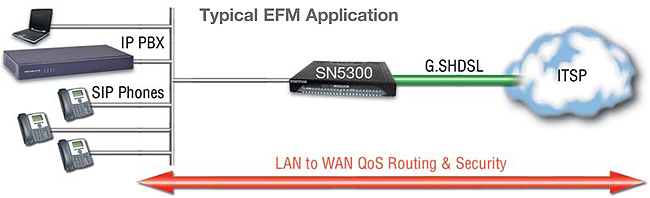

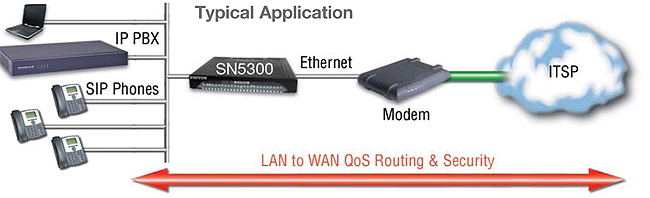

Applications
The SN5300 enables protocol conversion between two networks to solve interop problems for devices using SIP TCP signaling only. The SmartNode is able to convert SIP TCP or SIP TLS signaling into SIP UDP signaling.

Using the built-in QoS engine, the SmartNode ensures that voice traffic gets top priority resulting in good voice quality across the SIP Trunk over a public network.

Features

IP Routing —Policy Based Routing, Protocol Based Routing, Packet Length Routing, Packet Filtering
QoS and Security—Deliver secure, toll-quality voice communications with Patton’s UpStreamQoS with adaptive traffic management and shaping as well as policy based routing and extended ACL capabilities.
SIP Registrar - License is included in ALL eSBC products.
Ethernet— Intelligent 4 port Fast Ethernet BaseT 10/100 (routable and switchable)
WAN Access—Support for G.SHDSL EFM/ATM 4-wire and 8-wire interfaces
Access link redundancy —Through USB port, using 3G/4G Cellular Modem module
Trinity OS—Patton's Linux based multi-service OS with call-control and signaling features
Flexible mounting options—Desktop and integrated wall-mount options in a compact modern enclosure
Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
Why SmartNode™?

Patton Quality
Made in the USA
Unrivaled Customer Support
FREE Support and Upgrades

Ordering

All SN5300 models include the following Software Feature Licenses:

SIP Registrar

IP Routing

SIP TLS

Please make sure you order the right amount of SIP sessions to come with the units. See optional sessions that can be loaded upon ordering.

Product Change Notice:
Due to the fast evolvement of VoIP, routing, and SBC functionalities being developed by Patton for the SmartNode product line, more and more system memory is being used. To cope with the increased memory needs, accommodating features being made available in the future, a bigger memory Flash chip is being added to all the products mentioned below.
See the Product Change Notice for more details.

Model #

Description

Availability

SN5301/4B/EUI

SmartNode eSBC, 4 SIP Sessions no RTP transcoding (SIP b2b UA) upgradeable (max. 60), 4x Fast Ethernet, external UI power NA/EU (100–240)

General Availability

Accessories

Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
SVC-INTEG-MST (Qty: 1)	Professional Services for up to 3hrs of MS Teams integrations support
Power Plugs & Cords
12000186 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
Power Supply
080511-06 (Qty: 1)	Power Supply - SmartNode
Rack
1001MP/2MPE	19 inch Rack mount kit, holding 1 or 2 Patton devices in medium plastic enclosure (E.g. SN553X/2-4BIS, SN4131X/2-4BIS, SN554X non WAN, SN414X, SN415X/2BIS2JS, SN5501, SN5571 non WAN, SN417X, OS3300, etc.)
Software License
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-BAL-FO	License enabling Balancing and Failover support on all Trinity devices
TSW-CELLMODEM	License enabling USB Cell Modem support on all Trinity devices with embedded USB port
TSW-MST	Permanent License for Microsoft Teams activation (includes Teams Activation, TLS, unlimited SRTP and Silk passthrough)
TSW-SRTP-CHAN1	SRTP Channel license (For one SIP-SIP call using SRTP. Supported on SN55xx, SN41xx, SN474x, SM56xx, vSN)
TSW-VPN1	VPN License for SN5300, SN5530/40/50, OS3300, and CL2300 Trinity devices on software ver 3.8 or above

SN5301/4B2G/EUI

SmartNode eSBC, 4 SIP Sessions no RTP transcoding (SIP b2b UA) upgradeable (max. 60), 4x Fast Ethernet, 4-Wire G.SHDSL-ATM/EFM WAN, external UI power NA/EU (100–240)

General Availability

Accessories

Power Plugs & Cords
0805IN (Qty: 1)	India/South Africa Power Cord (G)
Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
Power Plugs & Cords
12000186 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
Power Supply
080511-06 (Qty: 1)	Power Supply - SmartNode
Rack
1001MP/2MPE	19 inch Rack mount kit, holding 1 or 2 Patton devices in medium plastic enclosure (E.g. SN553X/2-4BIS, SN4131X/2-4BIS, SN554X non WAN, SN414X, SN415X/2BIS2JS, SN5501, SN5571 non WAN, SN417X, OS3300, etc.)
Software License
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-BAL-FO	License enabling Balancing and Failover support on all Trinity devices
TSW-CELLMODEM	License enabling USB Cell Modem support on all Trinity devices with embedded USB port
TSW-SRTP-CHAN1	SRTP Channel license (For one SIP-SIP call using SRTP. Supported on SN55xx, SN41xx, SN474x, SM56xx, vSN)
TSW-VPN1	VPN License for SN5300, SN5530/40/50, OS3300, and CL2300 Trinity devices on software ver 3.8 or above

SN5301/4B4G/EUI

SmartNode eSBC, 4 SIP Sessions no RTP transcoding (SIP b2b UA) upgradeable (max. 60), 4x Fast Ethernet, 8-Wire G.SHDSL-ATM/EFM WAN, external UI power NA/EU (100–240)

General Availability

Accessories

Power Plugs & Cords
0805IN (Qty: 1)	India/South Africa Power Cord (G)
Additional Charge:
Misc
INS-KIT-1 (Qty: 1)	Conosle EIA-561 RJ45 to DB9 Adapter with 4 foot straight through CAT6 cable
Power Plugs & Cords
12000186 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW, US
12000187 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,EU
12000188 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,UK
12000189 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,AUS
12000239 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,CHINA
12000240 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,ARGEN
12000241 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,KOREA
12000242 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,INDIA,SA
12000243 (Qty: 1)	CON,POWER,PLUG,MEGA MJSW,BRAZIL
Power Supply
080511-06 (Qty: 1)	Power Supply - SmartNode
Rack
1001MP/2MPE	19 inch Rack mount kit, holding 1 or 2 Patton devices in medium plastic enclosure (E.g. SN553X/2-4BIS, SN4131X/2-4BIS, SN554X non WAN, SN414X, SN415X/2BIS2JS, SN5501, SN5571 non WAN, SN417X, OS3300, etc.)
Software License
SNSW-1B	SmartNode License for 1 additional SIP Call (SIP back-to-back calls using 2 SIP Legs)
TSW-BAL-FO	License enabling Balancing and Failover support on all Trinity devices
TSW-CELLMODEM	License enabling USB Cell Modem support on all Trinity devices with embedded USB port
TSW-SRTP-CHAN1	SRTP Channel license (For one SIP-SIP call using SRTP. Supported on SN55xx, SN41xx, SN474x, SM56xx, vSN)
TSW-VPN1	VPN License for SN5300, SN5530/40/50, OS3300, and CL2300 Trinity devices on software ver 3.8 or above
