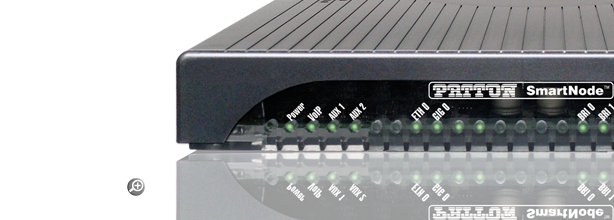

SmartNode 4130 2/4/8-Port BRI VoIP Gateway

With up to 8 BRI ports and 16 simultaneous G.711 voice channels, the SN4130 is the best way to connect ISDN networks or ISDN terminal equipment to the world of voice over IP. With built-in security features such as HTTPS provisioning, Stateful Firewall and optional SIP-TLS** it provides business-class Internet telephony for demanding ISDN users.

Contact Us
Direct: +1 301 975 1000
Direct: +1 301 975 1007
Have Us Contact You
 Connect with us
Twitter Linkedin Facebook Youtube

View All







  • 2/4/8 Ports Quality ISDN VoIP—2, 4 or 8 ISDN BRI S0 ports. Up to 10 G.722 or up to 16 T.38 or G.711 calls simultaneously. Using SRTP, up to 10 simultaneous calls.
  • Full Telephony Features—SessionRouter™ allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, 3-way conferencing (Roadmap) and much more.
  • Management & Provisioning— Web-based management, WEB Wizard, SNMPv3, command line interface, auto-provisioning separate config domain support, secure provisioning for configuration and software upgrades.
  • Network Connectivity—One 10/100/1000 Ethernet port with auto MDI-X.Ethernet. Supports VLAN, TOS and Diffserv tagging. Basic IPv6 support.
  • Full VoIP protocol support—SIPv2, SIP v2 over TLS, ISDN, DSS1, QSIG**, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
  • Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and Asterisk™ IP-PBX.
  • High Precision Clock (HP)*** Option—DECT PBX interoperability and improved fax performance with Stratum 3 CO quality clock.
  • Supported by SmartNode™ Redirection ServiceA free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivalled Customer Support
    • FREE Support and Upgrades
The SmartNode 4130 series are the next-generation ISDN BRI models of the proven market-leading SmartNode VoIP product family. The available 2, 4 or 8-port configurations fit the requirements of small and medium-sized enterprises looking for a cost-effective way to bridge PBX systems on multiple sites orconnect them to a public Internet telephony service.

By connecting a PSTN line and an ISDN PBX to the SmartNode, it is secured against SIP trunk outages (fallback routing). If available, the PSTN line can alsosynchronize the gateway. For applications without a PSTN line available, the optional ISDN HP (high precision clock) provides error-free ISDN data and faxtransmissions.

Like every Trinity SmartNode, the SN4130 comes with a built-in WEB Wizard for fast and easy configuration. You can build your own Web interface usingthe WEB Wizard functionalities.

Network Integration

The SmartNode 4130 provides excellent VoIP and security features for seamless network integration. All BRI ports are configurable to be TE or NT, you can thus connect your telco line(s) as well as a PBX or ISDN terminals.

Terminals are powered with the built-in power supply, eliminating the need for an external box. For business-class IP telephony at the tips of your fingers, the SmartNode 4130 is more than just talk!

SmartNode 4130

# Model # Description Availability
1 SN4131/2BIS4V/EUI SmartNode VoIP GW, 2 BRI TE/NT, 4 VoIP Calls, 4 SIP Sessions (SIP b2b UA)upgradeable (max. 256), Optional SIP-TLS, SRTP, 1x Gig Ethernet, 1x USB port, external UI power (100240 VAC) NA/EU General Availability
2 SN4131/2BIS4VHP/EUI SmartNode VoIP GW, 2 BRI TE/NT, 4 VoIP Calls, 4 SIP Sessions (SIP b2b UA) upgradeable (max. 256), Optional SIP-TLS, SRTP , 1x Gig Ethernet, 1x USB port, High Precision 5ppm Clock, external UI power (100240 VAC) NA/EU General Availability
3 SN4131/4BIS8V/EUI SmartNode VoIP GW, 4 BRI TE/NT, 8 VoIP Calls, 4 SIP Sessions (SIP b2b UA)upgradeable (max. 256), Optional SIP-TLS, SRTP, 1x Gig Ethernet, 1x USB port, external power (100240 VAC) NA/EU General Availability
4 SN4131/4BIS8VHP/EUI SmartNode ISDN BRI VoIP Gateway, 4 BRI TE/NT, 8 voice/fax calls, Optional TLS - SRTP (See SNSW-SIP-TLS), High Precision Clock, 1x Gig Ethernet, external UI power NA/EU (100240 VAC) General Availability
5 SN4131/8BIS16VHP/EUI SmartNode VoIP GW, 8 BRI TE/NT, 16 VoIP Calls, 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 192), Optional SIP-TLS, SRTP , 1x Gig Ethernet, 1x USB port, High Precision 5ppm Clock, external UI power (100240 VAC) NA/EU Available to Order; Coming Soon
